ELECTRICAL

SV650S 1999 (X) USA (E03)

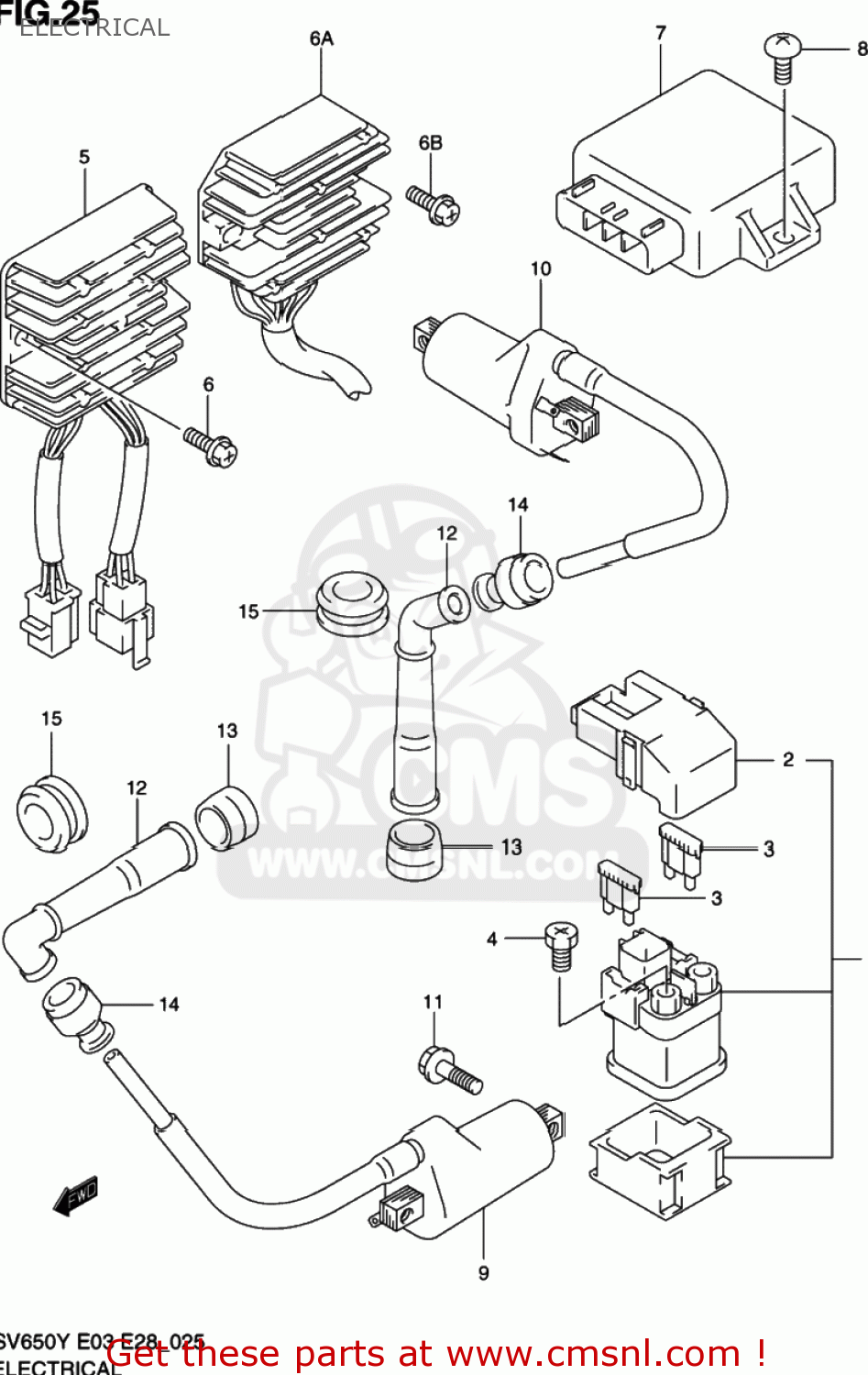

Electrical diagram SV650S 1999 (X) USA (E03)

ELECTRICAL SV650S 1999 (X) USA (E03)
ELECTRICAL SV650S 1999 (X) USA (E03)
ELECTRICAL SV650S 1999 (X) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3180021E20
ref: 1
RELAY ASSY,STARTING MOTOR
3180021E20
€ 69.00
2
3186121E20
ref: 2
31861-47E00
COVER,RELAY ASSEMBLY
3186121E20
€ 10.50
3
0948130101
ref: 3
FUSE(30A)
0948130101
€ 6.00
4
0912806013
ref: 4
SCREW(6X8)
0912806013
€ 1.50
5
3280024B01
ref: 5
32800-24B11
RECTIFIER ASSEMBLY
€ 243.50
6
0216206163
ref: 6
02162-0616B
SCREW
0216206163
€ 2.50
6A
3280014F00
ref: 6A
32800-14F01
RECTIFIER ASSY
3280014F00
€ 287.00
6B
0216206203
ref: 6B
02162-0620C
BOLT
0216206203
€ 2.00
7
3290020F10
ref: 7
IGNITOR ASSY
€ 0.00
8
0354206163
ref: 8
03541-0616A
SCREW
0354206163
€ 2.00
9
3341019F00
ref: 9
COIL ASSY,IGNITION(L:240)
3341019F00
€ 172.00
10
3342019F00
ref: 10
COIL ASSY,IGNITION(L:420)
3342019F00
€ 146.00
11
0150006203
ref: 11
01500-0620A
BOLT
0150006203
€ 2.00
12
3351011D00
ref: 12
CAP,SPARK PLUG
3351011D00
€ 38.00
13
3354123E01
ref: 13
SEAL,SPARK PLUG CAP
3354123E01
€ 7.00
14
3354238B00
ref: 14
SEAL,HIGH TENSION CORD
3354238B00
€ 4.50
15
3354319F00
ref: 15
33543-19F01
COVER,SPARK PLUG CAP
€ 8.00
