MUFFLER
SV650S 2000 (Y) USA (E03)

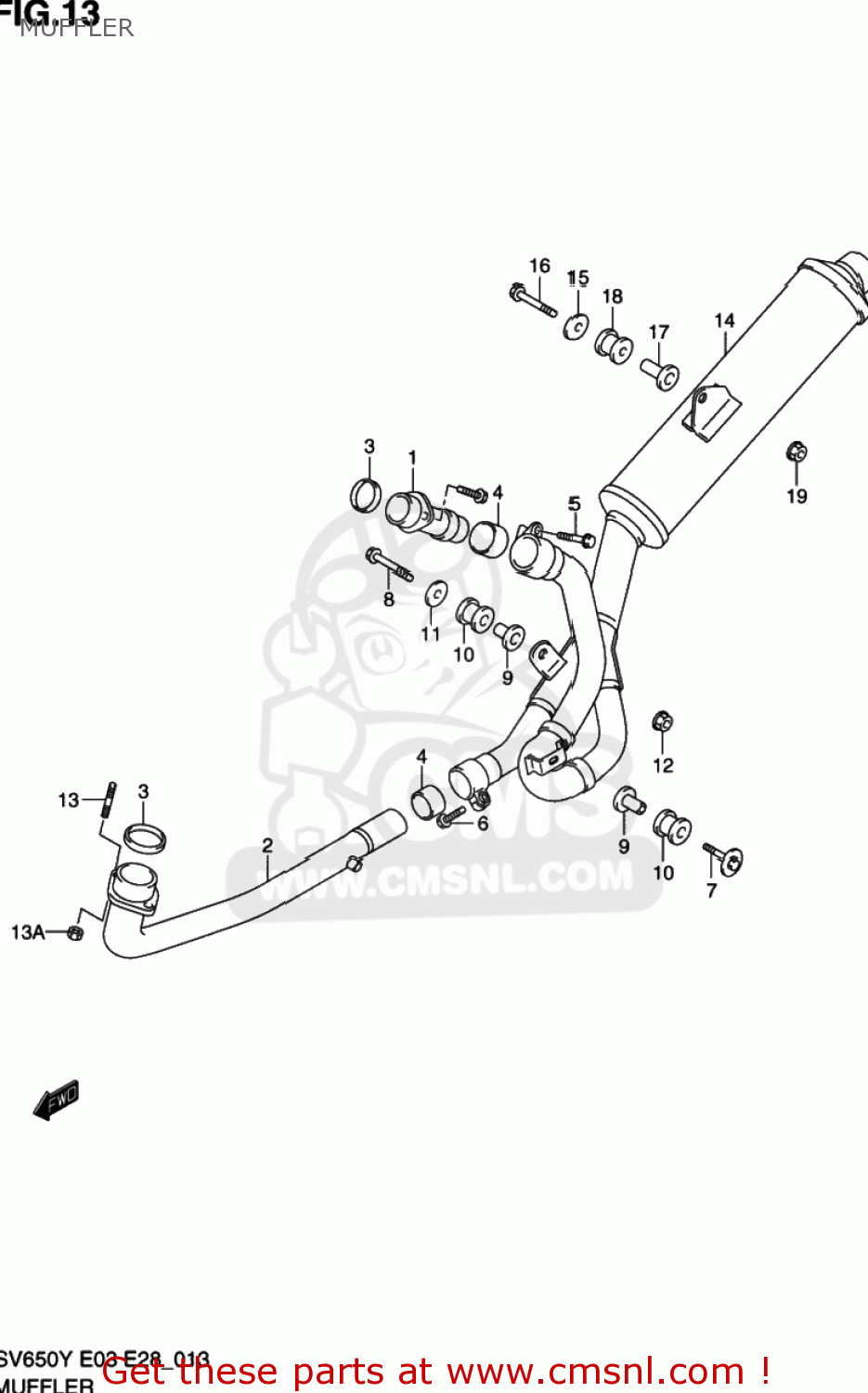

Muffler diagram SV650S 2000 (Y) USA (E03)
MUFFLER SV650S 2000 (Y) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1415019F00
ref: 1
PIPE,EXHAUST RR
€ 75.00
2
1416019F10
ref: 2
PIPE,EXHAUST FR
€ 152.50
3
1418122D01
ref: 3
GASKET,EXHAUST PIPE (NAS)
€ 9.00
4
1477132E00
ref: 4
CONNECTOR,MUFFLER
€ 12.50
5
0712008403
ref: 5
07120-0840A
BOLT
€ 3.50
6
0712008403
ref: 6
07120-0840A
BOLT
€ 3.50
7
0911808068
ref: 7
09118-08145
BOLT 8X40
€ 7.50
8
0155008457
ref: 8
BOLT
€ 4.00
9
0918008152
ref: 9
SPACER(8.6X12X24.2)
€ 6.00
10
0932012048
ref: 10
CUSHION
€ 5.00
11-1
0916008138
ref: 11-1
09160-08503
WASHER (8.5X30X2.3)
€ 2.00
11-2
0916008140
ref: 11-2
09160-08146
WASHER (8.5X33X1.6)
€ 3.00
12
0836125088
ref: 12
08361-2508A
NUT
€ 2.50
13
0142108253
ref: 13
01421-0825A
STUD 8X25
€ 2.50
13A
0831931087
ref: 13A
NUT
€ 2.50
14
1430519F11H01
ref: 14
14305-19F12-H01
MUFFLER COMP
€ 995.00
15
0916008140
ref: 15
09160-08146
WASHER (8.5X33X1.6)
€ 3.00
16
0155008457
ref: 16
BOLT
€ 4.00
17
0918008156
ref: 17
SPACER(8.6X12X27.1)
€ 6.50
18
0932012049
ref: 18
CUSHION
€ 9.00
19
0836125088
ref: 19
08361-2508A
NUT
€ 2.50
