KICK STARTER

T250IIR 1972 (J) USA (E03)

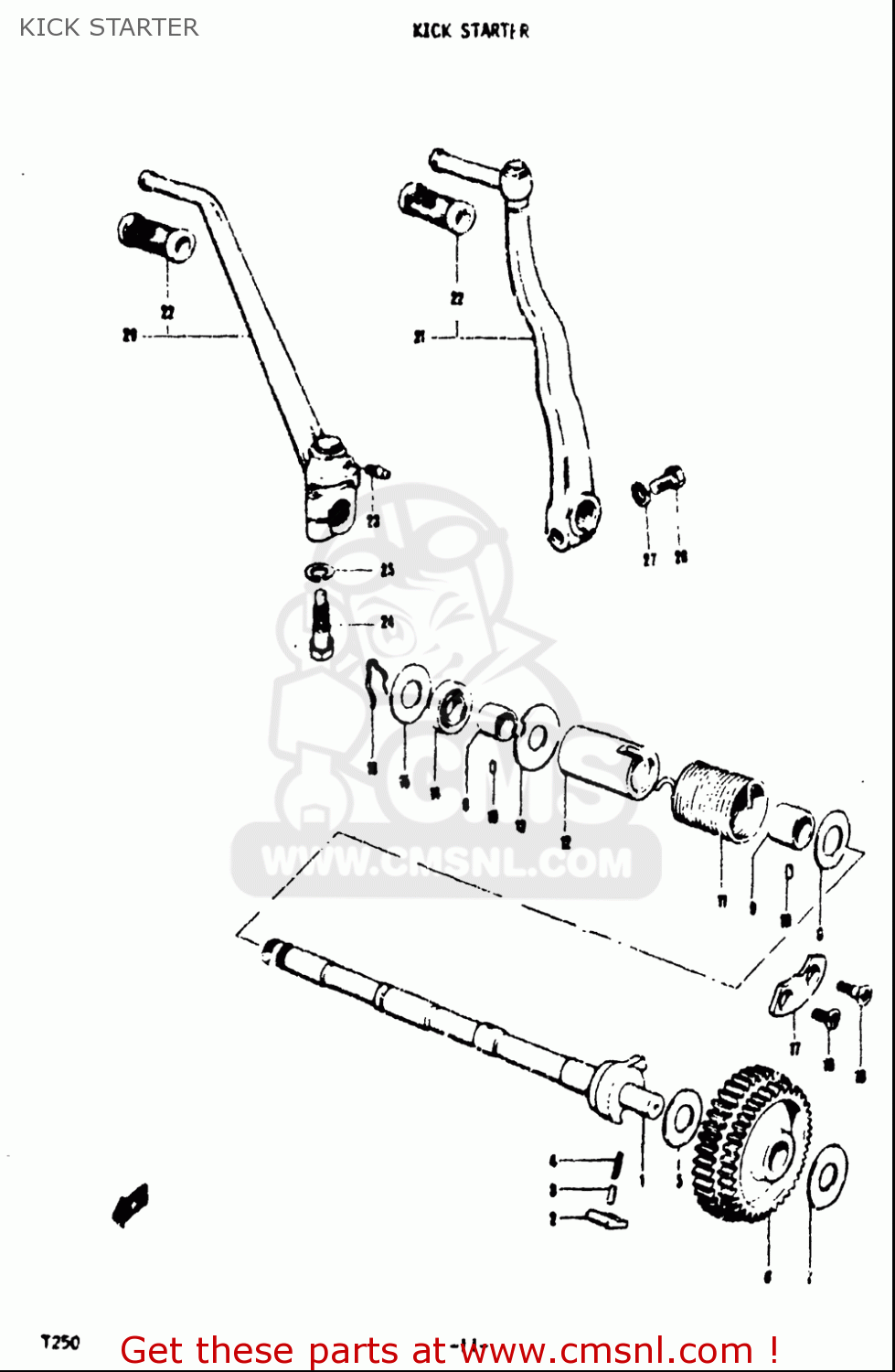

Kick starter diagram T250IIR 1972 (J) USA (E03)

KICK STARTER T250IIR 1972 (J) USA (E03)

KICK STARTER T250IIR 1972 (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

3

0920905011
ref: 3

PIN(5X15.5)

€ 2.00

4

0944004010
ref: 4

SPRING

€ 1.50

5

0916013002
ref: 5

WASHER(13X31.5X1.5)

€ 3.00

7

0916013002
ref: 7

WASHER(13X31.5X1.5)

€ 3.00

8

0916016003
ref: 8

WASHER(16X30X1)

€ 2.50

10

0422104069
ref: 10

PIN

€ 2.00

11

0944837001
ref: 11

SPRING

€ 16.50

18

0913906002
ref: 18

SCREW(6X19)

€ 2.50

19

0212206167
ref: 19

SCREW

€ 2.00

22

2635201000
ref: 22

RUBBER,KICK STARTER PEDAL

€ 3.50

23

0835111009
ref: 23

NIPPLE

€ 32.00

24

0913510002
ref: 24

BOLT(10X37.5)

€ 5.50

25

0832101107
ref: 25

WASHER,LOCK

€ 2.00

26

0150008257
ref: 26

BOLT

€ 2.50

27

0832101087
ref: 27

WASHER,LOCK

€ 2.00
