CARBURETOR

T500 1971 1972 1973 1974 1975 (R) (J) (K) (L) (M) USA (E03)

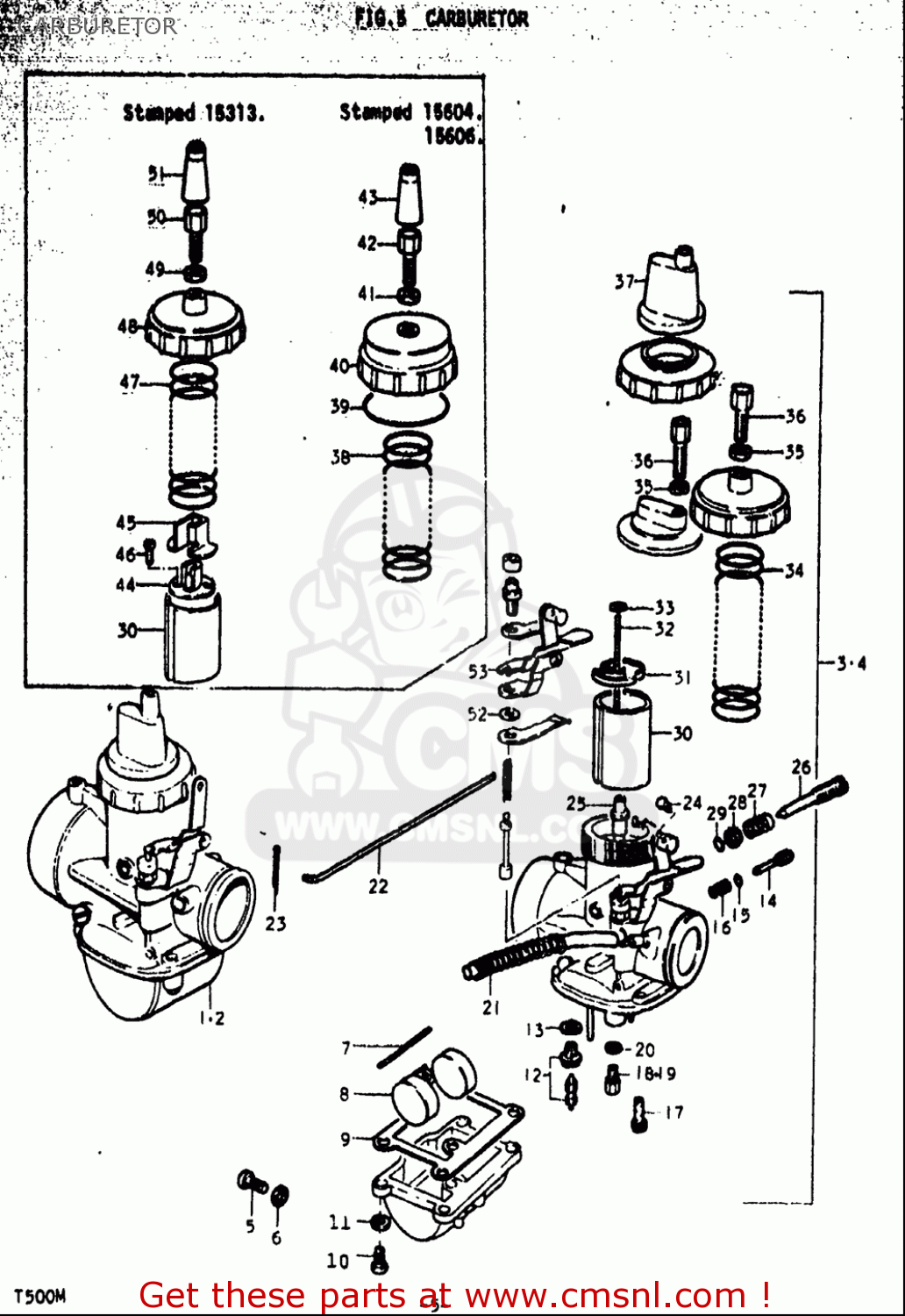

Carburetor diagram T500 1971 1972 1973 1974 1975 (R) (J) (K) (L) (M) USA (E03)

CARBURETOR T500 1971 1972 1973 1974 1975 (R) (J) (K) (L) (M) USA (E03)
CARBURETOR T500 1971 1972 1973 1974 1975 (R) (J) (K) (L) (M) USA (E03)
CARBURETOR T500 1971 1972 1973 1974 1975 (R) (J) (K) (L) (M) USA (E03)
prices are in EUR
ref
part #
description
quantity
5
1324705010
ref: 5
PLUG
1324705010
€ 6.00
6
1324905010
ref: 6
GASKET,DRAIN,PLUG (NAS)
1324905010
€ 1.50
7
1325401010
ref: 7
PIN,FLOAT
1325401010
€ 3.00
8
1325218010
ref: 8
FLOAT
1325218010
€ 28.50
9
1325133110
ref: 9
GASKET,FLOAT CAHMBER (NAS)
1325133110
€ 10.50
10
0211204163
ref: 10
SCREW 4X16
0211204163
€ 1.00
11
0832101043
ref: 11
WASHER,LOCK
0832101043
€ 2.00
12
1337041500
ref: 12
VALVE ASSY,NEEDLE
1337041500
€ 61.50
13-1
1339216600
ref: 13-1
GASKET,MAIN JET HOLDER (NAS)
1339216600
€ 3.00
13-2
1339216600
ref: 13-2
GASKET,MAIN JET HOLDER (NAS)
1339216600
€ 3.00
14-1
1326915010
ref: 14-1
SCREW,PILOT AIR
1326915010
€ 10.50
14-2
1326915011
ref: 14-2
SCREW,PILOT AIR ADJUSTING
1326915011
€ 12.50
15
1329533010
ref: 15
O RING
1329533010
€ 4.50
16
1326801010
ref: 16
SPRING
1326801010
€ 3.50
17
0949230006
ref: 17
JET,PILOT(30)
0949230006
€ 8.50
18-1
0949130016
ref: 18-1
JET,MAIN(150)
0949130016
€ 14.00
18-3
0949129001
ref: 18-3
JET,MAIN (145)
0949129001
€ 10.50
19-1
0949197003
ref: 19-1
JET,MAIN(97.5)
0949197003
€ 8.50
19-2
0949192004
ref: 19-2
JET,MAIN(92.5)
0949192004
€ 8.50
19-3
0949195005
ref: 19-3
JET,MAIN(95)
0949195005
€ 8.50
19-4
0949120017
ref: 19-4
JET,MAIN
0949120017
€ 10.50
19-5
0949120012
ref: 19-5
JET,MAIN(102.5)
0949120012
€ 8.50
19-6
0949130017
ref: 19-6
JET,MAIN(150)
0949130017
€ 12.00
20
1338203110
ref: 20
WASHER
1338203110
€ 2.50
21-2
0935545855600
ref: 21-2
HOSE(4.5X8.5X600)
0935545855600
€ 14.00
22
1342515010
ref: 22
ROD,STARTER LEVER
€ 11.50
23
0411112108
ref: 23
PIN 12X10
0411112108
€ 2.00
24
1342915010
ref: 24
BOLT, STARTER ROD
€ 3.00
26-1
1326740230
ref: 26-1
SCREW,THROTTLE STOP
1326740230
€ 7.50
27-1
1326803110
ref: 27-1
SPRING,THROTTLE SCREW
1326803110
€ 3.50
27-2
1326831011
ref: 27-2
SPRING,THROTTLE STOP
1326831011
€ 7.50
28
1329134010
ref: 28
COVER
1329134010
€ 5.50
29
1327802340
ref: 29
O RING
1327802340
€ 1.50
33
1339410010
ref: 33
CLIP
1339410010
€ 4.50
35
1366103010
ref: 35
NUT
1366103010
€ 3.50
36
1357748110
ref: 36
ADJUSTER,CABLE
1357748110
€ 8.00
44
1358140200
ref: 44
CONNECTOR
1358140200
€ 7.00
46
0211233083
ref: 46
SCREW
€ 2.00
49
1366116600
ref: 49
NUT
1366116600
€ 5.00
50
1357715010
ref: 50
ADJUSTER,CABLE
1357715010
€ 4.00
51
1368133010
ref: 51
CAP,CABLE ADJUSTER
1368133010
€ 8.00
52
0928008014
ref: 52
O RING(D:1.5,ID:8.5)
0928008014
€ 3.00
