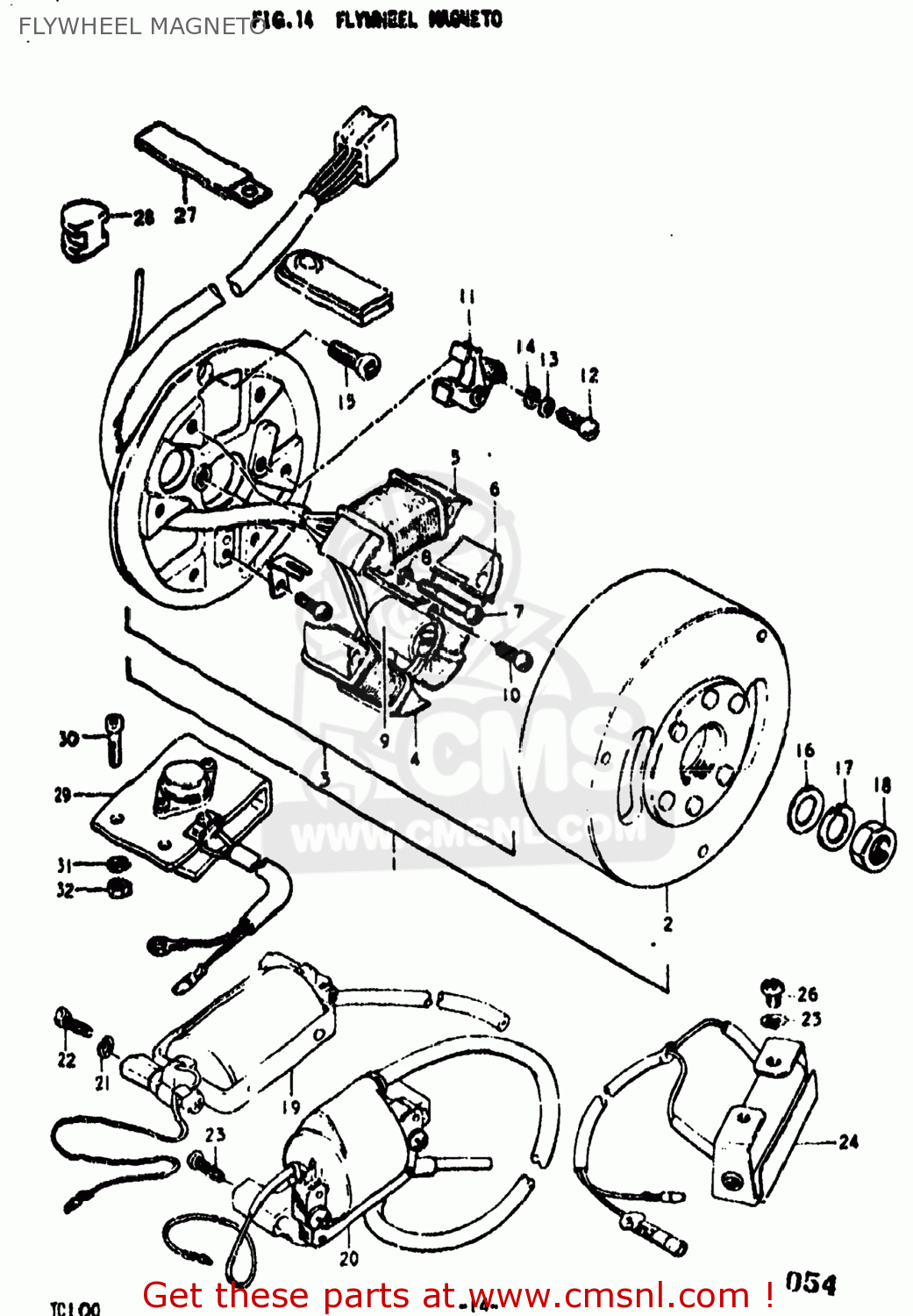

FLYWHEEL MAGNETO

ref

part #

description

quantity

1-1

3210025611
ref: 1-1

MAGNETO ASSEMBLY

€ 77.00

1-2

3210025612
ref: 1-2
32101-25611

MAGNETO ASSEMBLY

€ 77.00

1-3

3210025613
ref: 1-3

MAGNETO ASSEMBLY

€ 0.00

2-1

3210225010
ref: 2-1

ROTOR ASSEMBLY

€ 62.50

2-2

3210225612
ref: 2-2

ROTOR ASSEMBLY

€ 62.50

2-3

3210225613
ref: 2-3

ROTOR ASSEMBLY

€ 0.00

3-1

3210125611
ref: 3-1

STATOR ASSEMBLY

€ 77.00

3-2

3210125612
ref: 3-2

STATOR ASSEMBLY

€ 58.00

4-1

3212025611
ref: 4-1

COIL,LIGHTING

€ 41.50

4-2

3212025612
ref: 4-2

COIL,LIGHTING

€ 11.50

5-1

3213025611
ref: 5-1

COIL,LIGHTING

€ 18.00

5-2

3213025612
ref: 5-2

COIL

€ 14.00

6-1

3214025611
ref: 6-1

COIL

€ 44.00

6-2

3214025612
ref: 6-2

COIL

€ 19.50

7

0211104258
ref: 7

SCREW

€ 2.00

8

0832121048
ref: 8
08321-0104A

LOCK WASHER

€ 2.00

9-1

3234112010
ref: 9-1
32341-12011

CONDENSER

€ 18.00

9-2

3234112011
ref: 9-2

CONDENSER

€ 18.00

10

0211104107
ref: 10
02112-04107

SCREW

€ 2.00

11

3224028010
ref: 11
32240-43012

POINT ASSEMBLY,CONTACT

€ 18.50

12

0231104108
ref: 12
02112-0410A

.SCREW

€ 1.00

13

0832121048
ref: 13
08321-0104A

LOCK WASHER

€ 2.00

14

0832221048
ref: 14
08322-01047

WASHER

€ 2.00

all assemblies
