SPEEDOMETER (TC100X)
TC100 1977 (B) USA (E03)

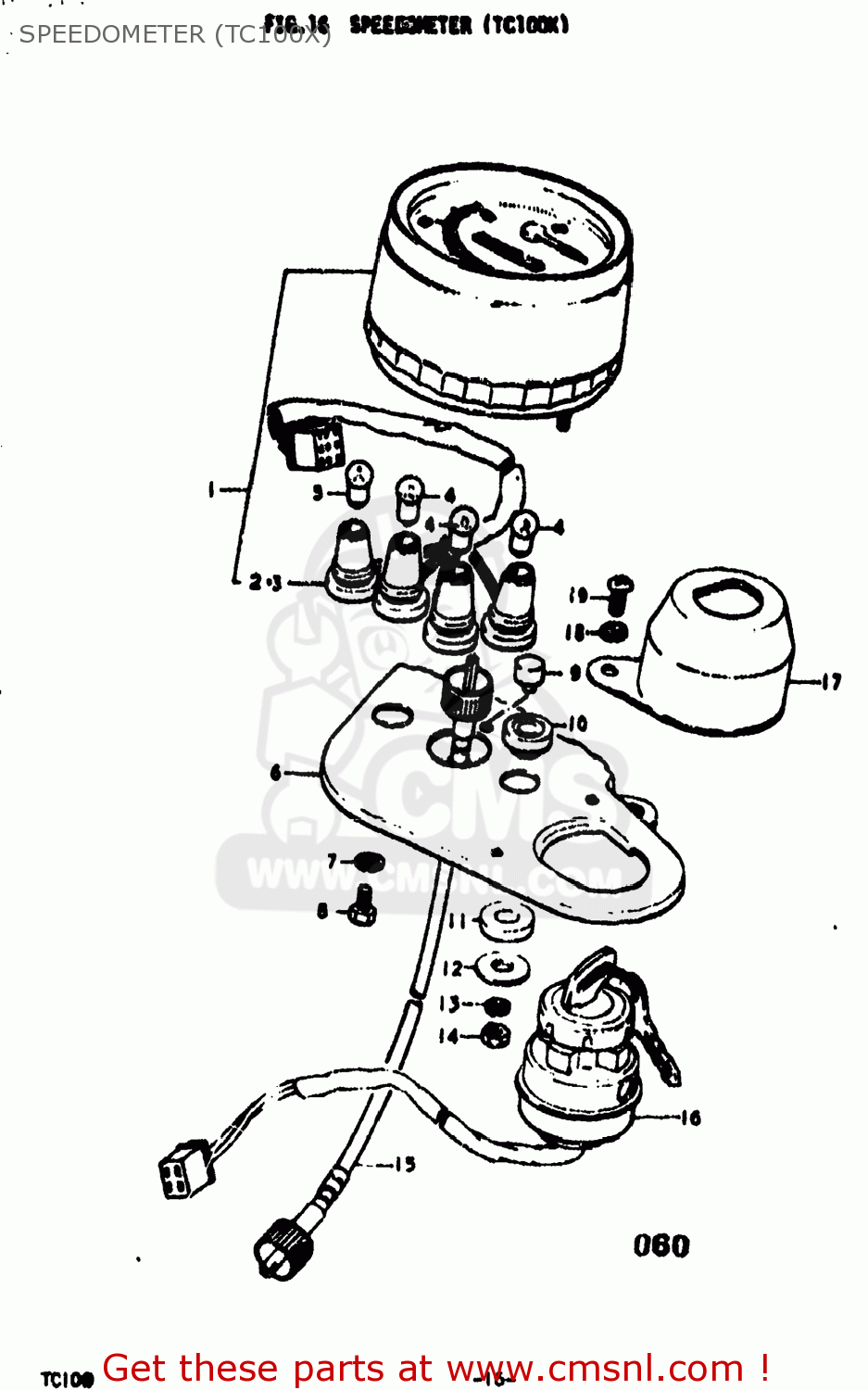

Speedometer (tc100x) diagram TC100 1977 (B) USA (E03)
SPEEDOMETER (TC100X) TC100 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3410025611999
ref: 1
SPEEDOMETER ASSEMBLY
€ 50.50
2
3417025620
ref: 2
SOCKET,METER
€ 0.00
3
3417025611
ref: 3
SOCKET,METER
€ 0.00
4
0947106002
ref: 4
BULB(6V/3W)
€ 2.50
5
0947106001
ref: 5
BULB(6V1.7W,STANLEY,A61A)
€ 2.50
6
3495025300
ref: 6
BRACKET,METER
€ 9.00
7
0832121068
ref: 7
08321-01067
LOCK WASHER
€ 2.50
8
0111206108
ref: 8
01500-06107
BOLT
€ 2.00
9
3495705100
ref: 9
CUSHION,METER
€ 2.50
10
3495520000
ref: 10
CUSHION,METER
€ 2.50
11
0932008004
ref: 11
09320-08010
CUSHION
€ 3.00
12
0916005024
ref: 12
WASHER(5.5X16X1.5)
€ 1.50
13
0832121058
ref: 13
08321-0105A
LOCK WASHER
€ 2.00
14
0831111058
ref: 14
08310-00057
NUT
€ 2.50
15
3491025230
ref: 15
34910-21230
CABLE ASSEMBLY,SPEEDOMETER
€ 44.00
16
3711025310
ref: 16
37110-25319
SWITCH ASSEMBLY,IGNITION
€ 60.00
17
3711525300
ref: 17
BRACKET,IGNITION SWITCH
€ 2.00
18
0832121058
ref: 18
08321-0105A
LOCK WASHER
€ 2.00
19
0211205107
ref: 19
SCREW
€ 2.00
