BRAKE PEDAL

TC185 1977 (B) USA (E03)

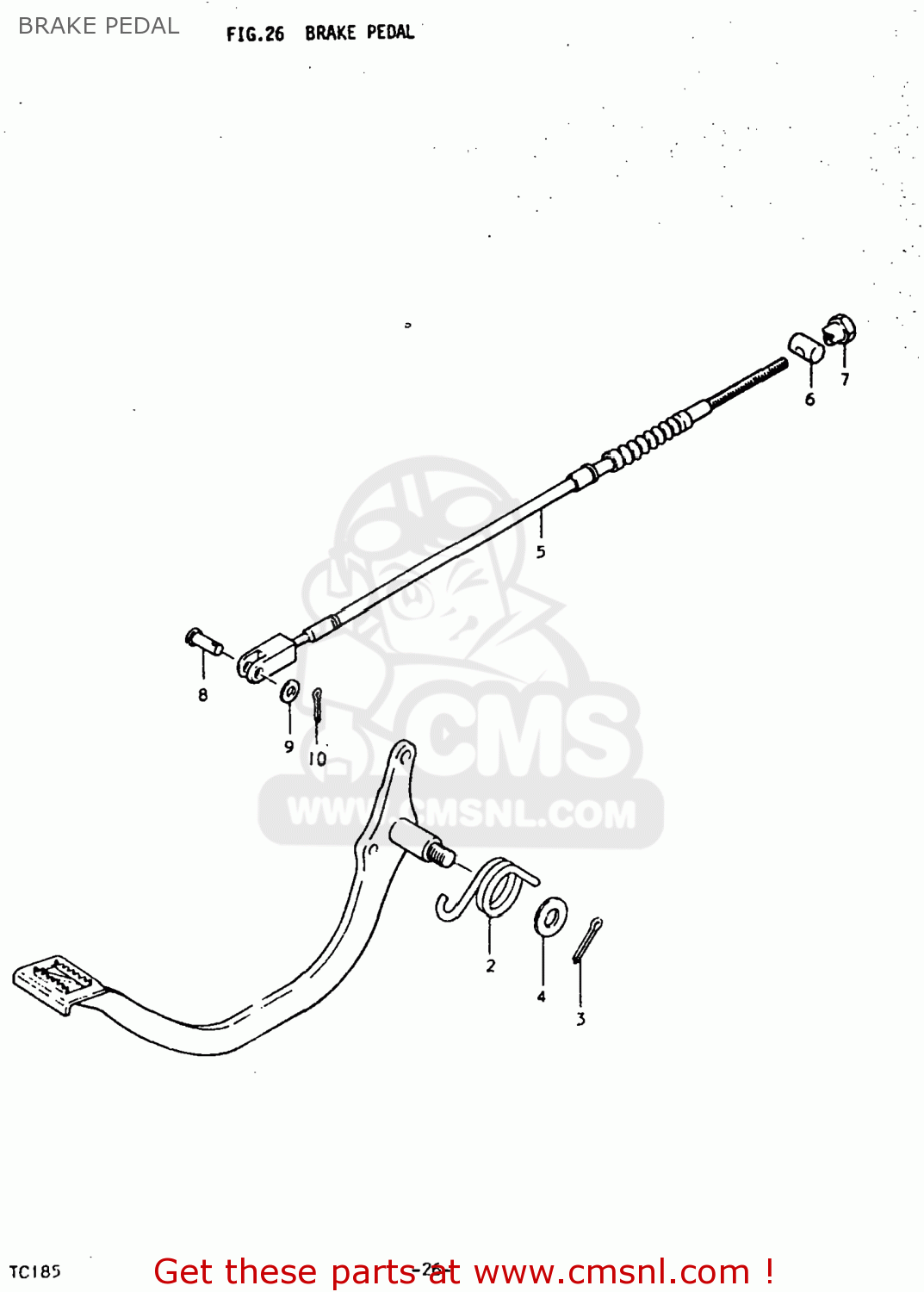

Brake pedal diagram TC185 1977 (B) USA (E03)

prices are in EUR

ref

part #

description

quantity

4311029100
ref: 1

PEDAL,BRAKE

€ 20.50

0944832004
ref: 2
09448-32004-XC0

SPRING

€ 4.50

0411130308
ref: 3
04111-3030A

COTTER PIN

€ 1.50

0916015002
ref: 4

WASHER(15.5X26X2.3)

€ 2.00

5851029000
ref: 5

CABLE,RR BRAKE

€ 34.50

0920911002
ref: 6

PIN(11X18)

€ 2.00

0915006001
ref: 7
09150-06010

NUT

€ 3.50

0920005001
ref: 8

PIN(L:17.5)

€ 1.50

0832221068
ref: 9
08322-01067

WASHER

€ 2.00

0411120158
ref: 10
04111-2015A

PIN

€ 1.50
