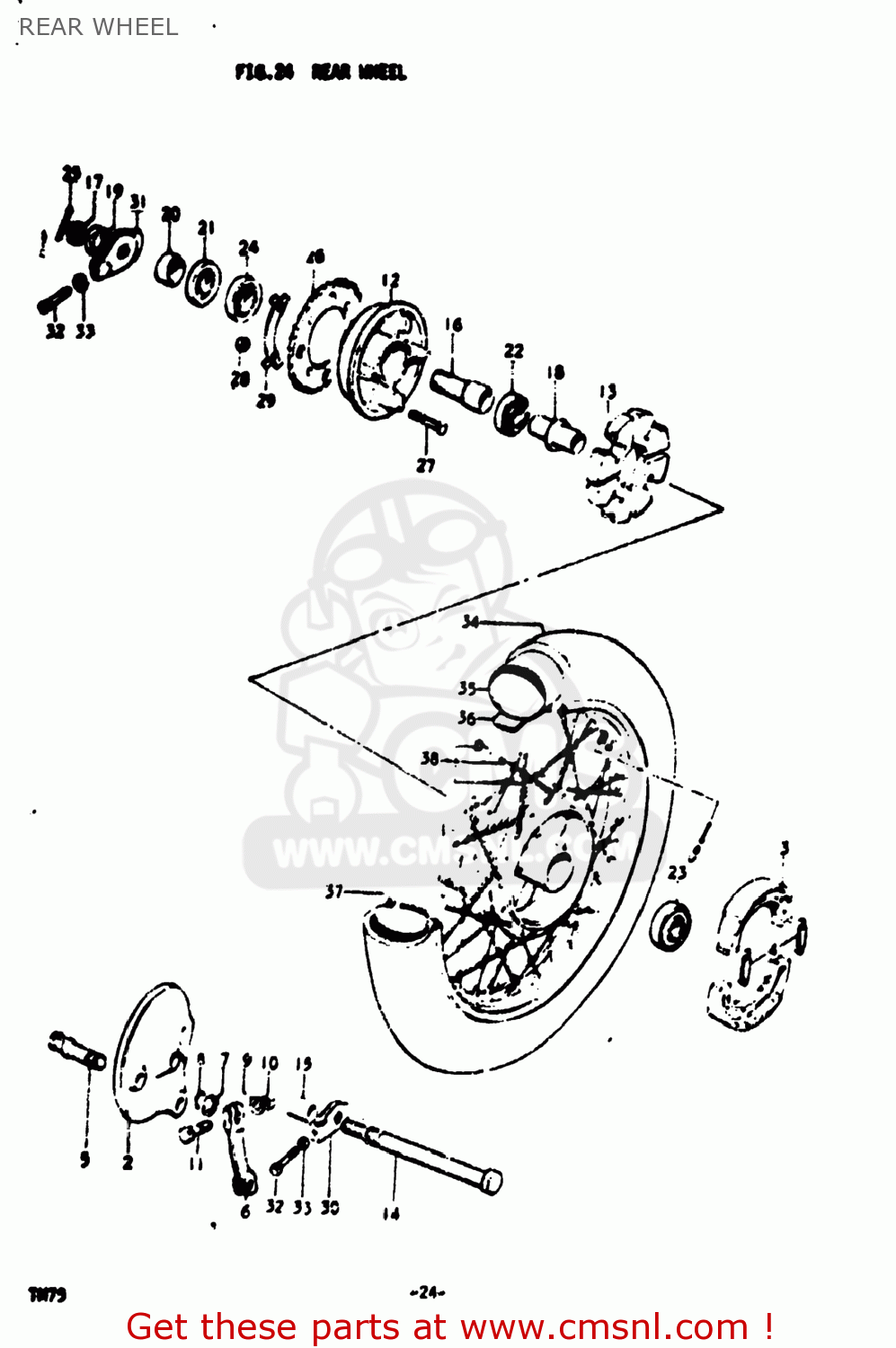

REAR WHEEL

ref

part #

description

quantity

1

6411026100
ref: 1

HUB,REAR

€ 36.00

2

6421026101
ref: 2

PANEL,REAR HUB

€ 27.00

3

5441001005
ref: 3
54400-35860

SHOE,BRAKE

€ 39.00

4

0944307001
ref: 4
09443-07025

SPRING(L:34)

€ 2.50

5-1

5444128001
ref: 5-1

CAM,FRONT BRAKE

€ 19.50

5-2

5444101002
ref: 5-2

CAM,FR BRAKE

€ 19.50

6

6445120000
ref: 6
64451-20001

LEVER,REAR BRAKE CAM

€ 11.00

7

0916012011
ref: 7

WASHER(12.5X20X1)

€ 1.50

8

0928012001
ref: 8

O RING(D:2.5,ID:11.4)

€ 2.50

9

0832221068
ref: 9
08322-01067

WASHER

€ 2.00

10

0831111068
ref: 10
08310-00067

NUT

€ 2.50

11

0910006050
ref: 11
09100-06150

BOLT

€ 1.50

12-1

6461126100
ref: 12-1

DRUM,REAR SPROCKET MOUNT

€ 56.50

12-2

6461126101
ref: 12-2
64611-01001

DRUM,REAR SPROCKET MOUNT

€ 56.50

13

6465101000
ref: 13
64651-010B1

CUSHION,REAR DRUM

€ 9.00

14

6471101603
ref: 14
64711-35400

AXLE,REAR

€ 27.00

15

0918012005
ref: 15

SPACER(12.2X22X30.5)

€ 6.50

16

6476101000
ref: 16

SHAFT,RR SPROCKET DRUM

€ 96.00

17

0831411108
ref: 17
08314-3110A

NUT

€ 1.50

18

6473001000
ref: 18

SPACER,REAR HUB BEARING

€ 7.00

19

0914016005
ref: 19

NUT

€ 4.50

20

0918017004
ref: 20

SPACER(17X25X10.5)

€ 4.00

21

0928525001
ref: 21
09285-25003

SEAL OIL(25X40X6)

€ 12.50

22

0814362010
ref: 22
08143-62017

BEARING, LH

€ 11.50

23

0814363010
ref: 23
08143-63017

BEARING, RH

€ 14.50

24

0811362030
ref: 24
09262-17023

BEARING

€ 14.00

25

0411120308
ref: 25
04111-2030A

COTTER PIN

€ 1.00

26-1

6451101789
ref: 26-1

SPROCKET,REAR

€ 37.00

26-2

6451101759
ref: 26-2
64511-09402

SPROCKET,REAR

€ 27.00

27

0910508001
ref: 27

BOLT(8X33.5)

€ 2.50

28-1

0831211088
ref: 28-1
08310-00087

NUT

€ 2.00

28-2

0914008010
ref: 28-2

NUT

€ 2.00

29

0916908011
ref: 29

WASHER

€ 2.50

30

6141026000
ref: 30

ADJUSTER,CHAIN,R

€ 41.50

31

6142026000
ref: 31

ADJUSTER,CHAIN,L

€ 37.50

32

0910406002
ref: 32

BOLT(6X38)

€ 2.00

33

0831111068
ref: 33
08310-00067

NUT

€ 2.50

34

6510026110
ref: 34

TIRE

€ 20.50

35

5520024010
ref: 35
65200-02B40

TUBE,INNER

€ 26.00

36

5526124010
ref: 36

PROTECTOR,INNER TUBE

€ 9.50

37

5531124020
ref: 37

RIM,FRONT WHEEL (1.40X14)

€ 73.00

38

6530024807
ref: 38
65320-20300

SPOKE SET,REAR

€ 50.00
