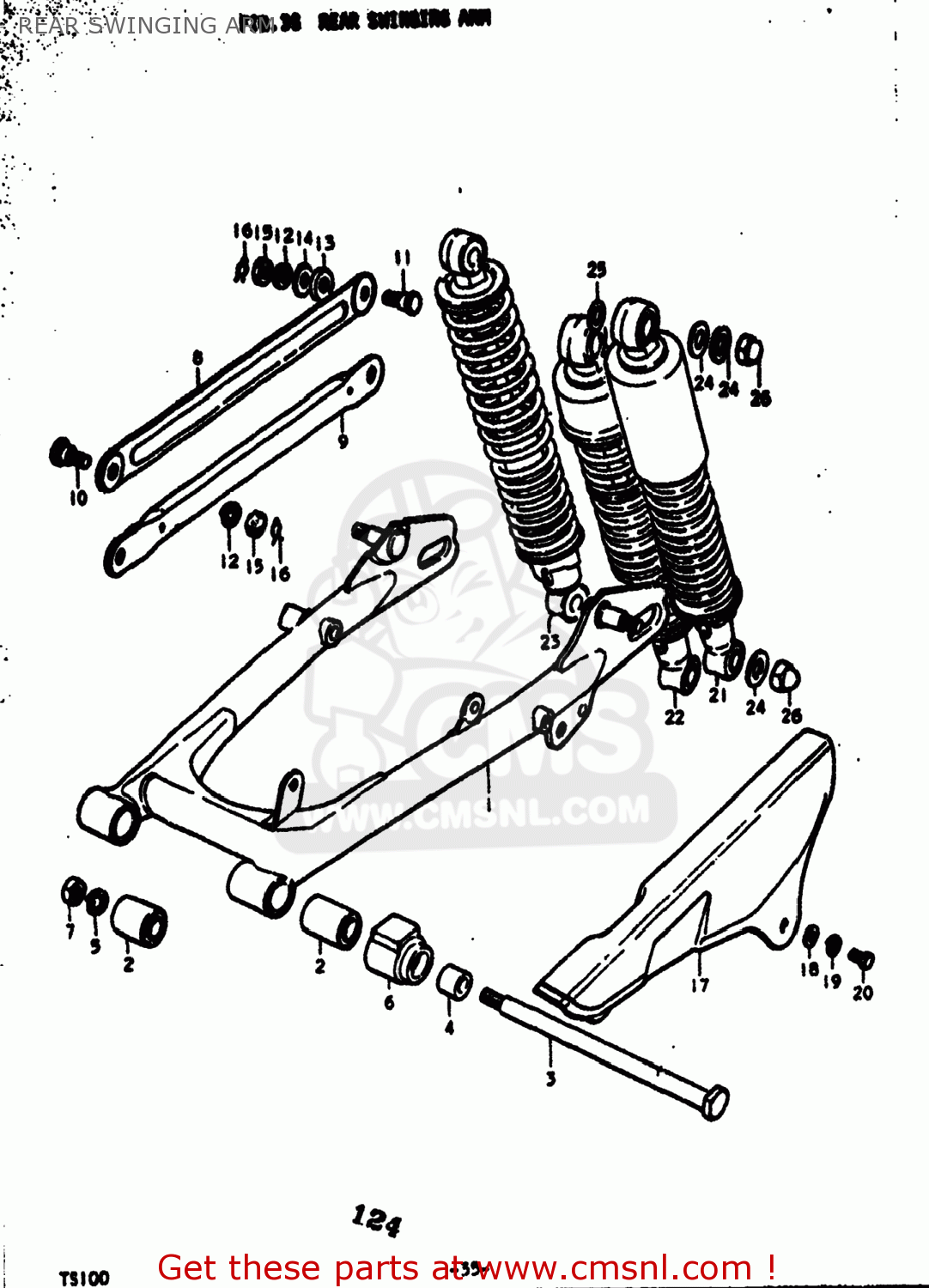

REAR SWINGING ARM

ref

part #

description

quantity

1-1

6110025833019
ref: 1-1

SWING ARM ASSEMBLY,REAR

€ 59.50

1-2

6110025850019
ref: 1-2
61100-25870-019

SWING ARM ASSEMBLY,REAR

€ 59.50

1-3

6110025870019
ref: 1-3

SWING ARM ASSEMBLY,REAR

€ 59.50

2

0931910009
ref: 2

BUSHING(10X23X35)

€ 7.50

3

6121125300
ref: 3

SHAFT, PIVOT

€ 6.00

4

0918010025
ref: 4

SPACER

€ 1.50

5

0832121108
ref: 5
08321-01107

LOCK WASHER

€ 2.00

6

6127325300
ref: 6

BUFFER,CHAIN TOUCH DEFLECTOR

€ 5.00

7

0831111108
ref: 7
08310-00107

NUT

€ 2.50

8-1

6431020100
ref: 8-1

TORQUE LINK,REAR

€ 10.50

8-2

6431025300
ref: 8-2

LINK,REAR TORQUE

€ 10.50

9

6431039000
ref: 9
64310-39000-019

TORQUE LINK, REAR

€ 13.50

10

0911108012
ref: 10

BOLT(8X22.5)

€ 3.00

11-1

0911108013
ref: 11-1

BOLT(8X26.5)

€ 3.00

11-2

0911108022
ref: 11-2

BOLT

€ 3.00

12

0832121088
ref: 12
08321-01087

LOCK WASHER

€ 2.00

12

0832121088
ref: 12
08321-01087

LOCK WASHER

€ 2.00

13

0916111002
ref: 13

WASHER

€ 2.50

14

0916008005
ref: 14
09160-08134

WASHER

€ 2.50

15

0914008008
ref: 15

NUT

€ 1.50

16

0938510001
ref: 16
09385-10005

CLIP

€ 1.50

17-1

6131025300126
ref: 17-1

CASE,CHAIN

€ 28.50

17-2

6131025301126
ref: 17-2

CASE,CHAIN

€ 28.50

18

0832221068
ref: 18
08322-01067

WASHER

€ 2.00

19

0832121068
ref: 19
08321-01067

LOCK WASHER

€ 2.50

20

0910006011
ref: 20

BOLT(6X8)

€ 2.50

21-1

6210025310
ref: 21-1

ABSORBER ASSEMBLY,REAR SHOCK

€ 48.50

21-2

6210025311
ref: 21-2

ABSORBER ASSEMBLY,REAR SHOCK

€ 48.50

22

6210025510
ref: 22

ABSORBER ASSEMBLY,REAR SHOCK

€ 51.00

23

6210025511
ref: 23

ABSORBER ASSEMBLY,REAR SHOCK

€ 52.50

24

0916010001
ref: 24
09160-10093

WASHER

€ 2.00

25

0832211128
ref: 25
08322-01127

WASHER

€ 2.00

26

0831311107
ref: 26
08313-10107

NUT

€ 2.50
