TURN SIGNAL LAMP

TS100 1975 (M) USA (E03)

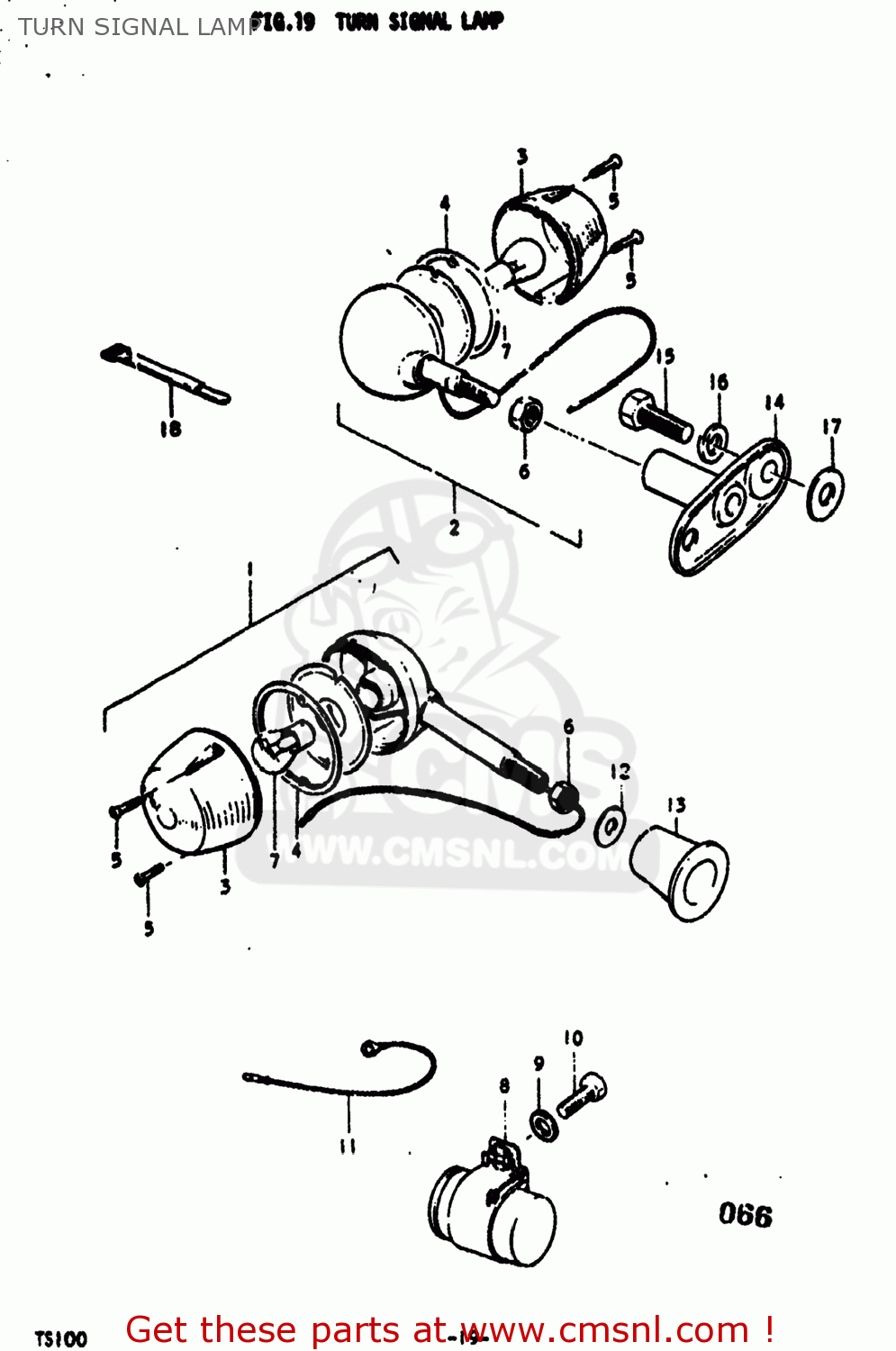

Turn signal lamp diagram TS100 1975 (M) USA (E03)

TURN SIGNAL LAMP TS100 1975 (M) USA (E03)
TURN SIGNAL LAMP TS100 1975 (M) USA (E03)
TURN SIGNAL LAMP TS100 1975 (M) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3560128620
ref: 1
35601-29620-999
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 29.50
2
3560125630
ref: 2
TURN SIGNAL ASSY, FRONT B
€ 0.00
3
3560325610
ref: 3
35603-25610-999
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 75.00
4
3560325611
ref: 4
35603-25610-999
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 75.00
5
3561228620
ref: 5
LENS
3561228620
€ 10.50
6
3561328620
ref: 6
GASKET (NAS)
3561328620
€ 7.00
7
0211104258
ref: 7
SCREW
€ 2.00
8
3562743010
ref: 8
GASKET (NAS)
3562743010
€ 2.00
9
0831232108
ref: 9
08310-00107
NUT
€ 2.50
9
0831232108
ref: 9
08310-00107
NUT
€ 2.50
10
0947106011
ref: 10
BULB(6V17W,STANLEY,A4513A)
0947106011
€ 9.50
11
0940711302
ref: 11
09407-18301
CLAMP
€ 6.00
12
3569032200
ref: 12
CUSHION
3569032200
€ 38.50
12
3569032200
ref: 12
CUSHION
3569032200
€ 38.50
13
3569532200
ref: 13
SPACER,RR TURNSIGNAL LAMP
3569532200
€ 42.00
14
0916010006
ref: 14
09160-10501
WASHER (10.5X30X2.3)
0916010006
€ 2.50
15
0832121108
ref: 15
08321-01107
LOCK WASHER
0832121108
€ 2.00
16
0831212108
ref: 16
08310-00107
NUT
€ 2.50
17
3666033000
ref: 17
LEAD WIRE,EARTH
3666033000
€ 5.00
17
3666033000
ref: 17
LEAD WIRE,EARTH
3666033000
€ 5.00
