FLYWHEEL MAGNETO (MADE BY KOKUSAN)
TS100 1976 (A) USA (E03)

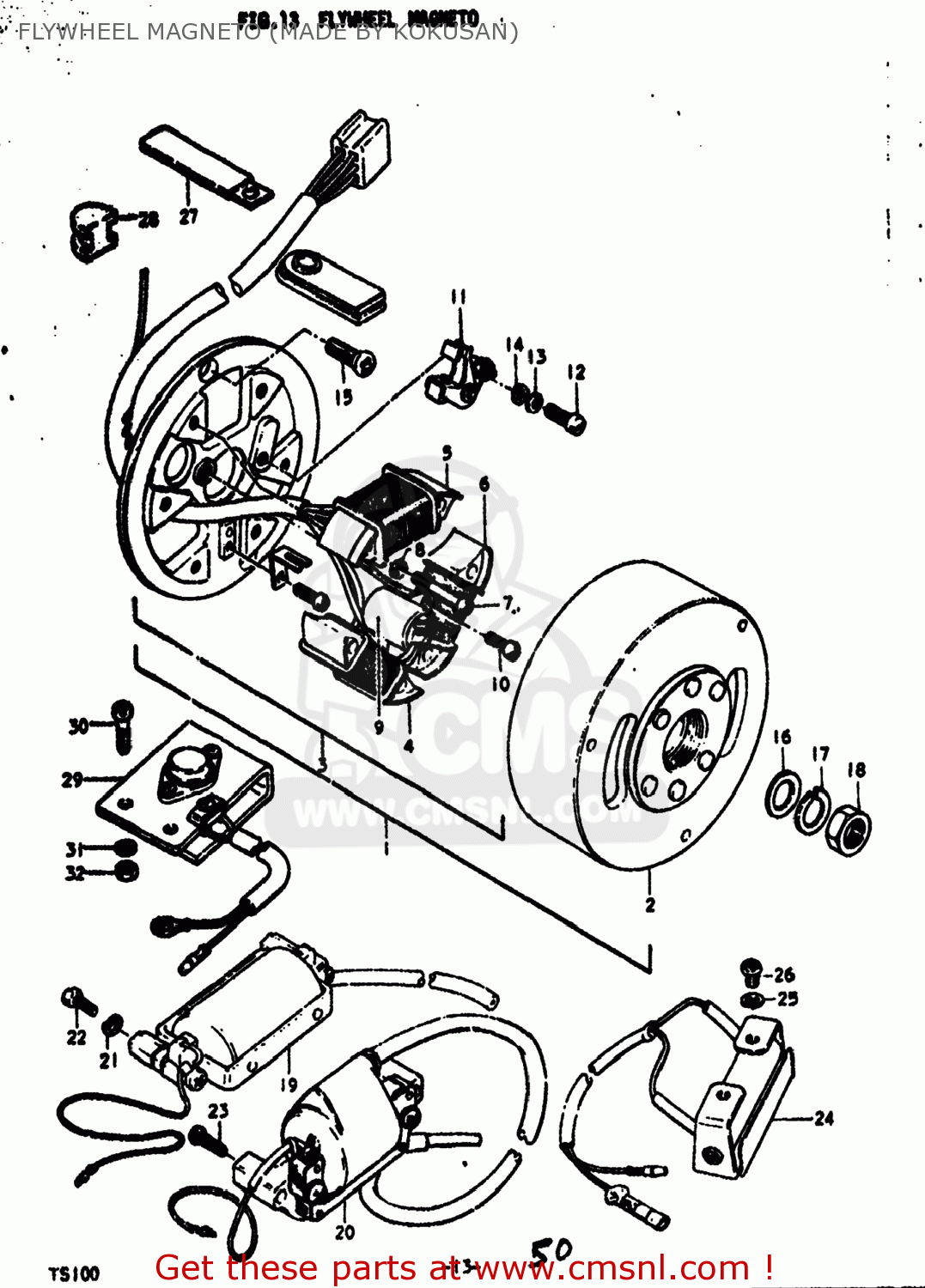

Flywheel magneto (made by kokusan) diagram TS100 1976 (A) USA (E03)
FLYWHEEL MAGNETO (MADE BY KOKUSAN) TS100 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3210025691
ref: 1-1
32101-25691
MAGNETO ASSEMBLY
€ 96.50
1-2
3210025692
ref: 1-2
MAGNETO ASSEMBLY
€ 0.00
2-1
3210225691
ref: 2-1
ROTOR ASSEMBLY
€ 107.00
2-2
3210225693
ref: 2-2
ROTOR ASSEMBLY
€ 0.00
3-1
3210125691
ref: 3-1
STATOR ASSEMBLY
€ 96.50
3-2
3210125692
ref: 3-2
STATOR ASSEMBLY
€ 71.00
4
3214025691
ref: 4
COIL
€ 41.50
5-1
3213025691
ref: 5-1
COIL
€ 19.00
5-2
3213025692
ref: 5-2
COIL
€ 22.00
6-1
3212025691
ref: 6-1
COIL,LIGHTING
€ 18.50
6-2
3212025692
ref: 6-2
COIL,LIGHTING
€ 72.50
7
0211104308
ref: 7
09125-04023
SCREW
€ 1.50
8
0832121048
ref: 8
08321-0104A
LOCK WASHER
€ 2.00
9
3234125690
ref: 9
CONDENSER
€ 27.00
10
0211104067
ref: 10
02112-0406B
SCREW
€ 2.00
11
3224012020
ref: 11
32240-07610
POINT ASSEMBLY,CONTACT
€ 42.00
12
0231104128
ref: 12
SCREW
€ 2.00
13
0832121048
ref: 13
08321-0104A
LOCK WASHER
€ 2.00
14
0832221048
ref: 14
08322-01047
WASHER
€ 2.00
15
0212206168
ref: 15
02122-06167
SCREW
€ 2.00
16
0832211108
ref: 16
08322-01107
WASHER
€ 2.50
17
0832121108
ref: 17
08321-01107
LOCK WASHER
€ 2.00
18
0914010003
ref: 18
09140-10041
NUT (10MM)
€ 3.50
19
3341027110
ref: 19
33410-27111
COIL ASSEMBLY,IGNITION
€ 104.00
20
3341022220
ref: 20
33410-22221
COIL ASSEMBLY,IGNITION
€ 184.50
21
0832121058
ref: 21
08321-0105A
LOCK WASHER
€ 2.00
22
0111105128
ref: 22
01500-05127
BOLT
€ 2.00
23
0211205128
ref: 23
02112-05127
SCREW
€ 2.50
24
3650025690
ref: 24
RESISTOR, MAGNETO
€ 55.00
24
3650025690
ref: 24
RESISTOR, MAGNETO
€ 55.00
25
0832121058
ref: 25
08321-0105A
LOCK WASHER
€ 2.00
26
0211105087
ref: 26
02112-05087
SCREW
€ 2.00
26
0211105087
ref: 26
02112-05087
SCREW
€ 2.00
27
0940300069
ref: 27
CLAMP
€ 8.50
28-1
0925904002
ref: 28-1
PLUG
€ 3.50
28-2
0925904001
ref: 28-2
PLUG
€ 3.50
29
3250027600
ref: 29
32500-25600
REGULATOR ASSEMBLY
€ 176.50
30
0211206128
ref: 30
02112-06127
SCREW 6X12
€ 2.00
31
0832221068
ref: 31
08322-01067
WASHER
€ 2.00
31
0832221068
ref: 31
08322-01067
WASHER
€ 2.00
32
0831111068
ref: 32
08310-00067
NUT
€ 2.50
