FRAME COVER (TS100T)

TS100 1981 (X) USA (E03)

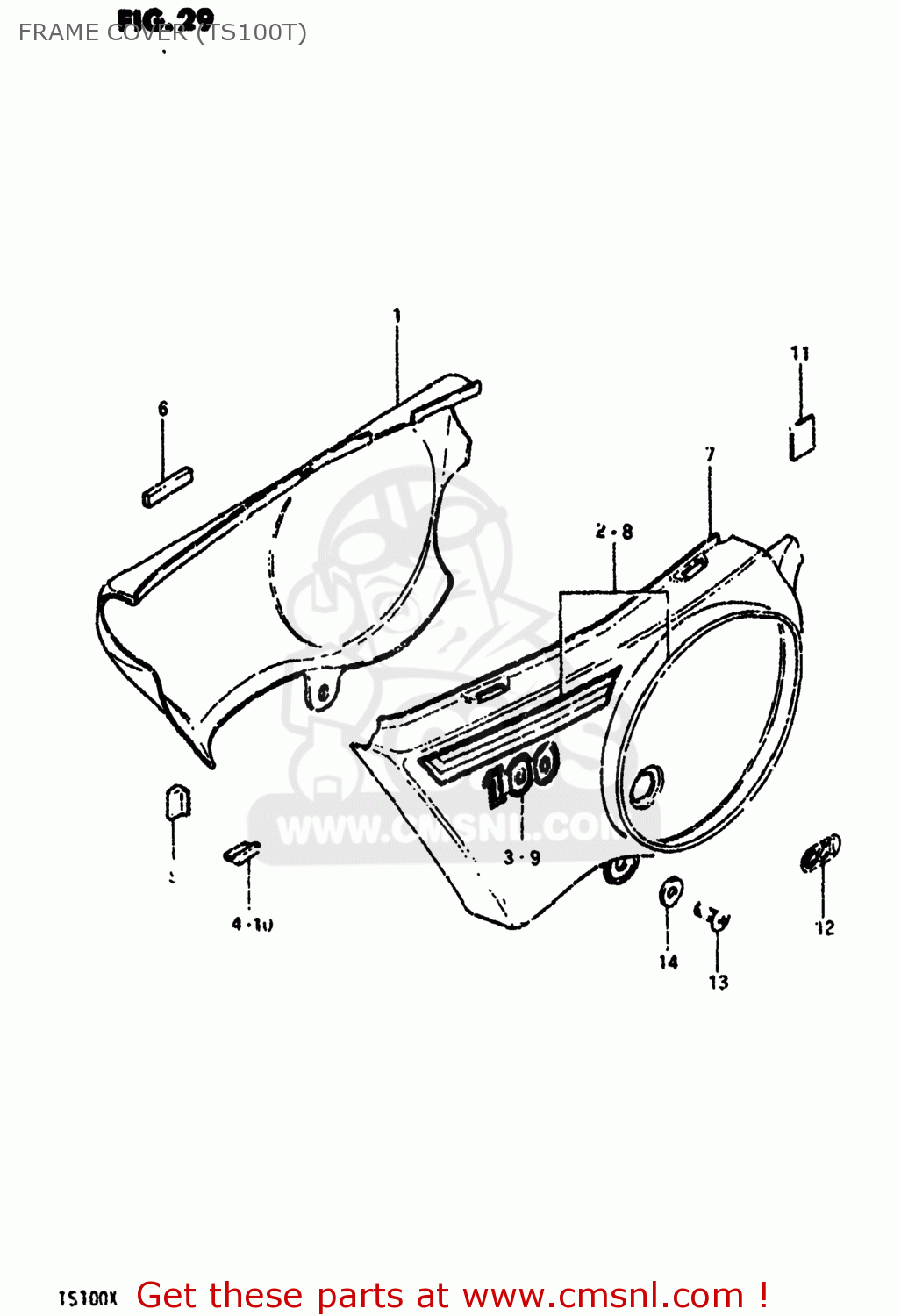

Frame cover (ts100t) diagram TS100 1981 (X) USA (E03)

prices are in EUR

ref

part #

description

quantity

471114850008Y
ref: 1
47111-48500

COVER,FRAME,RIGHT

€ 50.00

681304851071S
ref: 2
68130-48511-71S

TAPE SET,FRAME COVER

€ 8.00

6813148520019
ref: 3

EMBLEM

€ 3.50

4711745000
ref: 4

CUSHION,FRAME COVER

€ 1.50

4711702400
ref: 5

CUSHION,FRAME COVER

€ 2.00

4711746400
ref: 6

CUSHION,FRAME COVER

€ 1.50

472114850008Y
ref: 7
47211-48500

COVER,FRAME,LEFT

€ 73.00

681404851071S
ref: 8
68140-48511-71S

TAPE SET,FRAME COVER

€ 10.00

6813148520019
ref: 9

EMBLEM

€ 3.50

4711745000
ref: 10

CUSHION,FRAME COVER

€ 1.50

3365137000
ref: 11

PROTECTOR(170X95X3.0)

€ 5.00

6817126000
ref: 12

EMBLEM,CCIS

€ 4.00

0214206127
ref: 13

SCREW 6X12

€ 1.50

0916006007
ref: 14
09160-06084

WASHER

€ 2.00
