MAGNETO
TS125 1976 (A) USA (E03)

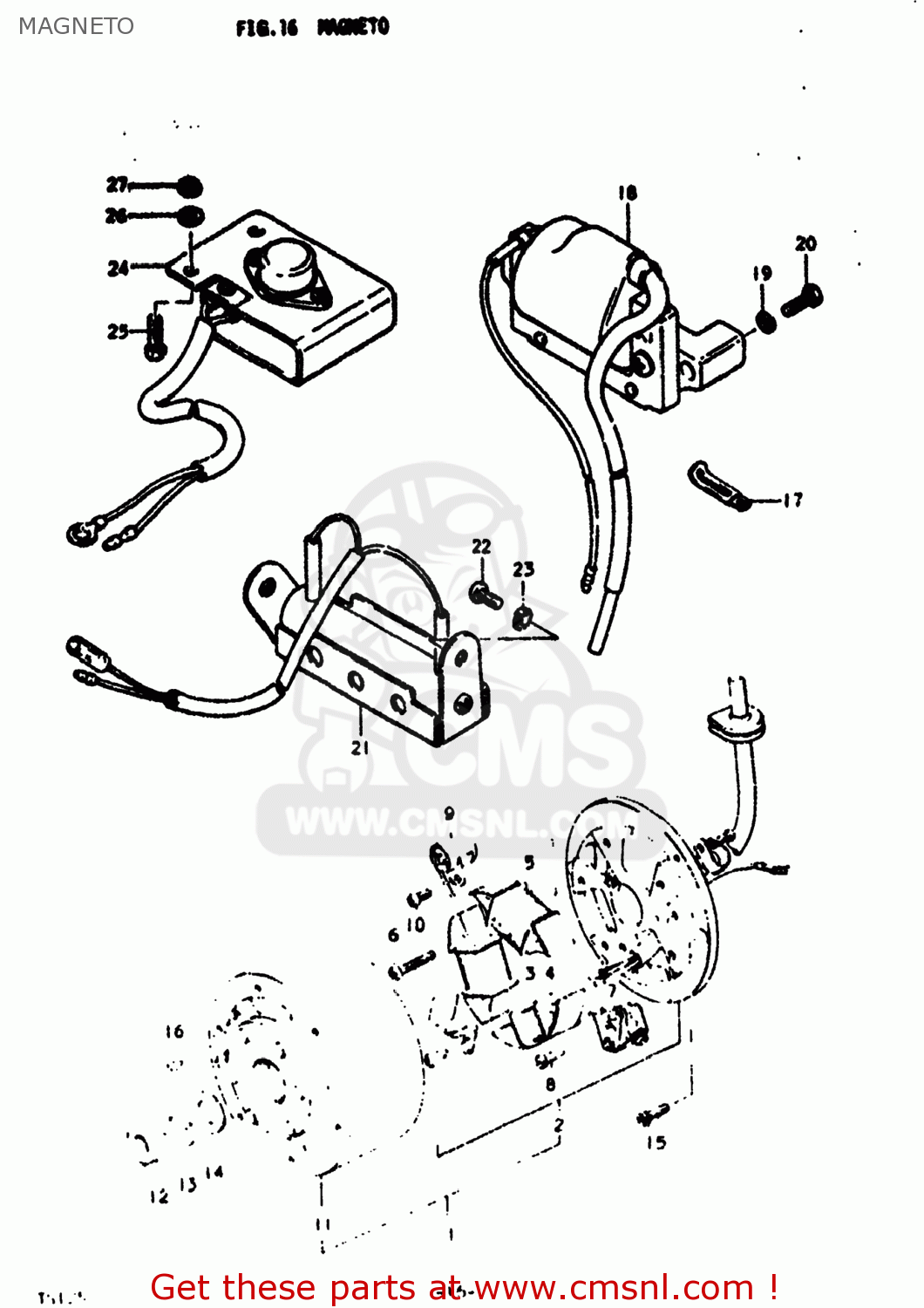

Magneto diagram TS125 1976 (A) USA (E03)
MAGNETO TS125 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3210028611
ref: 1-1
32101-28611
MAGNETO ASSEMBLY
€ 0.00
1-2
3210028612
ref: 1-2
32101-28611
MAGNETO ASSEMBLY
€ 66.00
1-3
3210028613
ref: 1-3
32101-28613
MAGNETO ASSEMBLY
€ 91.50
1-4
3210028614
ref: 1-4
32101-28613
MAGNETO ASSEMBLY
€ 91.50
2-1
3210128611
ref: 2-1
STATOR ASSEMBLY
€ 66.00
2-2
3210128613
ref: 2-2
STATOR ASSEMBLY
€ 91.50
3-1
3212028611
ref: 3-1
COIL,LIGHTING
€ 18.50
3-2
3212028612
ref: 3-2
COIL,LIGHTING
€ 0.00
4-1
3213028611
ref: 4-1
COIL,LIGHTING
€ 18.50
4-2
3213028612
ref: 4-2
COIL,LIGHTING
€ 16.50
5-1
3214028011
ref: 5-1
COIL,PRIMARY
€ 19.00
5-2
3214028012
ref: 5-2
COIL,PRIMARY
€ 68.50
6
0211104308
ref: 6
09125-04023
SCREW
€ 1.50
7
3224028010
ref: 7
32240-43012
POINT ASSEMBLY,CONTACT
€ 18.50
8
0231104108
ref: 8
02112-0410A
.SCREW
€ 1.00
9-1
3234112010
ref: 9-1
32341-12011
CONDENSER
€ 18.00
9-2
3234112011
ref: 9-2
CONDENSER
€ 18.00
10
0211104107
ref: 10
02112-04107
SCREW
€ 2.00
11-1
3210228011
ref: 11-1
ROTOR ASSEMBLY
€ 0.00
11-2
3210228612
ref: 11-2
ROTOR ASSEMBLY
€ 66.00
11-3
3210228613
ref: 11-3
ROTOR ASSEMBLY
€ 86.00
12
0914010003
ref: 12
09140-10041
NUT (10MM)
€ 3.50
13
0832121108
ref: 13
08321-01107
LOCK WASHER
€ 2.00
14
0832221108
ref: 14
08322-01107
WASHER
€ 2.50
15
0212206168
ref: 15
02122-06167
SCREW
€ 2.00
16
0834131039
ref: 16
KEY
€ 2.00
17
0940406401
ref: 17
09404-06432
CLAMP L:35
€ 2.50
18
3341022220
ref: 18
33410-22221
COIL ASSEMBLY,IGNITION
€ 184.50
19
0832121058
ref: 19
08321-0105A
LOCK WASHER
€ 2.00
20
0111105128
ref: 20
01500-05127
BOLT
€ 2.00
21
3650028610
ref: 21
MAGNETO RESISTOR
€ 18.00
21
3650028610
ref: 21
MAGNETO RESISTOR
€ 18.00
22
0211203068
ref: 22
02112-0306B
SCREW
€ 2.00
22
0211203068
ref: 22
02112-0306B
SCREW
€ 2.00
23
0832121058
ref: 23
08321-0105A
LOCK WASHER
€ 2.00
23
0832121058
ref: 23
08321-0105A
LOCK WASHER
€ 2.00
24
3250027600
ref: 24
32500-25600
REGULATOR ASSEMBLY
€ 176.50
25
0211206128
ref: 25
02112-06127
SCREW 6X12
€ 2.00
26
0832221068
ref: 26
08322-01067
WASHER
€ 2.00
27
0831111068
ref: 27
08310-00067
NUT
€ 2.50
