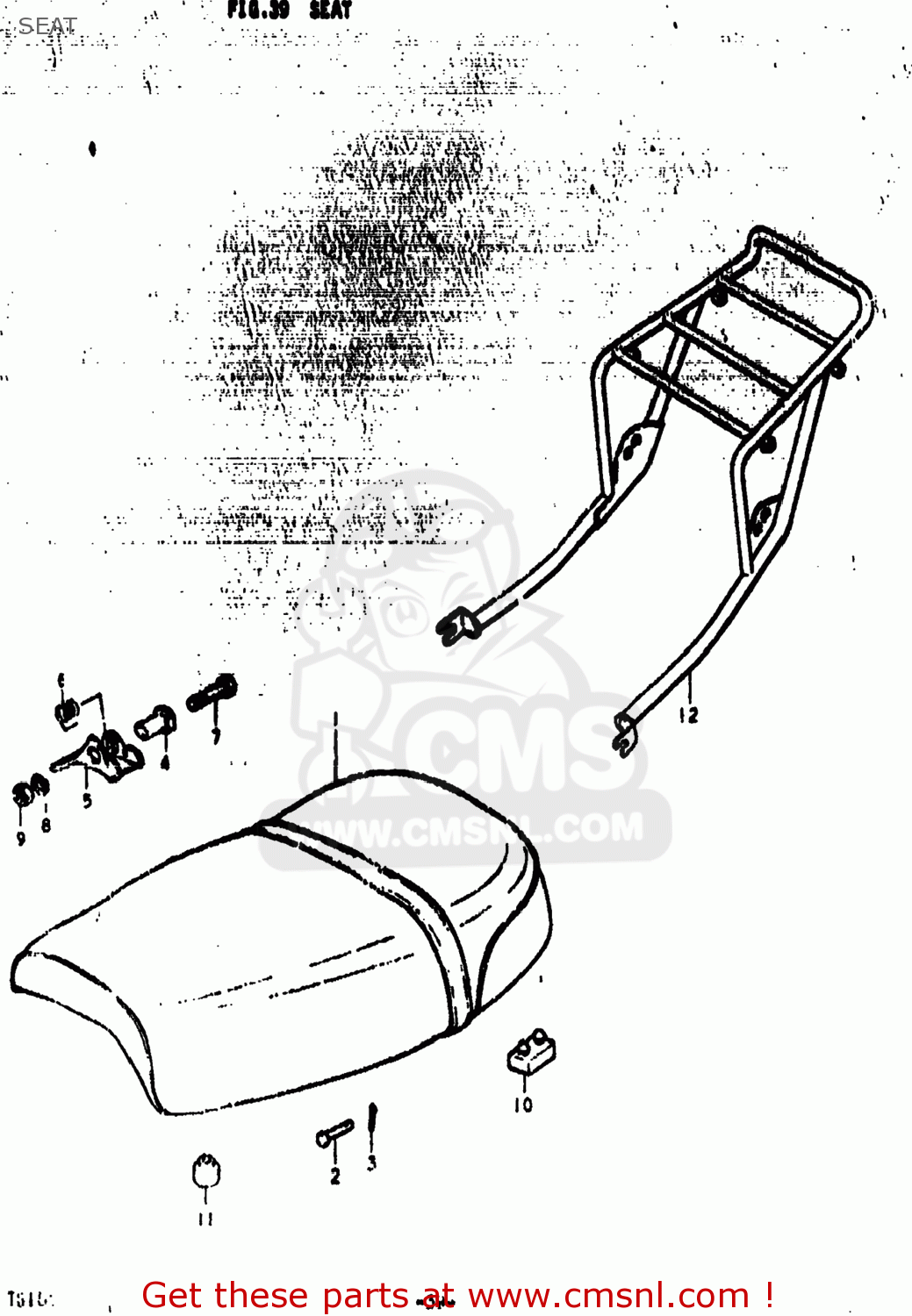

SEAT

ref

part #

description

quantity

1-1

4510028000403
ref: 1-1
45100-28831-865

SEAT ASSEMBLY

€ 107.00

1-2

4510028401403
ref: 1-2
45100-28402-865

SEAT ASSEMBLY

€ 342.50

1-3

4510028402865
ref: 1-3

SEAT ASSEMBLY

€ 342.50

2

0920006018
ref: 2

PIN

€ 2.00

3

0411120156
ref: 3
04111-2015A

COTTER PIN

€ 1.50

4

4521026001
ref: 4

STRIKER,SEAT LOCK

€ 0.00

5

4521126001
ref: 5

STRIKER,SEAT LOCK

€ 4.00

6

0944817007
ref: 6

SPRING

€ 3.50

7-1

0112208458
ref: 7-1
01500-08453

BOLT 8X45

€ 2.50

7-2

0112208408
ref: 7-2
01500-0840A

BOLT 8X40

€ 3.00

8

0832121088
ref: 8
08321-01087

LOCK WASHER

€ 2.00

9

0831211088
ref: 9
08310-00087

NUT

€ 2.00

10

0932108006
ref: 10

CUSHION

€ 3.00

11

0932110002
ref: 11

CUSHION(11.5X22X20)

€ 2.00

12-1

4631028400
ref: 12-1

CARRIER

€ 0.00

12-2

4631028401
ref: 12-2

CARRIER

€ 0.00
