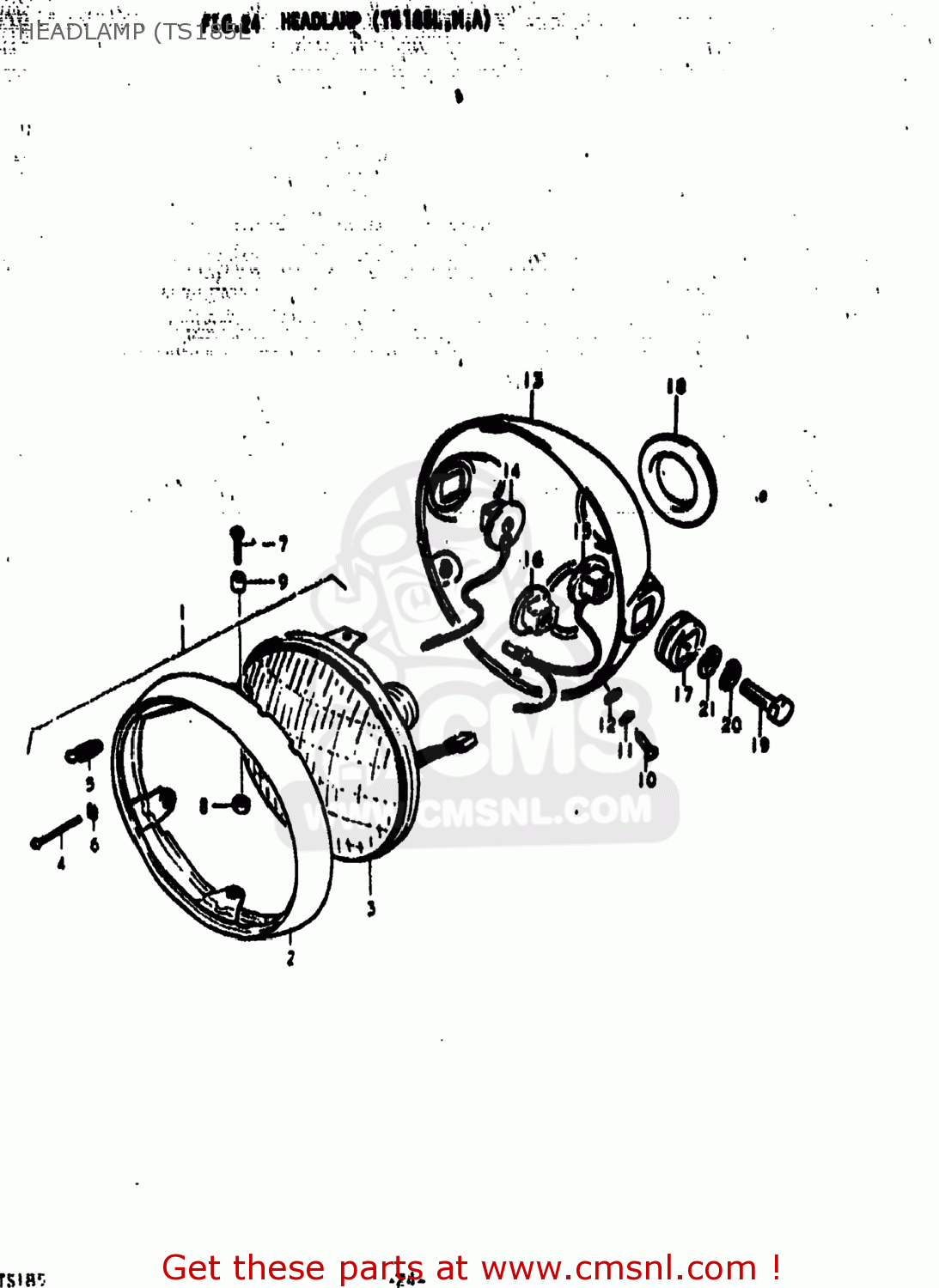

HEADLAMP (TS185L

ref

part #

description

quantity

1-1

3510025611
ref: 1-1

HEADLAMP ASSEMBLY

€ 31.50

1-2

3510025612
ref: 1-2

LAMP ASSEMBLY,HEAD

€ 60.00

2

3511125611
ref: 2

RIM,HEADLAMP

€ 20.00

3-1

3512125611
ref: 3-1

LAMP UNIT

€ 37.50

3-2

3512125612
ref: 3-2
35121-256V0

UNIT,HEADLAMP

€ 40.00

4

3515127620
ref: 4
35151-06020

SCREW,HEADLAMP ADJUST

€ 2.50

5

3515405610
ref: 5

SPRING,HEADLAMP ADJUST

€ 2.00

6

3515501321
ref: 6

NUT,HEADLAMP ADJUSTER

€ 2.50

7

3513625611
ref: 7
35136-35400

SCREW

€ 4.00

8

3513525611
ref: 8
08316-1005A

NUT,ADJUSTING

€ 2.50

9

3513325611
ref: 9

SPACER,HEADLAMP UNIT

€ 1.50

10

0221104128
ref: 10
02112-0412A

SCREW

€ 1.50

11

0832121048
ref: 11
08321-0104A

LOCK WASHER

€ 2.00

12

0832221048
ref: 12
08322-01047

WASHER

€ 2.00

13-1

5181026600
ref: 13-1

HOUSING,HEADLAMP

€ 83.50

13-2

5181026000126
ref: 13-2
51810-26000-13L

HOUSING COMP,HEADLAMP

€ 63.00

13-3

5181026000291
ref: 13-3
51810-26000-13L

HOUSING COMP,HEADLAMP

€ 63.00

14

5182129001
ref: 14
51822-29001

SPACER,HEADLAMP HOUSING

€ 3.00

15

5182229001
ref: 15

SPACER,HEADLAMP HOUSING

€ 3.00

16

5182129002
ref: 16

SPACER,HEADLAMP HOUSING

€ 5.50

17

5182729001
ref: 17

CUSHION,HEADLAMP HOUSING

€ 3.50

18

5184531031
ref: 18

GROMMET,HEADLAMP HOUSING

€ 4.00

19-1

0112208258
ref: 19-1
01500-08257

BOLT

€ 2.50

19-2

0122108257
ref: 19-2
01204-08257

BOLT

€ 2.00

20

0832121088
ref: 20
08321-01087

LOCK WASHER

€ 2.00

21

0832211088
ref: 21
08322-01087

WASHER

€ 2.00

all assemblies
