FRAME
TS185 1981 (X) USA (E03)

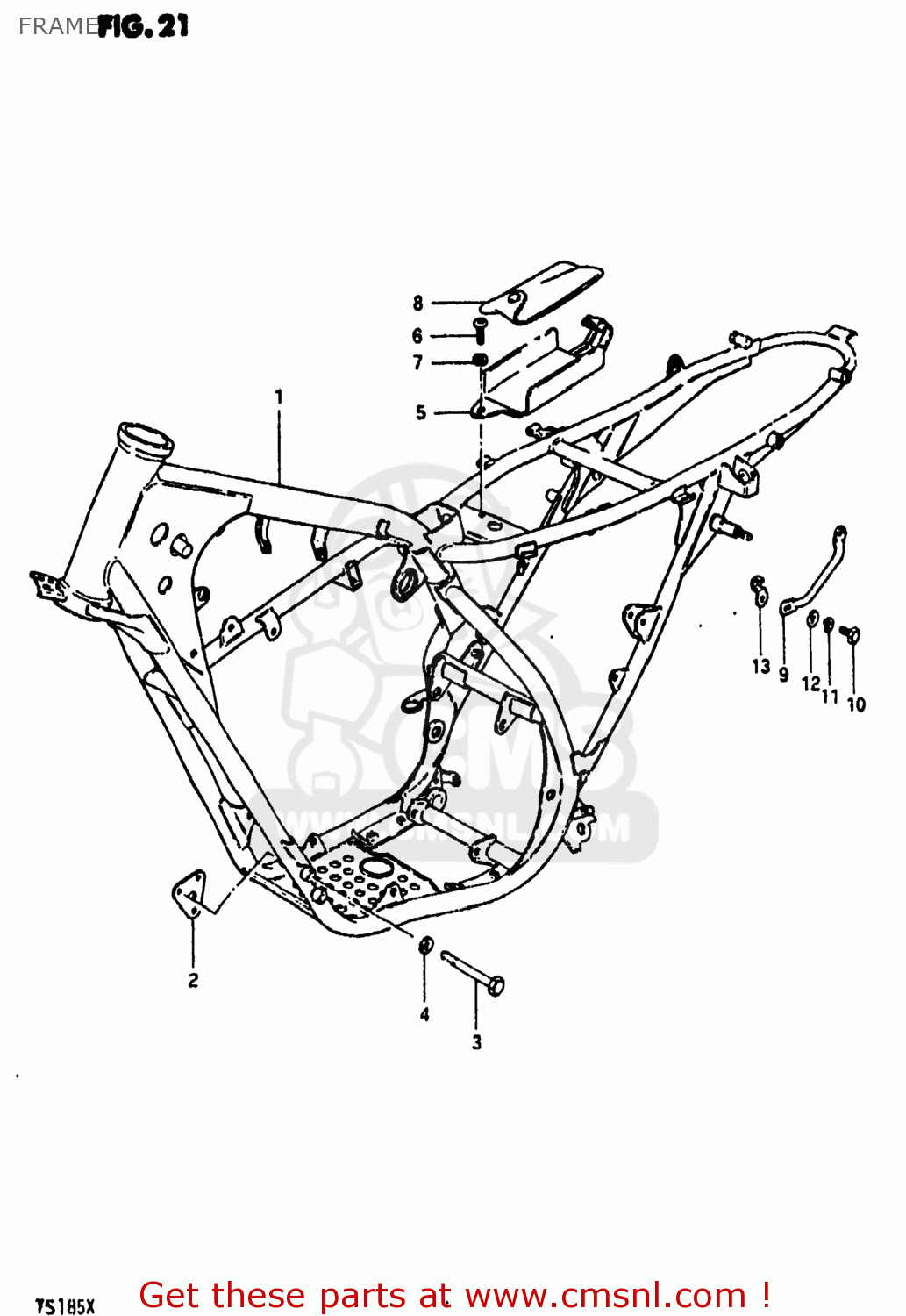

Frame diagram TS185 1981 (X) USA (E03)
FRAME TS185 1981 (X) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110029900019
ref: 1
FRAME
€ 926.00
2
4199030500
ref: 2
PLATE,ENG MTG,L
€ 5.50
3
0110708558
ref: 3
01500-08557
BOLT 8X55
€ 3.00
4
0832211088
ref: 4
08322-01087
WASHER
€ 2.00
5
4155029301
ref: 5
HOLDER,TOOL
€ 0.00
6
0211206108
ref: 6
02112-06107
SCREW
€ 1.50
7
0832221068
ref: 7
08322-01067
WASHER
€ 2.00
8
0980000205
ref: 8
09800-21028
TOOL SET
€ 43.50
9
4161148500
ref: 9
GRIP,FRAME HANDLE
€ 35.50
10
0110708168
ref: 10
01500-0816B
BOLT
€ 2.00
11
0832121088
ref: 11
08321-01087
LOCK WASHER
€ 2.00
12
0832211088
ref: 12
08322-01087
WASHER
€ 2.00
13
9572130900
ref: 13
HOOK,HELMET HOLDER
€ 0.00
