GEAR SHIFTING
TS250 1975 (M) USA (E03)

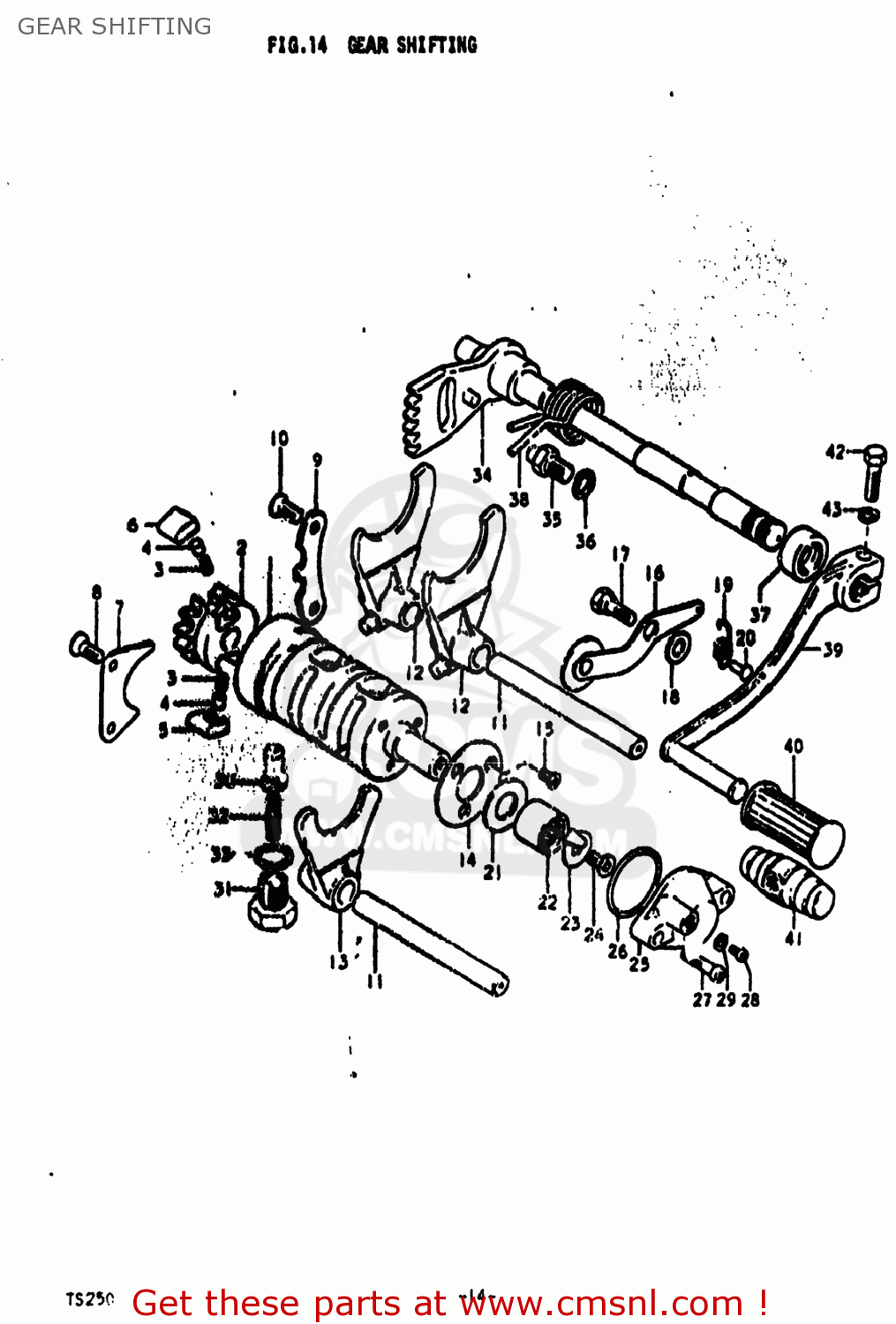

Gear shifting diagram TS250 1975 (M) USA (E03)
GEAR SHIFTING TS250 1975 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2531030001
ref: 1
CAM,GEAR SHIFT
€ 41.50
2
2532211000
ref: 2
25322-31310
RETAINER,GEAR SHIFT CAM
€ 14.50
3
0944004003
ref: 3
SPRING
€ 1.50
4
0926105003
ref: 4
PIN(5X8)
€ 1.50
5
2532311000
ref: 5
25323-34201
PAWL,GEAR SHIFT NO.1
€ 6.00
6
2532411000
ref: 6
25324-34201
PAWL,GEAR SHIFT NO.2
€ 6.00
7
2533130000
ref: 7
25331-30001
LIFTER,GEAR SHIFT PAWL
€ 3.50
8
0212206108
ref: 8
02122-0610A
SCREW
€ 1.50
9
2534111000
ref: 9
GUIDE,GEAR SHIFTING CABLE
€ 6.00
10
0212206108
ref: 10
02122-0610A
SCREW
€ 1.50
11
2541130000
ref: 11
25411-14311
SHAFT,GEAR SHIFT FORK
€ 14.50
12
2521130001
ref: 12
FORK,GEAR SHIFT NO.1
€ 57.50
13
2523130000
ref: 13
FORK,GEAR SHIFT NO.3
€ 61.00
14
2538120001
ref: 14
PLATE,GEAR SHIFT CAM STOPPER
€ 9.50
15
0212104127
ref: 15
02122-0412A
SCREW
€ 2.00
16
2535030001
ref: 16
STOPPER,GEAR SHIFTING
€ 10.00
17
0911106003
ref: 17
BOLT(6X16.1)
€ 1.50
18
0832221068
ref: 18
08322-01067
WASHER
€ 2.00
19
0944310007
ref: 19
SPRING
€ 2.00
20
0922004001
ref: 20
09223-04001
RIVET
€ 1.50
21
0821112253
ref: 21
WASHER
€ 1.50
22
0926312009
ref: 22
ROLLER BEARING (12X18X1
€ 12.50
23
3771105101
ref: 23
CONTACT,GEAR SHIFT SWITCH
€ 4.00
24
0212206128
ref: 24
02122-06127
SCREW
€ 3.00
25
3772115002
ref: 25
BODY,GEAR SHIFT SWITCH
€ 13.00
26
0928028002
ref: 26
O RING(D:1.9,ID:27.7)
€ 7.50
27
0211105207
ref: 27
02112-05207
SCREW
€ 3.00
28
0211103048
ref: 28
02112-03047
SCREW
€ 2.00
29
0832221038
ref: 29
08322-01037
WASHER
€ 2.00
30
2535130010
ref: 30
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
31
2535430000
ref: 31
HOLDER,GEAR SHIFT CAM STOP SPR
€ 6.50
32
0944006014
ref: 32
SPRING
€ 1.50
33
0916814004
ref: 33
GASKET(14X19.2X2) (NAS)
€ 2.50
34
2551030000
ref: 34
25510-30X00
SHAFT,GEAR SHIFT
€ 85.00
35
2567101000
ref: 35
25671-01011
STOPPER,GEAR SHIFT CAM
€ 3.00
36
0832121058
ref: 36
08321-0105A
LOCK WASHER
€ 2.00
37
0928512002
ref: 37
09285-12006
OIL SEAL
€ 7.00
38
0944426001
ref: 38
SPRING
€ 4.00
39
2560030001
ref: 39
25600-30501
LEVER ASSEMBLY,GEAR SHIFTING
€ 31.00
40
2565203201
ref: 40
25652-16500
RUBBER,GEAR SHIFT PEDAL
€ 15.00
41
2565216500
ref: 41
RUBBER,GEAR SHIFT PEDAL
€ 4.00
42
0111206208
ref: 42
01500-06207
BOLT
€ 2.00
43
0832121068
ref: 43
08321-01067
LOCK WASHER
€ 2.50
