SECOND MUFFLER (L
TS400 1973 (K) USA (E03)

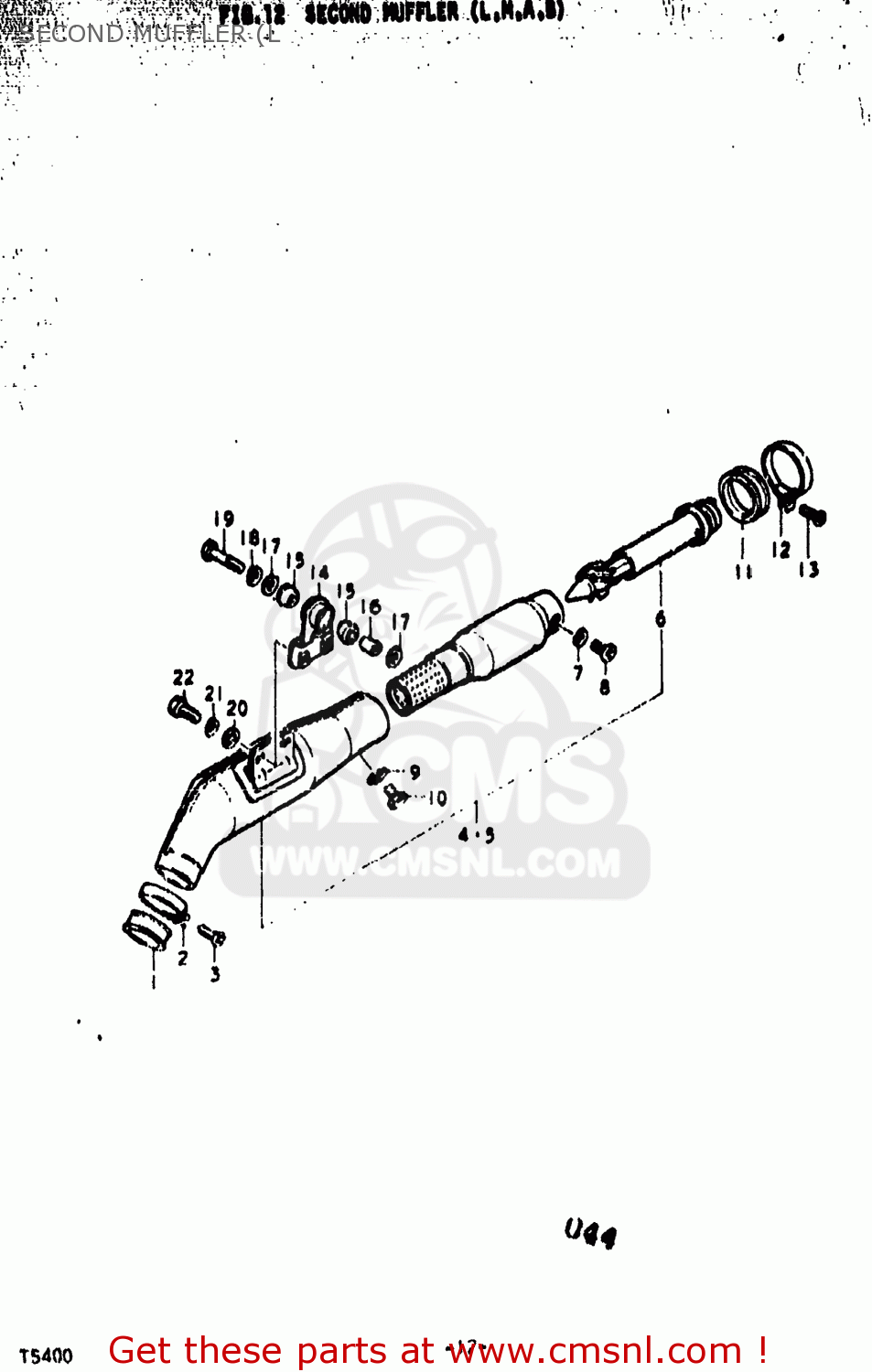

Second muffler (l diagram TS400 1973 (K) USA (E03)
SECOND MUFFLER (L TS400 1973 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1477132200
ref: 1
CONNECTOR,MUFFLER
€ 6.00
2
0940257601
ref: 2
09402-56601
CLAMP
€ 2.50
3
0211206208
ref: 3
02112-06207
SCREW
€ 2.00
4
1430332200
ref: 4
14303-32600
MUFFLER ASSEMBLY
€ 112.00
5
1430332201
ref: 5
14303-32600
MUFFLER ASSEMBLY
€ 112.00
6
1485032200
ref: 6
TUBE,MUFFLER CLEAN OUT
€ 40.50
7
0832121068
ref: 7
08321-01067
LOCK WASHER
€ 2.50
8
0211206088
ref: 8
02112-06087
SCREW
€ 2.00
9
0832121068
ref: 9
08321-01067
LOCK WASHER
€ 2.50
10
0912806013
ref: 10
SCREW(6X8)
€ 1.50
11
1477332200
ref: 11
CONNECTOR,SECOND MUFFLER
€ 19.00
12
0940270601
ref: 12
CLAMP
€ 11.50
13
0211206258
ref: 13
02112-06257
SCREW
€ 2.00
14
1448032200
ref: 14
NO PRODUCT DESCRIPTION AVAILABLE
€ 9.50
15
0932012018
ref: 15
CUSHION
€ 2.00
16
0918008057
ref: 16
SPACER (8.2X12.5X23.5)
€ 2.00
17
0916008007
ref: 17
09160-08127
WASHER (8.7X22X2)
€ 2.00
18
0832121088
ref: 18
08321-01087
LOCK WASHER
€ 2.00
19
0112208408
ref: 19
01500-0840A
BOLT 8X40
€ 3.00
20-1
0916006019
ref: 20-1
WASHER(6.5X16X1.2)
€ 1.50
20-2
0916006016
ref: 20-2
09160-06019
WASHER
€ 1.50
21
0832121068
ref: 21
08321-01067
LOCK WASHER
€ 2.50
22
0111206168
ref: 22
01500-06167
BOLT
€ 3.00
