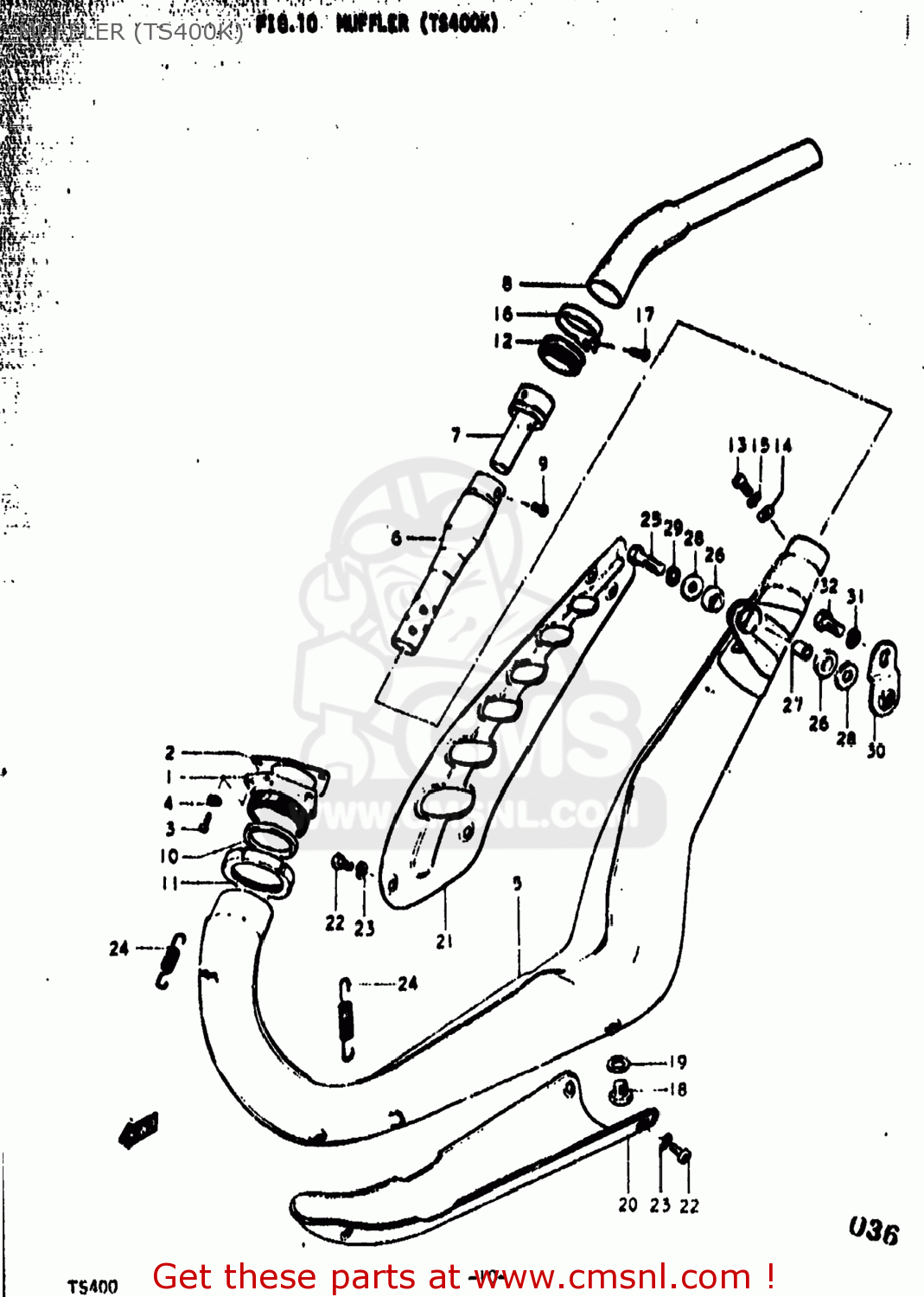

MUFFLER (TS400K)

ref

part #

description

quantity

1

1417032000
ref: 1

FLANGE,EXHAUST PIPE

€ 31.00

2

1418116500
ref: 2
14181-16501

GASKET,EXHAUST PIPE (MCA)

€ 9.50

3

0211206208
ref: 3
02112-06207

SCREW

€ 2.00

4

0832121068
ref: 4
08321-01067

LOCK WASHER

€ 2.50

5

1430132600
ref: 5
14301-32600-H01

MUFFLER ASSEMBLY

€ 139.50

6

1481032600
ref: 6

ARRESTER,SPARK

€ 35.00

7

1485032600
ref: 7

TUBE,MUFFLER CLEAN OUT

€ 9.00

8

1463032000
ref: 8

EXHAUST EXTENSION

€ 16.50

9

0211105087
ref: 9
02112-05087

SCREW

€ 2.00

10

1418216480
ref: 10

CLAMP,EXHAUST PIPE

€ 11.50

11

1418332000
ref: 11

HOLDER,EXHAUST PIPE CLAMP

€ 27.50

12

1463432000
ref: 12

GASKET,MUFFLER TAIL PIPE (NAS)

€ 7.50

13

0211105127
ref: 13
02112-05127

Screw

€ 2.50

14

0916804002
ref: 14

GASKET

€ 0.00

15

0832121058
ref: 15
08321-0105A

LOCK WASHER

€ 2.00

16

0940200226
ref: 16
09402-58306

CLAMP

€ 5.00

17

0211104208
ref: 17
02112-0420A

SCREW

€ 1.00

18

0924710001
ref: 18

PLUG

€ 3.00

19

0916810002
ref: 19

GASKET(10X14X3.6) (NAS)

€ 2.00

20

1478232000
ref: 20

COVER,MUFFLER

€ 13.50

21

1478132001
ref: 21
14781-32200

COVER,MUFFLER

€ 27.00

22

0211106087
ref: 22
02112-06087

SCREW

€ 2.00

23

0832121068
ref: 23
08321-01067

LOCK WASHER

€ 2.50

24

0944311002
ref: 24

SPRING

€ 4.50

25

0112208408
ref: 25
01500-0840A

BOLT 8X40

€ 3.00

26

0932012018
ref: 26

CUSHION

€ 2.00

27

0918008057
ref: 27

SPACER (8.2X12.5X23.5)

€ 2.00

28

0916008007
ref: 28
09160-08127

WASHER (8.7X22X2)

€ 2.00

29

0832121088
ref: 29
08321-01087

LOCK WASHER

€ 2.00

30

1447032000
ref: 30

BRACE,MUFFLER

€ 7.00

31

0832121088
ref: 31
08321-01087

LOCK WASHER

€ 2.00

32

0910008067
ref: 32
09100-08143

BOLT

€ 2.50

all assemblies
