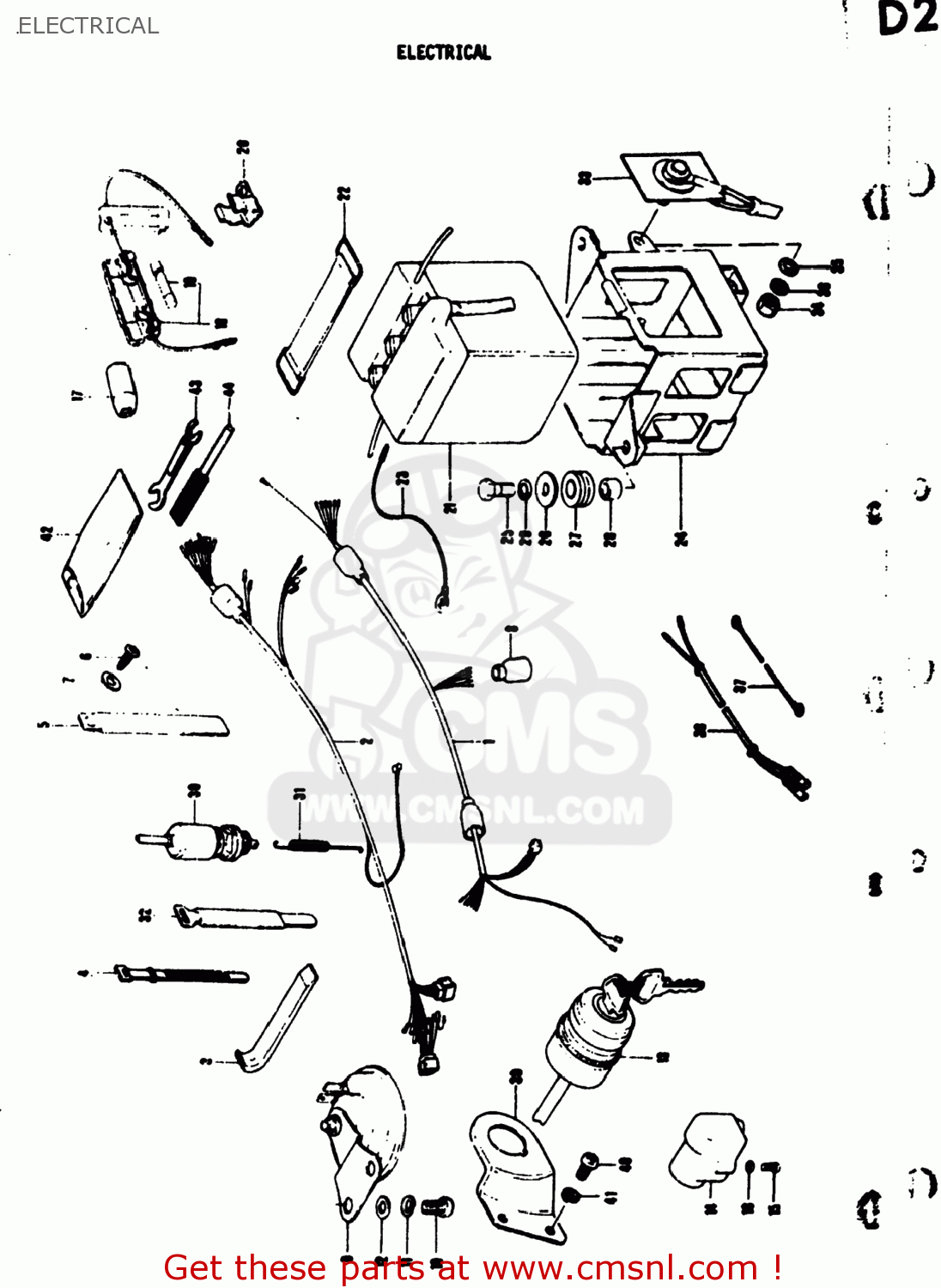

ELECTRICAL

ref

part #

description

quantity

1

3661026601
ref: 1

HARNESS,WIRING

€ 58.00

2

3661026200
ref: 2

HARNESS,WIRING

€ 38.00

3

3388122200
ref: 3

BAND

€ 1.50

4-1

0940711302
ref: 4-1
09407-18301

CLAMP

€ 6.00

4-2

0940711301
ref: 4-2
09407-18301

CLAMP L:110

€ 6.00

5

0940300058
ref: 5

CLAMP

€ 3.00

6

0331105088
ref: 6

NO PRODUCT DESCRIPTION AVAILABLE

€ 1.00

7

0832221058
ref: 7
08322-01057

WASHER

€ 2.50

8

3661828000
ref: 8
36618-30000

COVER,WIRING HARNESS

€ 8.50

9-1

3850025032
ref: 9-1

HORN ASSEMBLY

€ 30.00

9-2

3850022032
ref: 9-2

HORN ASSEMBLY

€ 30.00

10

0211106087
ref: 10
02112-06087

SCREW

€ 2.00

11

0832121068
ref: 11
08321-01067

LOCK WASHER

€ 2.50

12

0832221068
ref: 12
08322-01067

WASHER

€ 2.00

13-1

3711026612
ref: 13-1
37110-26616

SWITCH ASSEMBLY,IGNITION

€ 99.00

13-2

3711026610
ref: 13-2
37110-26616

SWITCH ASSEMBLY,IGNITION

€ 99.00

13-3

3711027110
ref: 13-3
37110-27115

SWITCH ASSEMBLY,IGNITION

€ 67.50

14

5000025837
ref: 14
51910-25311

LOCK ASSY,STEERING

€ 22.50

15

0211105127
ref: 15
02112-05127

Screw

€ 2.50

16

0832121058
ref: 16
08321-0105A

LOCK WASHER

€ 2.00

17

0928710001
ref: 17

SEAL,DUST(10X17X45)

€ 4.00

18

3674015010
ref: 18
36740-15011

BOX ASSEMBLY,FUSE

€ 11.00

19

0948115001
ref: 19

FUSE(15A)

€ 3.00

20

3679125001
ref: 20

HOLDER,FUSE CASE

€ 3.50

21

3361003010
ref: 21

BATTERY ASSY(6N4-2A4.2AH)

€ 42.00

22

0946200001A
ref: 22

BAND

€ 8.00

23

3686227690
ref: 23

LEAD WIRE

€ 9.00

24

4154026002
ref: 24
41540-26003

HOLDER,BATTERY

€ 13.50

25

0111206208
ref: 25
01500-06207

BOLT

€ 2.00

26

0916006027
ref: 26
09160-06077

WASHER (6.5X20X1.2)

€ 2.00

27

0932008007
ref: 27
09320-08021

CUSHION

€ 4.00

28

0918007005
ref: 28
09180-06259

SPACER (7X9X7)

€ 2.50

29

0832121068
ref: 29
08321-01067

LOCK WASHER

€ 2.50

30

3774020010
ref: 30

SWITCH,BRAKE LAMP

€ 22.00

31

0944306019
ref: 31

SPRING

€ 3.50

32

0940709301
ref: 32

CLAMP

€ 6.00

33

3280001020
ref: 33
32800-16A00

RECTIFIER ASSEMBLY

€ 10.50

34

0831111058
ref: 34
08310-00057

NUT

€ 2.50

35

0832221058
ref: 35
08322-01057

WASHER

€ 2.50

36

0832121058
ref: 36
08321-0105A

LOCK WASHER

€ 2.00

37

3685226600
ref: 37
36851-02331

WIRE

€ 6.00

37

3685226600
ref: 37
36851-02331

WIRE

€ 6.00

38

3685326000
ref: 38

WIRE,REAR TURN SIGNAL,LEFT

€ 0.00

39

3711526001
ref: 39

BRACKET,IGNITION SWITCH

€ 0.00

40

0211105107
ref: 40

SCREW

€ 2.00

41

0832121058
ref: 41
08321-0105A

LOCK WASHER

€ 2.00

42

0980000108
ref: 42
09800-21028

TOOL SET

€ 43.50

43

0993020111
ref: 43

WRENCH, CONTACT POINT

€ 22.50

44

0981800001
ref: 44

CONTACT POINT FILE

€ 1.50
