Buy Suzuki TS Parts Online


HEAD LAMP HOUSING

TS50ERKD 1983 (D) (E17 E18 E21 E41)

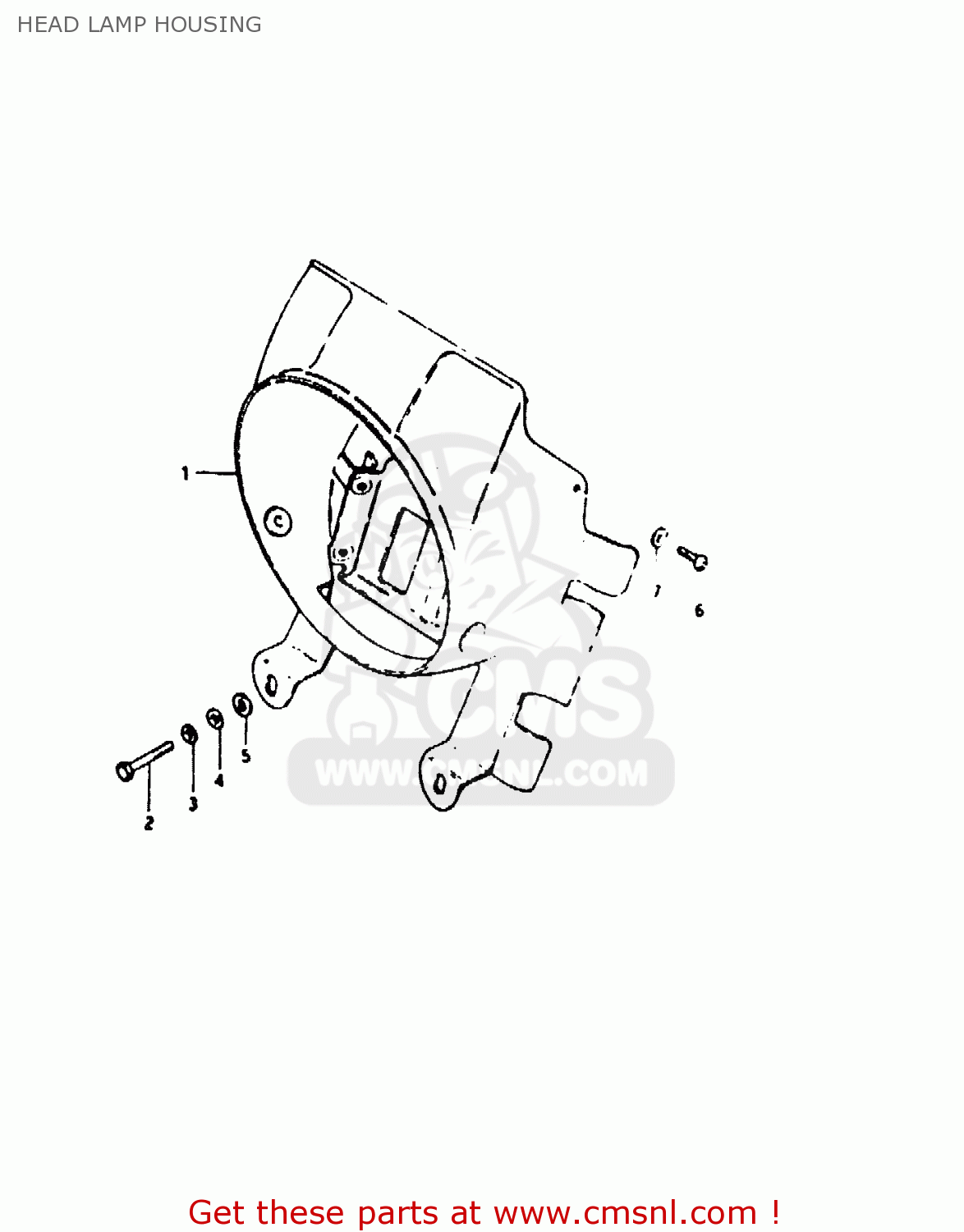

Head lamp housing diagram TS50ERKD 1983 (D) (E17 E18 E21 E41)

HEAD LAMP HOUSING TS50ERKD 1983 (D) (E17 E18 E21 E41)
HEAD LAMP HOUSING TS50ERKD 1983 (D) (E17 E18 E21 E41)
HEAD LAMP HOUSING TS50ERKD 1983 (D) (E17 E18 E21 E41)
prices are in EUR
ref
part #
description
quantity
1-1
518102650107P
ref: 1-1
HOUSING, HEADLAMP
€ 58.50
1-2
518102650108Y
ref: 1-2
HOUSING, HEADLAMP
518102650108Y
€ 58.50
1-3
5181026501163
ref: 1-3
HOUSING, HEADLAMP
5181026501163
€ 58.50
1-4
5181026501019
ref: 1-4
HOUSING, HEADLAMP (BLACK)
€ 58.50
2
0110706208
ref: 2
BOLT
0110706208
€ 2.00
3
0832121068
ref: 3
LOCK WASHER
0832121068
€ 2.50
4
0832221068
ref: 4
WASHER
0832221068
€ 2.00
5
0916006020
ref: 5
WASHER
0916006020
€ 2.00
6
0211205128
ref: 6
SCREW
€ 2.50
7
0916005017
ref: 7
WASHER (5.5X16X1.2)
0916005017
€ 2.50
