OIL TANK

TS50ERKDB 1982 (Z) ZWITSERLAND (E18)

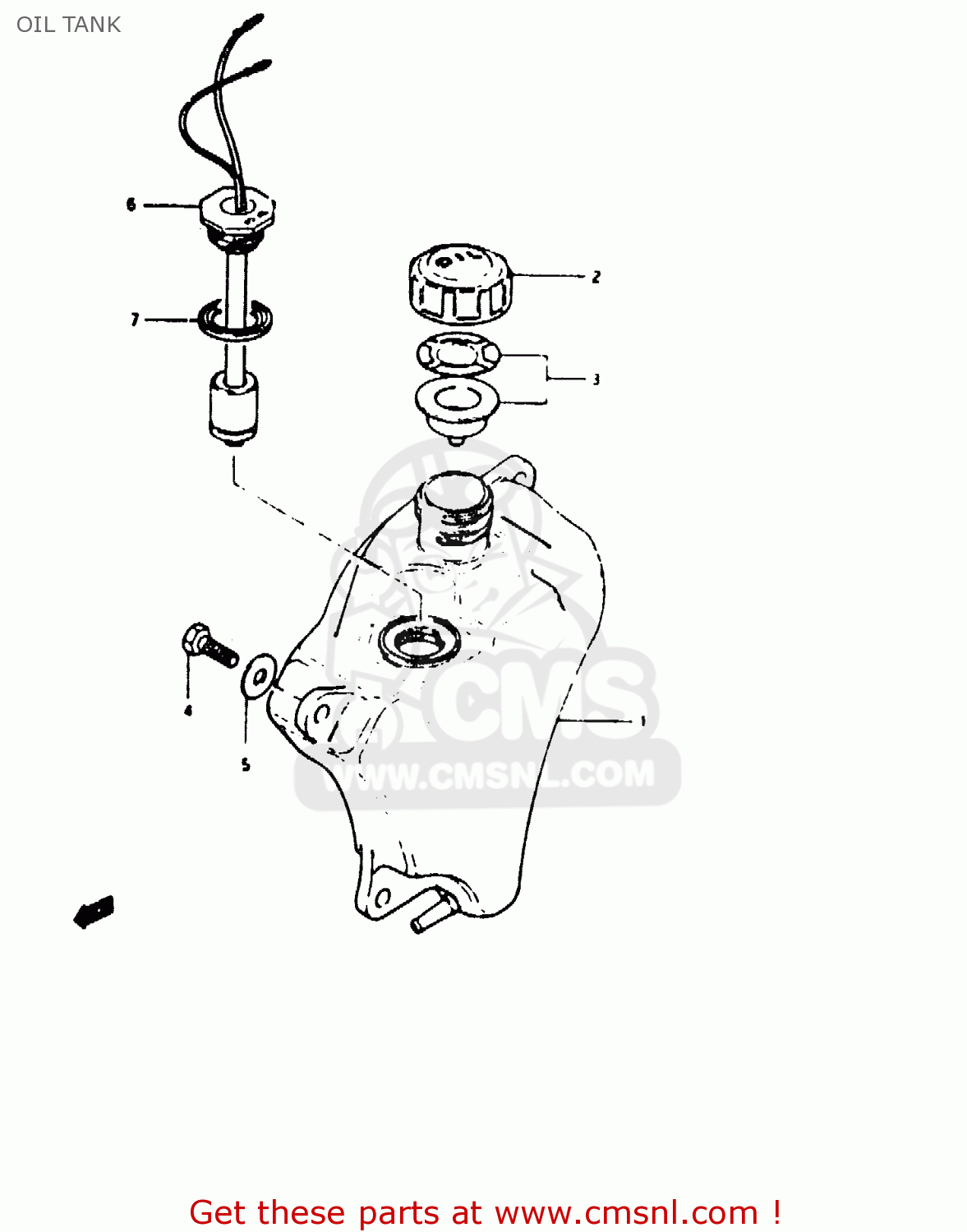

Oil tank diagram TS50ERKDB 1982 (Z) ZWITSERLAND (E18)

OIL TANK TS50ERKDB 1982 (Z) ZWITSERLAND (E18)

OIL TANK TS50ERKDB 1982 (Z) ZWITSERLAND (E18)

prices are in EUR

ref

part #

description

quantity

1

4461126402
ref: 1

TANK, OIL

€ 49.00

2

4465105003
ref: 2

CAP,OIL TANK

€ 4.00

3

4460030832
ref: 3

GASKET SET (NAS)

€ 6.00

4

0110706168
ref: 4

BOLT, UPPER

€ 3.00

5

0916006007
ref: 5

WASHER

€ 2.00

6

3788043000
ref: 6

SWITCH, OIL LEVEL

€ 34.50

7

4464331000
ref: 7

GASKET (NAS)

€ 2.50
