TURN SIGNAL LAMP
TS50ERP 1979 (N)

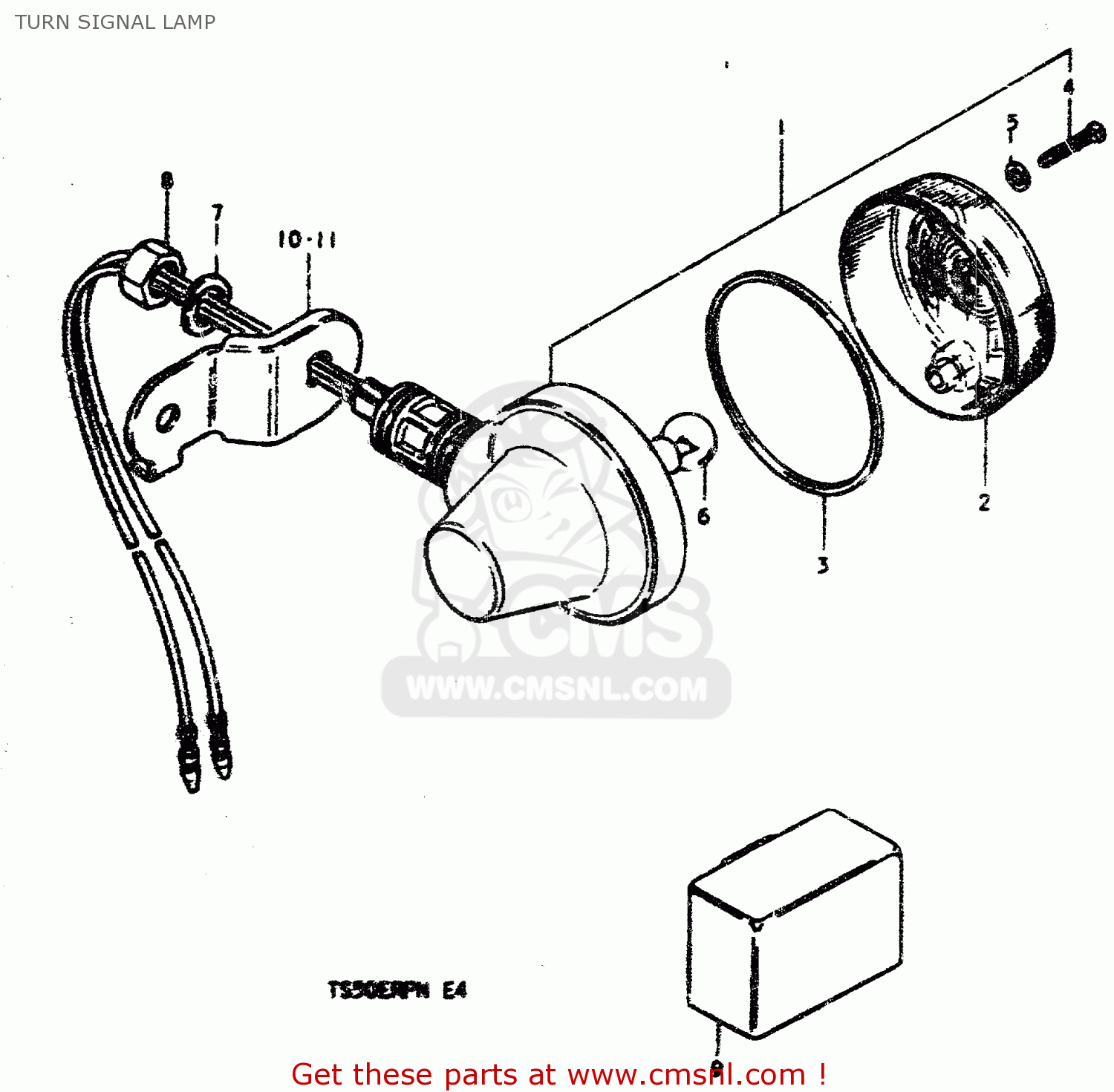

Turn signal lamp diagram TS50ERP 1979 (N)
TURN SIGNAL LAMP TS50ERP 1979 (N)
×
prices are in EUR
ref
part #
description
quantity
1
3560348510999
ref: 1
LAMP ASSY, REAR TURN SIGNAL LAMP
€ 72.50
2
3561248510
ref: 2
LENS
€ 10.50
3
3561328620
ref: 3
GASKET (NAS)
€ 7.00
4
0321104258
ref: 4
SCREW TAPP.
€ 2.00
5
3562743010
ref: 5
GASKET (NAS)
€ 2.00
6
0947106023
ref: 6
6V, 10W
BULB(6V/10W,STANLEY,A4117)
€ 4.00
7
0832121128
ref: 7
WASHER,LOCK 12
€ 2.50
8
0831012128
ref: 8
NUT
€ 3.00
9
3861039120
ref: 9
RELAY ASSY, TURN SIGNAL
€ 49.00
10
4158048500
ref: 10
BRACKET,REAR TURN SIGNAL
€ 14.00
11
4159048500
ref: 11
BRACKET,REAR TURN SIGNAL
€ 14.50
