prices are in EUR

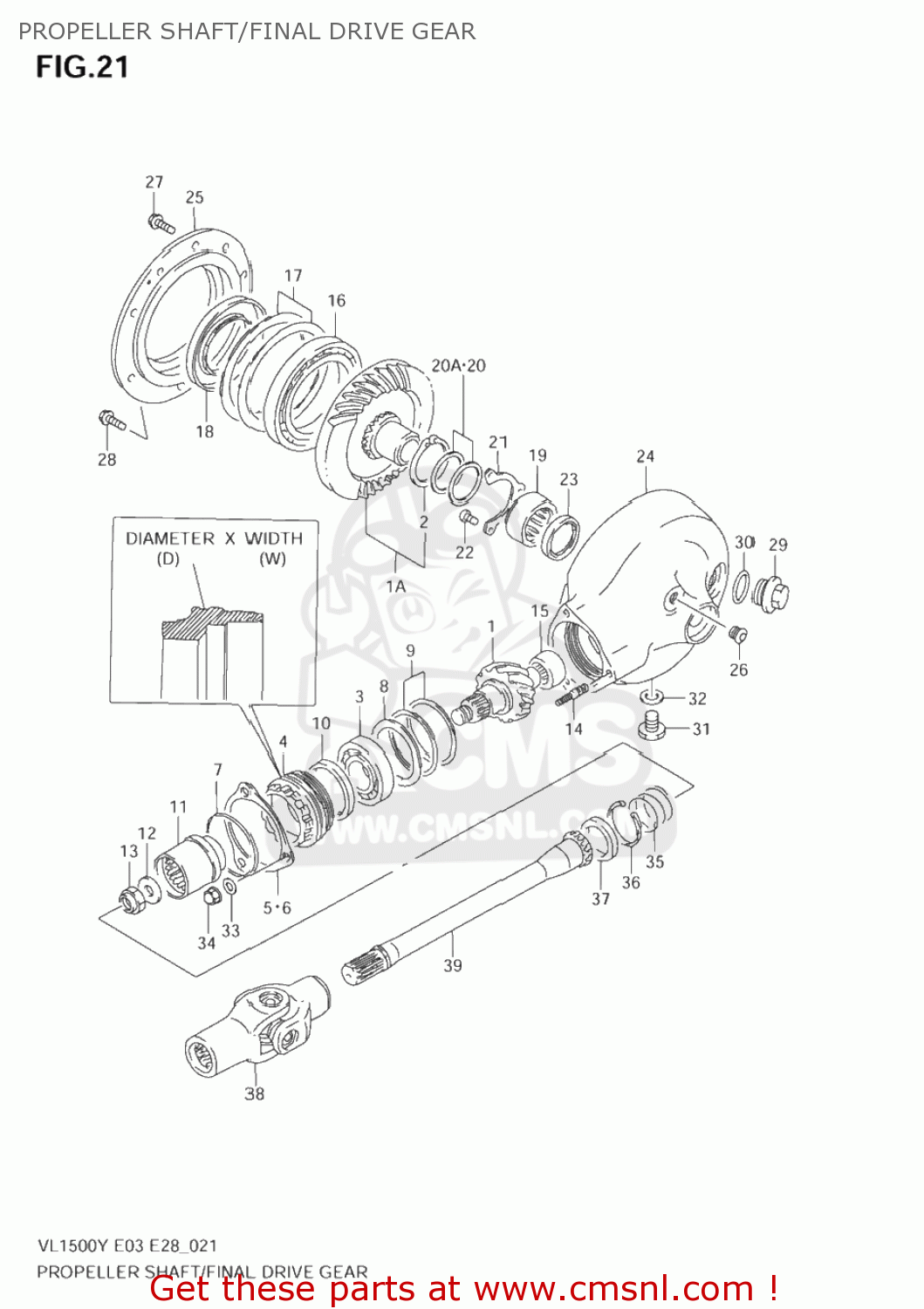

ref
part #
description
quantity
GEAR & CASE SET,FINAL BEVEL
1
GEAR,FINAL DRIVE BEVEL
1A
GEAR,FINAL DRIVEN BEVEL
3
BEARING(28X68X18)
4
STOPPER,FINAL DRIVE BEARING
5
PLATE,BEARING STOPPER
6
PLATE,BEARING STOPPER
7
O RING(D:3.1,ID:63.9)
8
WASHER(54X68X1.5)
9
SHIM SET,FINAL DRIVE GEAR
10
SEAL,OIL
11
COUPLING,FINAL DRIVE GEAR
12
WASHER(16X29X4)
13
NUT
14
BOLT
15
BEARING(20X34X18)
16
BEARING(85X130X14)
17
SHIM SET,FINAL DRIVEN GEAR
18
SEAL,OIL(70X110X14.7)
19
BEARING(35X48X23.7)
20
WASHER(35X46X0.95)
20A
SHIM SET,FINAL DRIVEN GEAR
20A
SHIM SET,FINAL DRIVEN GEAR
21
RETAINER,FINAL DRIVEN GEAR BRG
22
SCREW
23
SEAL,OIL(35X43X5)
25
CASE,FINAL GEAR BEARING
26-1
PLUG
26-2
PLUG,16X8
27
BOLT
28
BOLT
29
PLUG,30X9
30
O RING(D:3.1,ID:26.4)
31-1
PLUG
31-2
PLUG(MAGNETO)
32
GASKET(13.8X18.8X4.8) (NAS)
33
WASHER
34
NUT
35
SPRING
36
CIRCLIP
37
SEAL,OIL(30X40.5X5.5)
38
YOKE COMP,UNIVERSAL JOINT
39
SHAFT,PROPELLER
