TRANSMISSION

VL800T BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

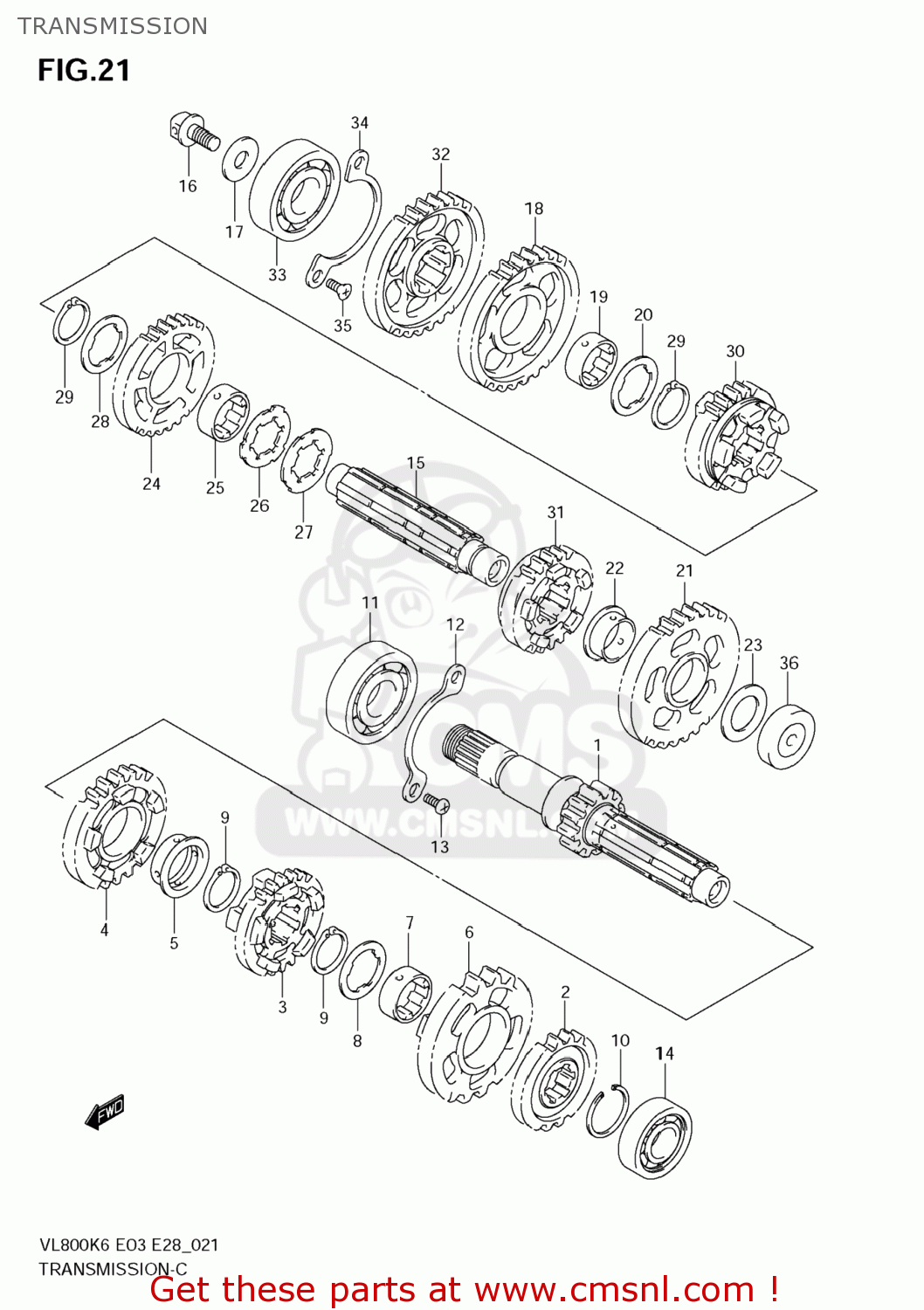

Transmission diagram VL800T BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

TRANSMISSION VL800T BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

TRANSMISSION VL800T BOULEVARD C50 2006 (K6) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

2412041F00
ref: 1

SHAFT,COUNTER

€ 192.00

2

2422138A01
ref: 2

GEAR,2ND DRIVE(NT:19)

€ 91.50

3

2423141F00
ref: 3

GEAR,3RD DRIVE(NT:22)

€ 104.50

4

2424141F00
ref: 4

GEAR,4TH DRIVE(NT:25)

€ 117.00

5

2432219F00
ref: 5

BUSH

€ 12.50

6

2425141F00
ref: 6

GEAR,5TH DRIVE(NT:27)

€ 104.50

7

2425238A10
ref: 7

BUSH,6TH DRIVE GEAR

€ 10.50

8

0916725016
ref: 8

WASHER,LOCK

€ 3.00

9

0938025003
ref: 9

RING,SNAP

€ 3.00

10

0938025014
ref: 10

CIRCLIP

€ 4.00

11

0926225080
ref: 11

BEARING(25X62X17)

€ 21.50

12

2474138A00
ref: 12

RETAINER,CNTR SHAFT BEARING

€ 4.00

13

0912506110
ref: 13

BOLT(6X12)

€ 2.50

14

0926220139
ref: 14

BEARING(20X47X14)

€ 27.50

15

2413138A03
ref: 15

SHAFT,DRIVE

€ 106.50

16

2413538A02
ref: 16

NOZZLE,DRIVE SHAFT

€ 5.00

17

0821110305
ref: 17

WASHER

€ 3.00

18

2431141F00
ref: 18

GEAR,1ST DRIVEN(NT:32)

€ 107.50

19

2433207A00
ref: 19

BUSH

€ 9.50

20

0916728001
ref: 20

WASHER,LOCK

€ 3.00

21

2432141F00
ref: 21

GEAR,2ND DRIVEN(NT:31)

€ 95.50

22

0930122002
ref: 22

BUSH

€ 7.50

23

0918120251
ref: 23

SHIM(20X34X1)

€ 3.00

24

2433141F00
ref: 24

GEAR,3RD DRIVEN(NT:27)

€ 91.50

25

2433207A00
ref: 25

BUSH

€ 9.50

26

0916928001
ref: 26

WASHER

€ 3.00

27

0916728002
ref: 27

WASHER,LOCK

€ 3.00

28

0916728001
ref: 28

WASHER,LOCK

€ 3.00

29

083313128A
ref: 29

CIRCLIP

€ 2.50

30

2434141F00
ref: 30

GEAR,4TH DRIVEN(NT:25)

€ 117.00

31

2435141F00
ref: 31

GEAR,5TH DRIVEN(NT:22)

€ 80.00

32

2462138A00
ref: 32

GEAR,REDUCTION DRIVE(NT:30)

€ 83.50

33

0926220073
ref: 33

BEARING(20X52X15)

€ 19.00

34

2475138A00
ref: 34

RETAINER,DRIVE SHAFT BEARING

€ 4.00

35

0912606011
ref: 35

SCREW(6X12)

€ 2.00

36

0926220080
ref: 36

BEARING(20X52X15)

€ 21.50
