FRONT CALIPER

VS1400GLF 1987 H) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

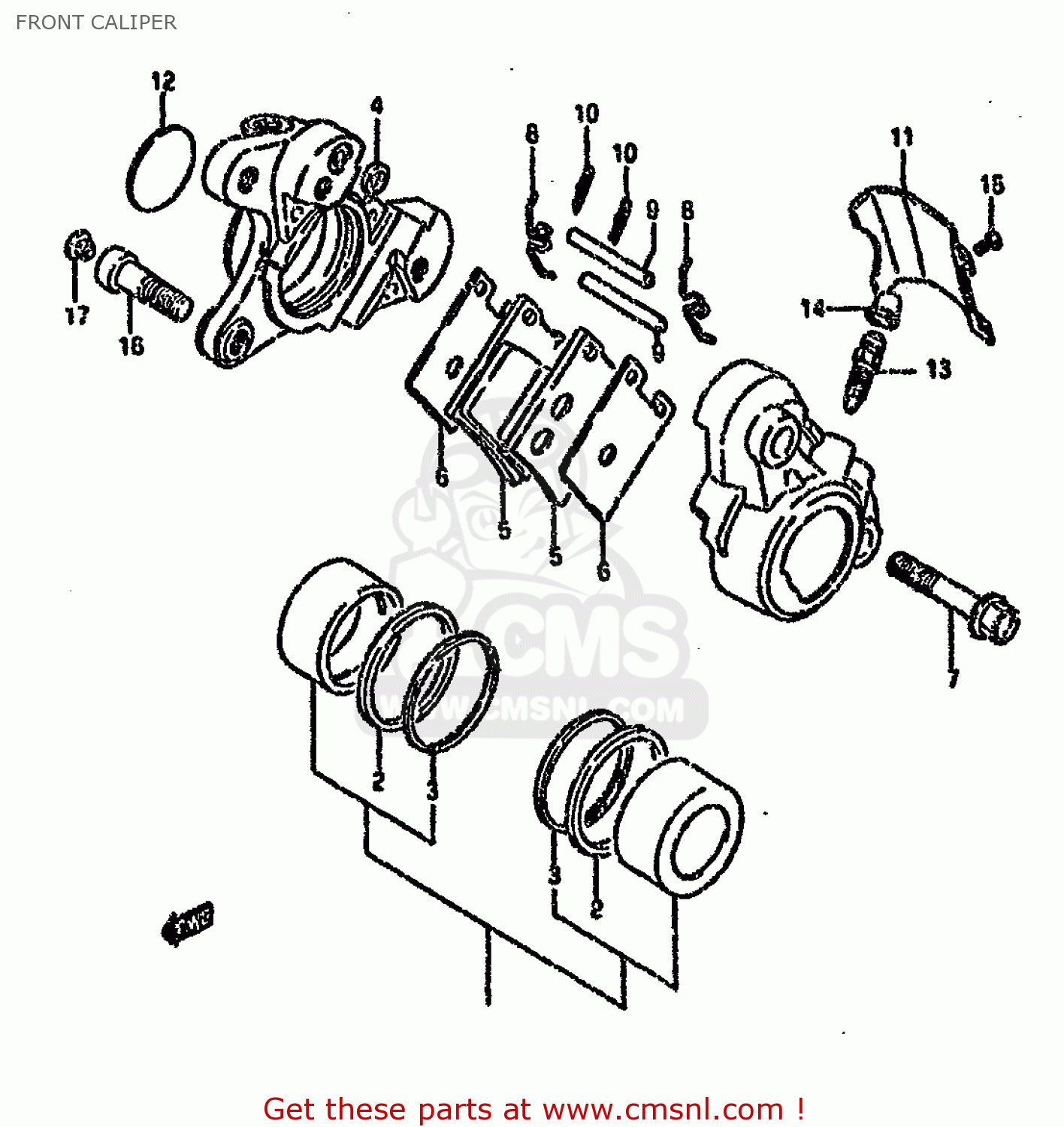

Front caliper diagram VS1400GLF 1987 H) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

FRONT CALIPER VS1400GLF 1987 H) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

FRONT CALIPER VS1400GLF 1987 H) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

0

5910038B10
ref: 0
MODEL H/J/K/L 59100-

CALIPER ASSEMBLY,FRONT,RIGHT

€ 626.00

0

5910038B11
ref: 0
MODEL M/N/P/R/S

CALIPER ASSEMBLY,FRONT,RIGHT

€ 626.00

1-1

5910038810
ref: 1-1
MODEL H/J/K/L 59100-

PISTON SET

€ 154.50

1-2

5910038811
ref: 1-2
MODEL M/N/P/R/S

PISTON SET

€ 154.50

2

5910724A00
ref: 2

SEAL,PISTON

€ 30.50

3

5910824A00
ref: 3

SEAL,WIPER

€ 37.50

4

6910734200
ref: 4

SEAL,JOINT

€ 12.00

5

5913038B10
ref: 5

PAD

€ 41.50

6

5937133410
ref: 6

SHIM,PAD

€ 15.00

7

5914516700
ref: 7

BOLT,HOUSING

€ 8.00

8

5914316700
ref: 8

SPRING

€ 7.50

9

6914145000
ref: 9

PIN,PAD

€ 6.50

10

6914245000
ref: 10

CLIP,PAD PIN

€ 4.50

11-1

5915138B00
ref: 11-1
MODEL H/J/K/L/M/N/P/

COVER,CALIPER

€ 58.00

11-2

5915138B01
ref: 11-2
MODEL S

COVER,CALIPER HOUSING,DUST

€ 58.00

12

5915224A00
ref: 12

CAP,CALIPER

€ 23.50

13

5912118410
ref: 13

BLEEDER

€ 8.00

14

5515666310
ref: 14

CAP,BLEEDER PLUG

€ 6.00

15-1

5915338B00
ref: 15-1
MODEL H/J/K/L/M/N/P/

SCREW,CALIPER COVER (4X

€ 7.50

15-2

5915338B10
ref: 15-2
MODEL S

SCREW,CALIPER COVER(4X6)

€ 7.50

16

0910610038
ref: 16

BOLT(10X33)

€ 4.50

17

0925008014
ref: 17

CAP(OD:12)

€ 3.50
