DECOMP SHAFT

VS1400GLF 1990 (L) (E01 E04 E17 E21 E22 E39)

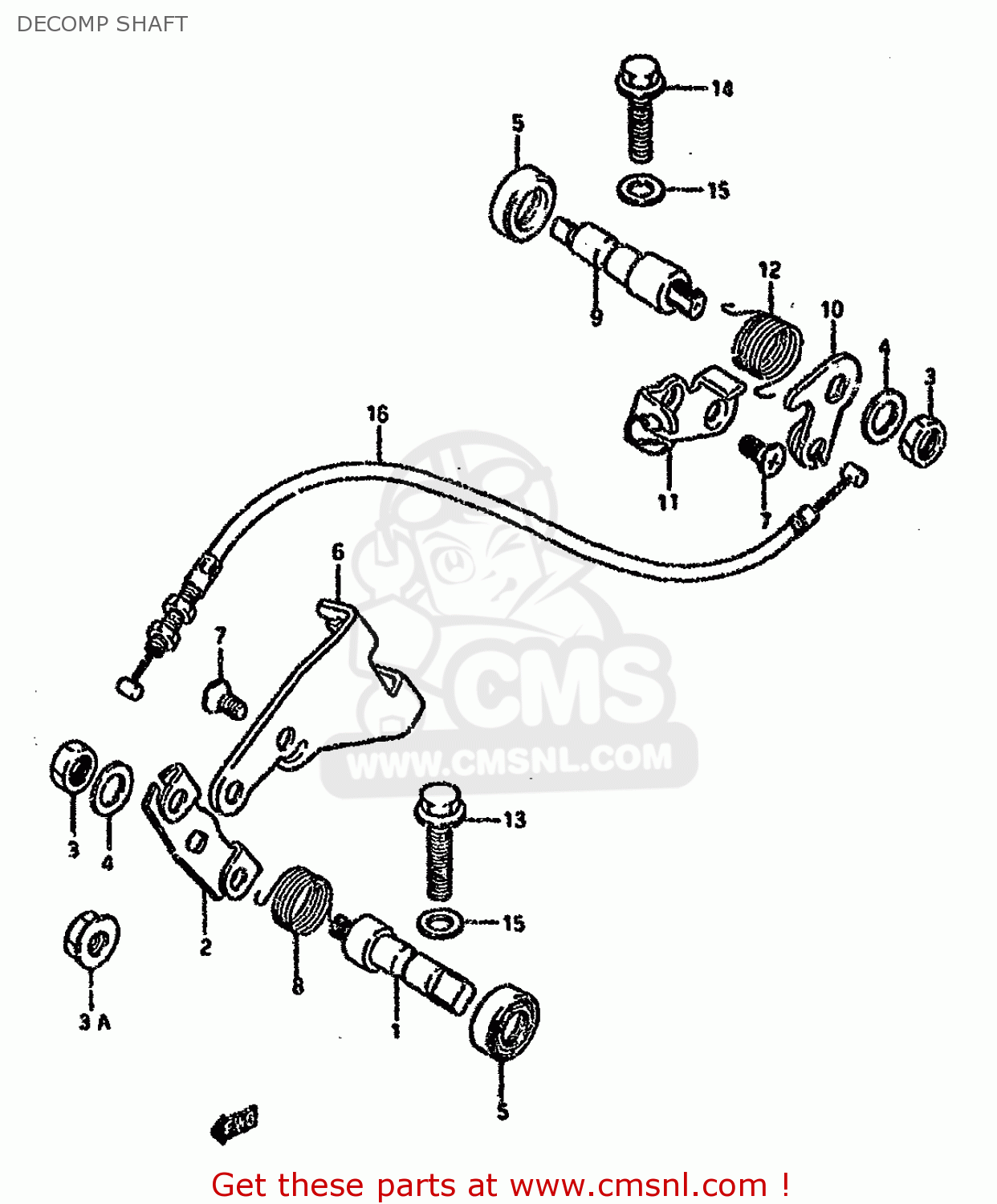

Decomp shaft diagram VS1400GLF 1990 (L) (E01 E04 E17 E21 E22 E39)

DECOMP SHAFT VS1400GLF 1990 (L) (E01 E04 E17 E21 E22 E39)

DECOMP SHAFT VS1400GLF 1990 (L) (E01 E04 E17 E21 E22 E39)

prices are in EUR

ref

part #

description

quantity

1

1293938B00
ref: 1

SHAFT,DECOMP FR

€ 39.50

2

1294238B03
ref: 2

LEVER,DECOMP SHAFT FR

€ 4.00

3-1

0831022085
ref: 3-1
MODEL H/J/K/L/M/N/P

NUT 8MM

€ 2.00

3-2

0831000087
ref: 3-2
MODEL R

NUT

€ 2.00

3A

0831610087
ref: 3A
MODEL S

NUT

€ 2.50

4-1

0832211084
ref: 4-1
MODEL H/J/K/L/M/N/P

WASHER

€ 1.50

4-2

0832201087
ref: 4-2
MODEL R/S

WASHER

€ 2.00

5

0928210012
ref: 5

SEAL,OIL(10X20X6)

€ 7.50

6

1294438B02
ref: 6

HOLDER,DECOMP CABLE FR

€ 6.50

7-1

0912605006
ref: 7-1
MODEL H/J/K/L/M/N/P/

SCREW(5X10)

€ 2.00

7-2

0212205107
ref: 7-2
MODEL S

SCREW

€ 1.00

8

0944817029
ref: 8

SPRING

€ 6.50

9

1294138B00
ref: 9

SHAFT,DECOMP RR

€ 32.50

10

1295238B01
ref: 10

LEVER,DECOMP SHAFT RR

€ 3.00

11

1295038B00
ref: 11

HOLDER,DECOMP CABLE RR

€ 10.50

12

0944817023
ref: 12

SPRING

€ 4.00

13

0155006307
ref: 13

BOLT

€ 2.00

14

0155006257
ref: 14

BOLT

€ 2.50

15

0916806023
ref: 15

GASKET(5.8X13X1.2) (NAS)

€ 2.00

16

5891038B10
ref: 16

CABLE ASSEMBLY,DECOMPRESSION,REAR

€ 54.50
