MUFFLER (MODEL S)

VS1400GLP 1987 (H) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

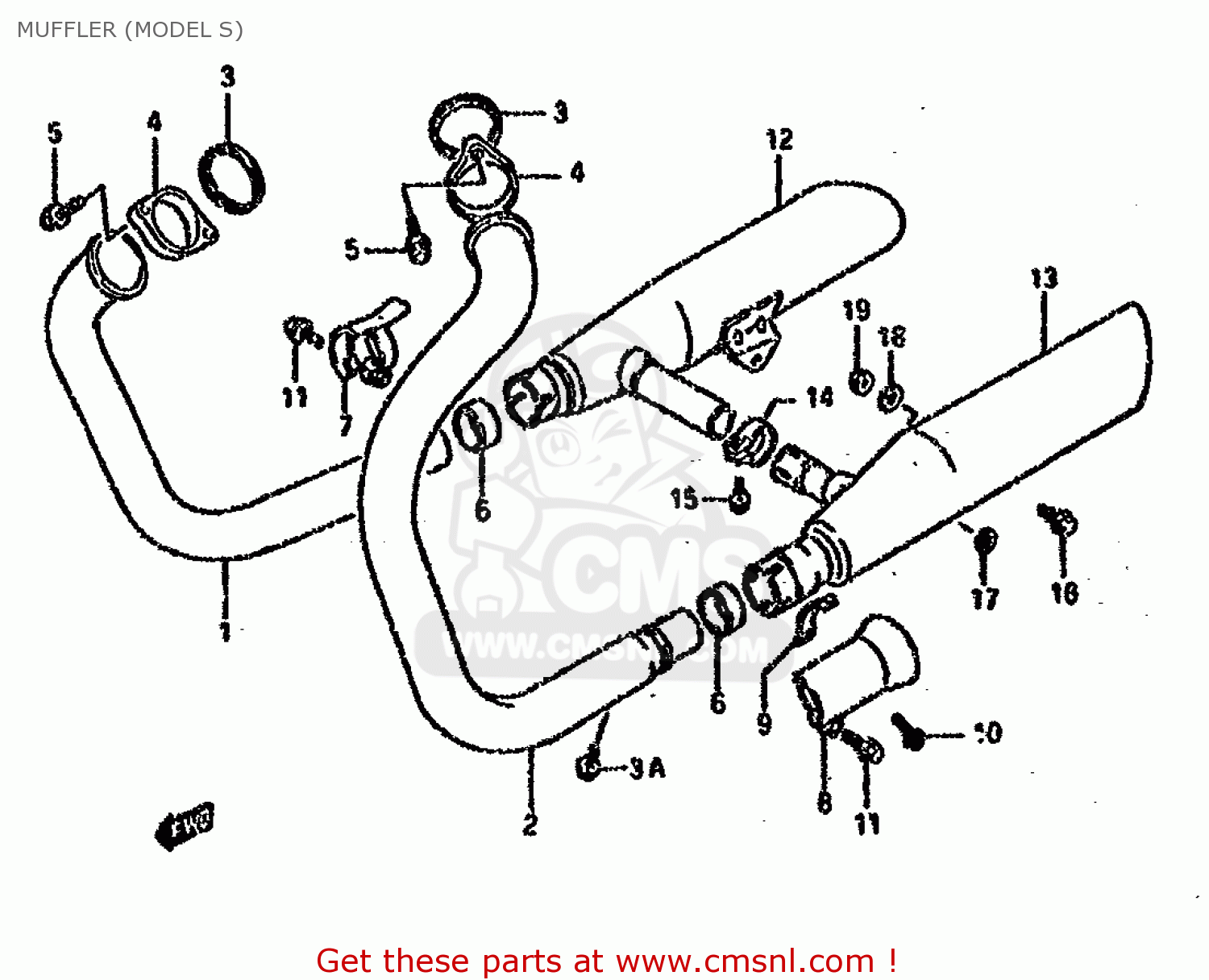

Muffler (model s) diagram VS1400GLP 1987 (H) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

MUFFLER (MODEL S) VS1400GLP 1987 (H) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)
MUFFLER (MODEL S) VS1400GLP 1987 (H) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)
MUFFLER (MODEL S) VS1400GLP 1987 (H) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
1415038B02
ref: 1
PIPE,EXHAUST R
€ 231.00
2
1416038B02
ref: 2
PIPE,EXHAUST,LEFT
€ 346.50
3
1418145C00
ref: 3
GASKET,EXHAUST PIPE (NAS)
1418145C00
€ 6.50
4
1418238A01
ref: 4
CLAMP,EXHAUST PIPE
€ 21.00
5
0910408026
ref: 5
BOLT(8X35)
0910408026
€ 4.00
6
1477138B01
ref: 6
CONNECTOR,MUFFLER
1477138B01
€ 25.50
7
1445038B02
ref: 7
CLAMP,CONNECTOR,R
1445038B02
€ 152.00
8
1446038B02
ref: 8
CLAMP,CONNECTOR,L
1446038B02
€ 312.00
9
1478524A00
ref: 9
CLAMP,MUFFLER COVER
1478524A00
€ 36.50
10
0154706207
ref: 10
BOLT
0154706207
€ 2.50
11
0910308241
ref: 11
BOLT(8X35)
0910308241
€ 7.50
12
1431038B51
ref: 12
BODY,MUFFLER,R
1431038B51
€ 398.00
13
1434038B51
ref: 13
BODY,MUFFLER,L
1434038B51
€ 368.50
14
1477238B00
ref: 14
CLAMP,EXHAUST COUPLER
1477238B00
€ 6.00
15
0155006257
ref: 15
BOLT
0155006257
€ 2.50
16
0155008307
ref: 16
BOLT
0155008307
€ 3.50
17
0832211088
ref: 17
WASHER
0832211088
€ 2.00
18
0916008004
ref: 18
WASHER
0916008004
€ 2.50
19
0831610083
ref: 19
NUT
0831610083
€ 3.00
13
1431038B20
ref: 13
E18,E39
MUFFLER, RH
€ 448.50
14-1
1434038B10
ref: 14-1
BODYCOMP,MUFFL
€ 381.00
14-2
1434038B02H01
ref: 14-2
MODEL J E1
BODY,MUFFLER
€ 368.50
14-3
1434038B51
ref: 14-3
MODEL M/N/P/R E2,E4,
BODY,MUFFLER,L
1434038B51
€ 368.50
15
1434038B20
ref: 15
E18,E39
MUFFLER, LH
€ 0.00
16
1477238B00
ref: 16
CLAMP,EXHAUST COUPLER
1477238B00
€ 6.00
17-1
0151706257
ref: 17-1
MODEL H/J/K/L/M/N
BOLT 6X25
€ 2.50
17-2
0155006257
ref: 17-2
MODEL P/R
BOLT
0155006257
€ 2.50
18-1
0110708307
ref: 18-1
MODEL H/J/K/L/M/N
BOLT
€ 2.50
18-2
0155008307
ref: 18-2
MODEL P/R
BOLT
0155008307
€ 3.50
19
0832211088
ref: 19
WASHER
0832211088
€ 2.00
20
0916008004
ref: 20
WASHER
0916008004
€ 2.50
21-1
0831626088
ref: 21-1
MODEL H/J/K/L/M/N
NUT
0831626088
€ 3.00
21-2
0831620087
ref: 21-2
MODEL P
NUT
0831620087
€ 3.00
21-3
0831610087
ref: 21-3
MODEL R
NUT
0831610087
€ 2.50
