WIRING HARNESS (MODEL S)

VS1400GLP 1990 (L) (E01 E04 E17 E21 E22 E39)

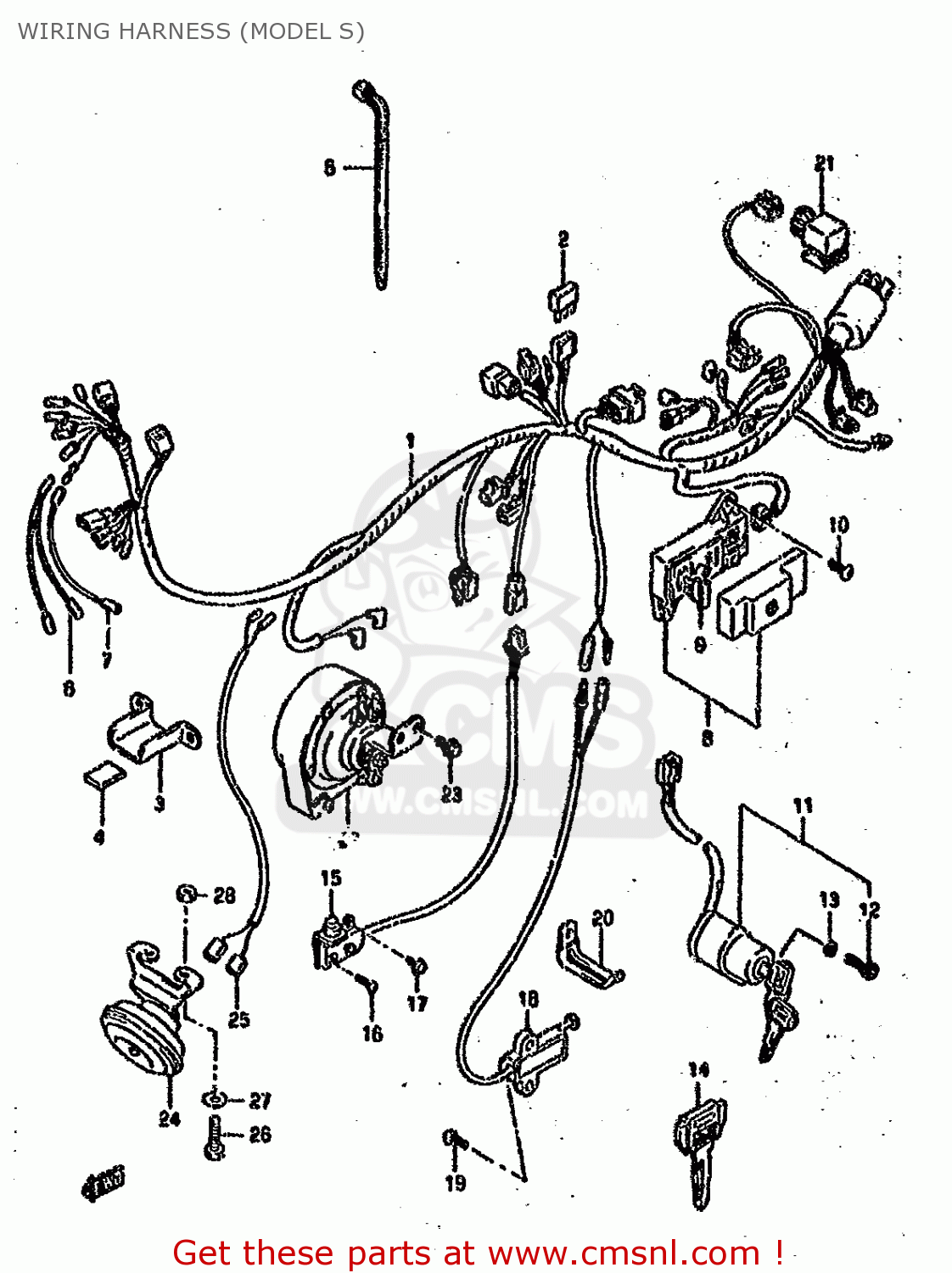

Wiring harness (model s) diagram VS1400GLP 1990 (L) (E01 E04 E17 E21 E22 E39)

WIRING HARNESS (MODEL S) VS1400GLP 1990 (L) (E01 E04 E17 E21 E22 E39)
WIRING HARNESS (MODEL S) VS1400GLP 1990 (L) (E01 E04 E17 E21 E22 E39)
WIRING HARNESS (MODEL S) VS1400GLP 1990 (L) (E01 E04 E17 E21 E22 E39)
prices are in EUR
ref
part #
description
quantity
1
3661039B01
ref: 1
HARNESS,WIRING
3661039B01
€ 365.00
2
3661138A00
ref: 2
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
3
3661938B00
ref: 3
GUIDE,WIRING HARNESS
3661938B00
€ 6.50
4
3692038B00
ref: 4
CUSHION
€ 4.50
5-1
0940714403
ref: 5-1
CLAMP(L:125)
0940714403
€ 2.50
5-2
0940714407
ref: 5-2
CLAMP(L:145)
0940714407
€ 4.00
5-3
0940718403
ref: 5-3
CLAMP L:165
€ 2.50
6
3685238B10
ref: 6
WIRE,CLUTCH SW CONNECTOR
3685238B10
€ 5.50
7-1
3685238B10
ref: 7-1
WIRE,CLUTCH SW CONNECTOR
3685238B10
€ 5.50
7-2
3685339B00
ref: 7-2
E24
WIRE, LIGHTING SWITCH
€ 0.00
8
3674019C00
ref: 8
BOX ASSY,FUSE
3674019C00
€ 88.00
9-1
0948125101
ref: 9-1
FUSE (25A)
0948125101
€ 2.50
9-2
0948110101
ref: 9-2
FUSE(10A)
0948110101
€ 2.50
10
0214206163
ref: 10
SCREW
0214206163
€ 2.50
11
3711038B02
ref: 11
SWITCH ASSEMBLY,IGNITION
€ 71.50
12
0713005167
ref: 12
BOLT
0713005167
€ 2.50
13
0832101057
ref: 13
WASHER,LOCK
0832101057
€ 2.00
14-1
3714603A00
ref: 14-1
OPT
KEY,BLANK(TYPE:C)
3714603A00
€ 6.00
14-2
3714603A10
ref: 14-2
OPT
KEY,BLANK(TYPE:D)
3714603A10
€ 6.00
14-3
3714603A20
ref: 14-3
OPT
KEY,BLANK(TYPE:E)
3714603A20
€ 6.00
14-4
3714603A30
ref: 14-4
OPT
KEY,BLANK(TYPE:F)
3714603A30
€ 6.00
15
3774038B00
ref: 15
SWITCH ASSY,STOP LAMP
3774038B00
€ 79.00
16
0211204163
ref: 16
SCREW 4X16
0211204163
€ 1.00
17
0214204063
ref: 17
SCREW
€ 1.50
18
3784039A22
ref: 18
SWITCH ASSY,SIDE STAND
3784039A22
€ 87.50
19
0211276203
ref: 19
SCREW
€ 2.50
20
0940406206
ref: 20
CLAMP(L:45)
€ 2.50
21
3874024X50
ref: 21
RELAY ASSY
3874024X50
€ 37.50
22
3850038B01
ref: 22
HORN ASSY
3850038B01
€ 112.50
23
0155006123
ref: 23
BOLT
0155006123
€ 2.50
24
3850038B10
ref: 24
E4,E22,E34,E37
HORN ASSY
3850038B10
€ 83.00
25
3859538B10
ref: 25
WIRE,HORN LEAD
€ 8.00
26
0155006303
ref: 26
E4,E22,E34,E37
BOLT
0155006303
€ 2.50
27
0832201063
ref: 27
E4,E22,E34,E37
WASHER
0832201063
€ 2.00
28
0831000063
ref: 28
E4,E22,E34,E37
NUT 6MM
0831000063
€ 2.00
19
0215204067
ref: 19
SCREW
€ 1.50
20-1
3784039A11
ref: 20-1
MODEL H
SWITCH ASSEMBLY,SIDE STAND
€ 87.50
20-2
3784039A20
ref: 20-2
MODEL J
SWITCH ASSEMBLY,SIDE STAND
€ 87.50
20-3
3784039A21
ref: 20-3
MODEL K/L/M/N/P/R
SWITCH ASSEMBLY,SIDE STAND
3784039A21
€ 87.50
21-1
0211206205
ref: 21-1
MODEL H/J/K/L/M
SCREW
€ 2.00
21-2
0211276205
ref: 21-2
MODEL N/P/R
SCREW
€ 2.50
22
0832121064
ref: 22
WASHER,LOCK
0832121064
€ 2.00
23
0832221064
ref: 23
WASHER
0832221064
€ 2.00
24
0940406206
ref: 24
CLAMP(L:45)
€ 2.50
24A
0940406401
ref: 24A
MODEL J/K/L/M/N/P/R
CLAMP L:35
0940406401
€ 2.50
25
3874038B00
ref: 25
RELAY ASSY
€ 37.50
26
3850038B01
ref: 26
E1,E2,E21,E22,E24
HORN ASSY
3850038B01
€ 112.50
27-1
0151706125
ref: 27-1
MODEL J/K/L/M/N/P
BOLT 6X12
0151706125
€ 2.50
27-2
0155006123
ref: 27-2
MODEL R
BOLT
0155006123
€ 2.50
28
3850038B10
ref: 28
E4,E15,E16,E17,E18,E
HORN ASSY
3850038B10
€ 83.00
29
3859538B10
ref: 29
E4,E15,E16,E17,E18,E
WIRE,HORN LEAD
€ 8.00
