CLUTCH

VS1400GLP BOULEVARD S83 2007 (K7) CALIFORNIA (E33)

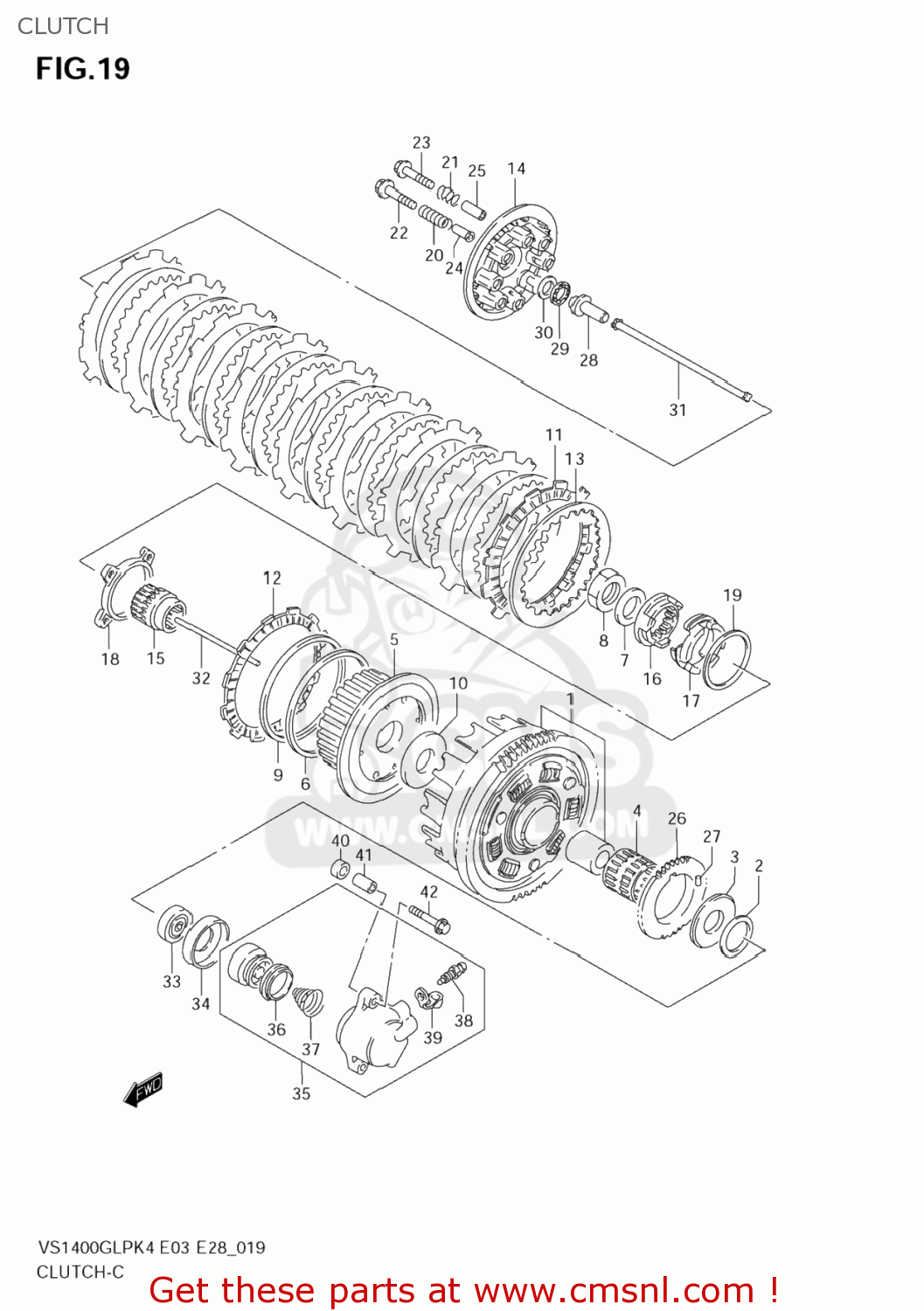

Clutch diagram VS1400GLP BOULEVARD S83 2007 (K7) CALIFORNIA (E33)

CLUTCH VS1400GLP BOULEVARD S83 2007 (K7) CALIFORNIA (E33)
CLUTCH VS1400GLP BOULEVARD S83 2007 (K7) CALIFORNIA (E33)
CLUTCH VS1400GLP BOULEVARD S83 2007 (K7) CALIFORNIA (E33)
prices are in EUR
ref
part #
description
quantity
1
2120038823
ref: 1
GEAR ASSY,PRI DRIVEN
€ 468.00
2
0916025066
ref: 2
WASHER(25X38X2.5)
0916025066
€ 6.00
3
0916025037
ref: 3
WASHER(25X54X2.5)
0916025037
€ 9.00
4
0926335017
ref: 4
BEARING(35X40X35.8)
0926335017
€ 36.50
5
2141038B00
ref: 5
HUB,CLUTCH SLEEVE
2141038B00
€ 136.00
6
2147137400
ref: 6
SEAT,WAVE WASHER(T:1.4)
2147137400
€ 8.00
7
0916422008
ref: 7
WASHER
€ 8.00
8
0914022011
ref: 8
NUT
0914022011
€ 9.00
9
0916400004
ref: 9
WASHER
0916400004
€ 9.00
10
0916025065
ref: 10
WASHER(25X60X2.5)
€ 15.50
11
2144112D01
ref: 11
PLATE,CLUTCH DRIVE (NAS)
2144112D01
€ 16.50
12
2144237401
ref: 12
PLATE,CLUTCH DRIVE(T:3.5) (NAS)
2144237401
€ 11.50
13
2145105A00
ref: 13
PLATE,CLUTCH DRIVEN (NAS)
2145105A00
€ 9.00
14
2146238B00
ref: 14
DISC,CLUTCH PRESSURE
2146238B00
€ 51.50
15
2162138B00
ref: 15
SPACER,CLUTCH SLEEVE HUB
2162138B00
€ 70.00
16
2611138B03
ref: 16
CAM,CLUTCH NO.1
2611138B03
€ 54.50
17
2611238B02
ref: 17
CAM,CLUTCH NO.2
2611238B02
€ 70.50
18
2161338B01
ref: 18
SLIDER,CLUTCH SPRING
2161338B01
€ 65.50
19
0916054002
ref: 19
WASHER(54X62X1)
0916054002
€ 9.50
20
0944014021
ref: 20
SPRING
0944014021
€ 5.00
21
0944014022
ref: 21
SPRING
0944014022
€ 5.00
22
0911606135
ref: 22
BOLT(6X40)
0911606135
€ 3.00
23
0911606136
ref: 23
BOLT(6X35)
0911606136
€ 2.00
24
0918006177
ref: 24
SPACER(6.4X10X22)
0918006177
€ 7.50
25
0918006276
ref: 25
SPACER(6.5X9X24.1)
0918006276
€ 6.50
26
1632138B00
ref: 26
GEAR,OIL PUMP DRIVE
1632138B00
€ 62.50
27
0926106002
ref: 27
PIN(6X6)
0926106002
€ 1.50
28
2312138B00
ref: 28
PIECE,CLUTCH PUSH
2312138B00
€ 25.00
29
0926315003
ref: 29
BEARING(15X28X2)
0926315003
€ 7.00
30
0916015045
ref: 30
WASHER(15.5X28X1)
0916015045
€ 4.00
31
2311038B00
ref: 31
ROD,CLUTCH PUSH,R
2311038B00
€ 19.00
32
2311124A01
ref: 32
ROD,CLUTCH PUSH,L
2311124A01
€ 15.00
33
0928306010
ref: 33
SEAL,OIL(6X34X10.5)
0928306010
€ 14.00
34
2311738A00
ref: 34
RETAINER,CL PUSH ROD OIL SEAL
2311738A00
€ 6.00
35
2316038B00
ref: 35
CYLINDER,CLUTCH RELEASE
2316038B00
€ 122.50
36
2316306B00
ref: 36
CUP
2316306B00
€ 5.50
37
2316405A00
ref: 37
SPRING,CLUTCH CYLINDER
2316405A00
€ 3.50
38
5912101A00
ref: 38
BLEEDER
5912101A00
€ 8.50
39
5912201A00
ref: 39
CAP,BLEEDER
5912201A00
€ 4.50
40
0918009019
ref: 40
09180-08208
SPACER(9X16X11)
€ 7.50
41
0920609011
ref: 41
PIN(6.4X9X23)
0920609011
€ 7.50
42
015500640A
ref: 42
BOLT
015500640A
€ 2.50
