CARBURETOR (FRONT:E18)
VS600GLF 1997 (V) ITALY (E34)

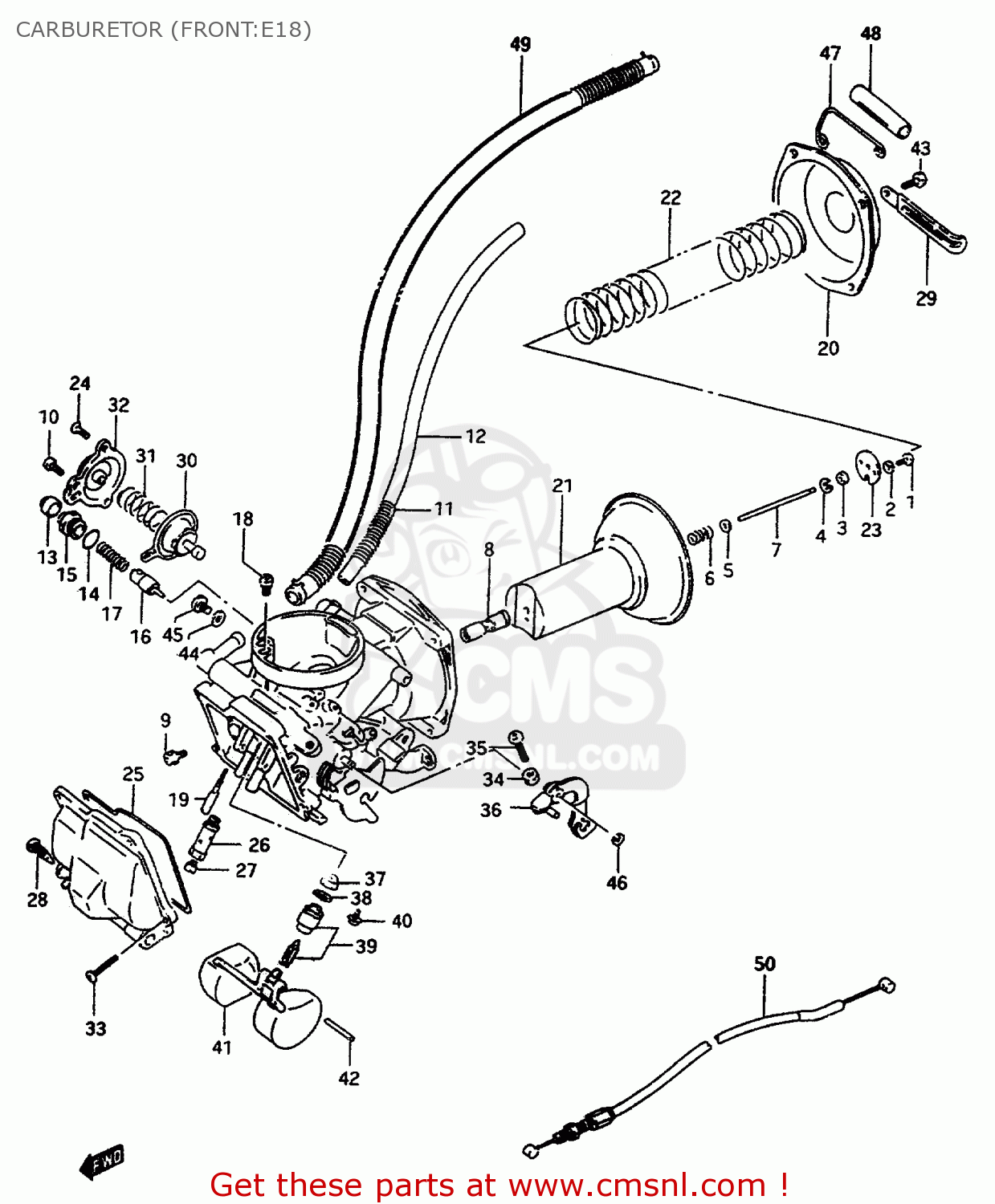

Carburetor (front:e18) diagram VS600GLF 1997 (V) ITALY (E34)
CARBURETOR (FRONT:E18) VS600GLF 1997 (V) ITALY (E34)
×
prices are in EUR
ref
part #
description
quantity
0
1321039E60
ref: 0
CARBURETOR ASSY, FRONT
€ 0.00
1
0211203063
ref: 1
SCREW
€ 2.00
2
0832121033
ref: 2
WASHER,LOCK
€ 1.50
3
1338747010
ref: 3
RING
€ 7.50
4
1339410010
ref: 4
CLIP
€ 4.50
5
1338244030
ref: 5
WASHER
€ 3.50
6
1338844030
ref: 6
SPRING
€ 6.00
7
1338339A00
ref: 7
NEEDLE,JET (5032-3)
€ 0.00
8
0949400588
ref: 8
JET,NEEDLE(P-2)
€ 26.50
9
1360505A10
ref: 9
SCREW
€ 8.50
10
0211204107
ref: 10
SCREW
€ 2.00
11
1368938A00
ref: 11
SPRING
€ 8.50
12
0935250823600
ref: 12
L:600 185
HOSE(5X8.2X600)
€ 13.00
13
1368104010
ref: 13
CAP
€ 3.00
14
1327847090
ref: 14
O RING
€ 2.00
15
1341838A00
ref: 15
HOLDER,GUIDE
€ 11.50
16
1341101400
ref: 16
PLUNGER,STARTER
€ 11.50
17
1341708210
ref: 17
SPRING
€ 4.50
18
0949277002
ref: 18
JET,PILOT AIR,7
€ 13.50
19
0949225007
ref: 19
JET,PILOT(25)
€ 8.50
20
1350238A00
ref: 20
COVER,DIAPHRAGM
€ 34.00
21
1350039E00
ref: 21
DIAPHRAGM ASSY
€ 0.00
22
1350305A10
ref: 22
SPRING,DIAPHRAGM
€ 12.00
23
1338937400
ref: 23
PLATE
€ 5.50
24
0212204103
ref: 24
SCREW,UPPER
€ 2.50
25
1325138A00
ref: 25
O RING,FLOAT CHAMBER
€ 6.50
26
1338505A11
ref: 26
HOLDER,MAIN JET
€ 14.00
27
0949197004
ref: 27
JET,MAIN(97.5)
€ 18.50
28
1324713A00
ref: 28
SCREW,DRAIN
€ 5.50
29
0940406429
ref: 29
CLAMP(L:45)
€ 2.50
30
1348005A10
ref: 30
DIAPHRAGM ASSY
€ 54.50
31
1348145C10
ref: 31
SPRING
€ 5.50
32
1348438A00
ref: 32
COVER
€ 20.50
33
1360219C00
ref: 33
SCREW
€ 3.00
34
0831000047
ref: 34
NUT
€ 2.00
35
0211204307
ref: 35
SCREW
€ 0.00
36
1355445C00
ref: 36
LEVER ASSEMBLY
€ 38.50
37
1337684110
ref: 37
FILTER
€ 6.50
38
1337444080
ref: 38
O-RING,NEEDLE VALVE
€ 6.00
39
1337039A00
ref: 39
VALVE ASSY,NEEDLE
€ 67.50
40
1360205A10
ref: 40
SCREW
€ 4.00
41
1325005A10
ref: 41
FLOAT
€ 34.00
42
1325420010
ref: 42
PIN,FLOAT
€ 3.00
43
0211205127
ref: 43
SCREW
€ 2.50
44
1352346110
ref: 44
GASKET,DRAIN PLUG (NAS)
€ 3.00
45
0211205063
ref: 45
SCREW
€ 2.00
46
1341538300
ref: 46
E RING
€ 2.00
47
1367138A00
ref: 47
CLIP
€ 10.50
48
0935260103600
ref: 48
L:600 50
HOSE(6X10X600)
€ 18.00
49
0935465113600
ref: 49
L:600 550
HOSE(6.5X11.5X600)
€ 26.00
50
1364138A00
ref: 50
CABLE,IDLE SYNCRO
€ 16.50
49-1
1327947070
ref: 49-1
SCREW,PILOT
€ 11.50
49-2
1327947070
ref: 49-2
E17,E22
SCREW,PILOT
€ 11.50
50
1326847070
ref: 50
SPRING
€ 5.00
51
1329529900
ref: 51
O RING,PILOT AIR SCREW
€ 4.00
52
1329129900
ref: 52
WASHER
€ 2.00
53
0935465113600
ref: 53
L:600 550
HOSE(6.5X11.5X600)
€ 26.00
54
1364138A00
ref: 54
CABLE,IDLE SYNCRO
€ 16.50
