WIRING HARNESS (MODEL T/V)
VS600GLU 1995 (S) GERMANY (E22)

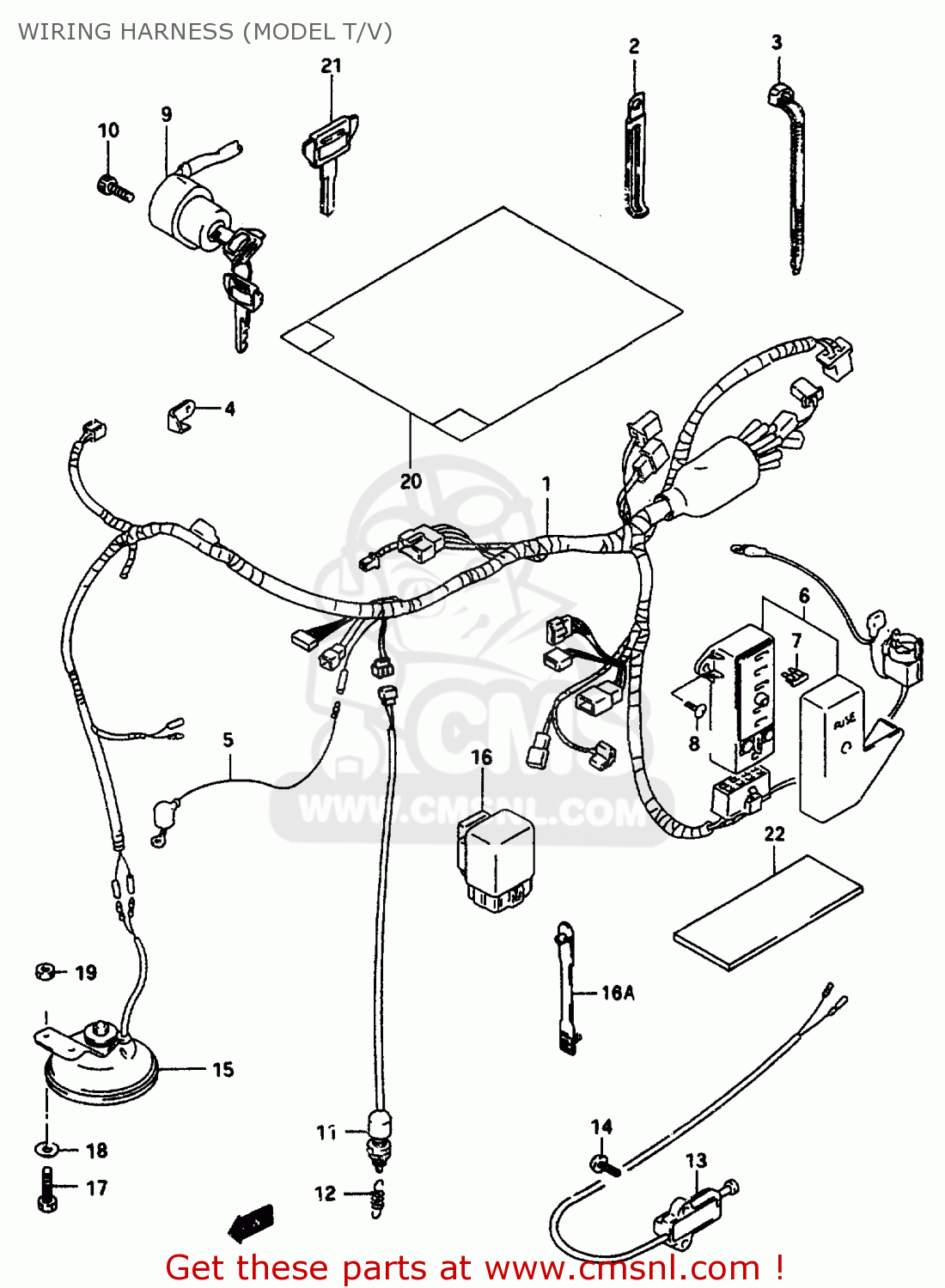

Wiring harness (model t/v) diagram VS600GLU 1995 (S) GERMANY (E22)
WIRING HARNESS (MODEL T/V) VS600GLU 1995 (S) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661039AB0
ref: 1-1
MODEL T
HARNESS, WIRING
€ 309.00
1-2
3661039AE0
ref: 1-2
MODEL V
HARNESS,WIRING
€ 544.00
2-1
0940406429
ref: 2-1
CLAMP(L:45)
€ 2.50
2-2
0940406431
ref: 2-2
CLAMP(L:65)
€ 2.50
3-1
0940711401
ref: 3-1
CLAMP(L:95)
€ 2.50
3-2
0940714403
ref: 3-2
CLAMP(L:125)
€ 2.50
3-3
0940718403
ref: 3-3
CLAMP L:165
€ 2.50
4
3668738A00
ref: 4
PLATE,COUPLER HOLDER
€ 2.00
5
3685117E00
ref: 5
WIRE,WATER TEMP GAUGE LEAD
€ 7.50
6
3674039A00
ref: 6
BOX ASSY,FUSE
€ 93.50
7-1
0948110101
ref: 7-1
FUSE(10A)
€ 2.50
7-2
0948125101
ref: 7-2
FUSE (25A)
€ 2.50
8
0214206163
ref: 8
SCREW
€ 2.50
9
3711038A03
ref: 9
SWITCH ASSEMBLY,IGNITION
€ 74.50
10
0713005163
ref: 10
BOLT
€ 2.00
11
3774031D00
ref: 11
SWITCH ASSY,STOP LAMP
€ 20.50
12
0944306046
ref: 12
SPRING
€ 3.50
13
3784039A22
ref: 13
SWITCH ASSY,SIDE STAND
€ 87.50
14
0211276203
ref: 14
SCREW
€ 2.50
15
3850039A10
ref: 15
HORN ASSY
€ 68.50
16
3874024X50
ref: 16
RELAY ASSY
€ 37.50
16A
0940705403
ref: 16A
CLAMP,L:88
€ 1.50
17
0155006303
ref: 17
BOLT
€ 2.50
18
0832201063
ref: 18
WASHER
€ 2.00
19
0831000063
ref: 19
NUT 6MM
€ 2.00
20
3661815D20
ref: 20
COVER,WIRING HARNESS
€ 12.00
21-1
3714603A00
ref: 21-1
OPT
KEY,BLANK(TYPE:C)
€ 6.00
21-2
3714603A10
ref: 21-2
OPT
KEY,BLANK(TYPE:D)
€ 6.00
21-3
3714603A20
ref: 21-3
OPT
KEY,BLANK(TYPE:E)
€ 6.00
21-4
3714603A30
ref: 21-4
OPT
KEY,BLANK(TYPE:F)
€ 6.00
22
3692002200
ref: 22
COVER,HARNESS
€ 3.00
