AIR CLEANER (REAR)

VS600GLU 1996 (T) GERMANY (E22)

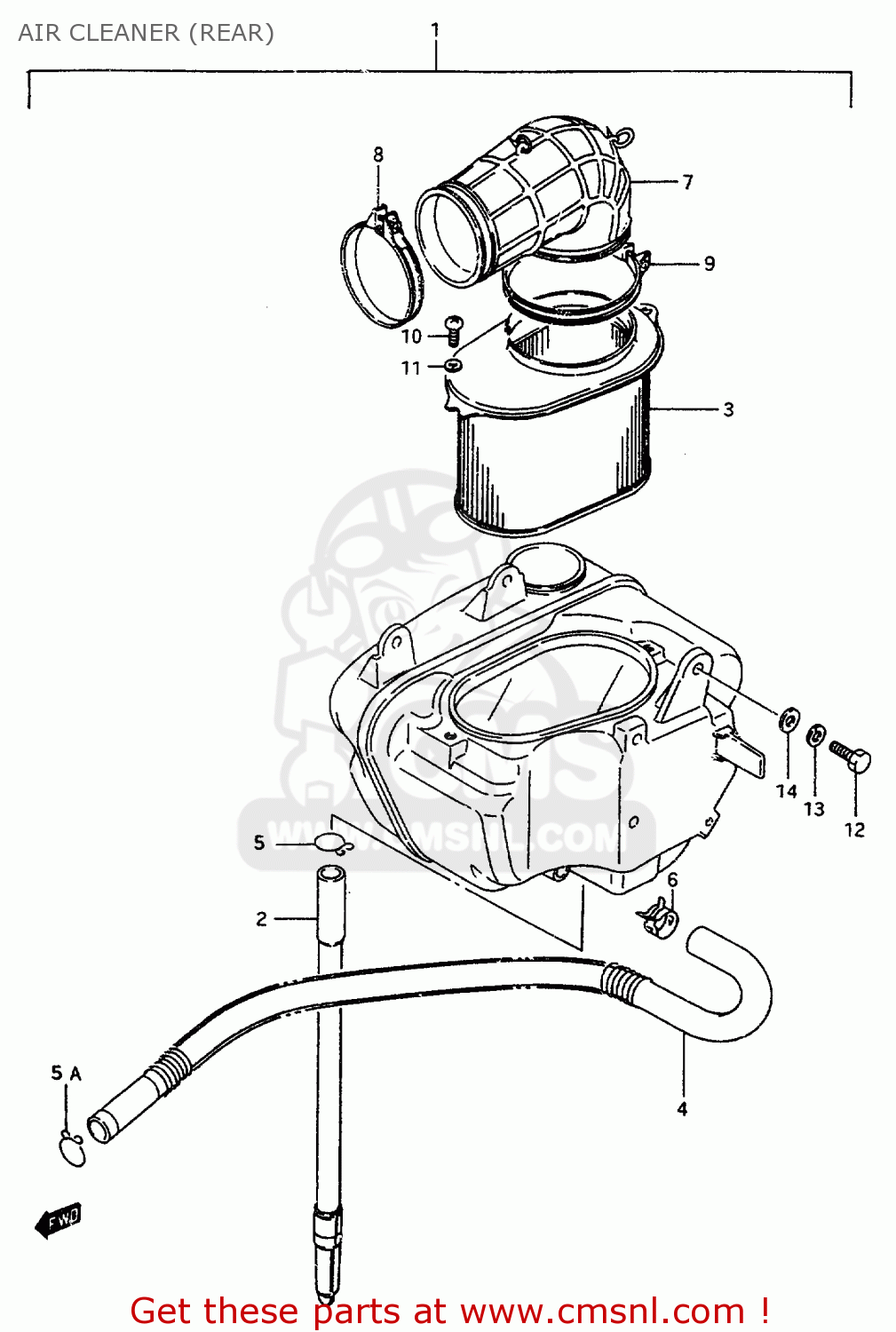

Air cleaner (rear) diagram VS600GLU 1996 (T) GERMANY (E22)

AIR CLEANER (REAR) VS600GLU 1996 (T) GERMANY (E22)

AIR CLEANER (REAR) VS600GLU 1996 (T) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

1370038A61
ref: 1

CLEANER ASSY,AIR RR

€ 188.50

2

1387011458
ref: 2

TUBE,DRAIN

€ 13.50

3

1378038A51
ref: 3

FILTER ASSY

€ 33.00

4

1385038A50
ref: 4

TUBE SET,BREATHER

€ 62.00

5

0940113409
ref: 5

CLIP

€ 2.50

5A

0940114301
ref: 5A

CLIP

€ 2.00

6

0940114402
ref: 6

CLIP

€ 2.00

7

1388138A50
ref: 7

TUBE,AIR CLEANER OUTLET

€ 32.00

8

0940258208
ref: 8

CLAMP

€ 5.50

9

0940278207
ref: 9

CLAMP

€ 7.50

10

0211205083
ref: 10

SCREW

€ 2.00

11

0832101053
ref: 11

LOCK,WASHER

€ 3.00

12

0150006207
ref: 12

BOLT

€ 2.00

13

0832101067
ref: 13

WASHER,LOCK

€ 2.50

14

0916006019
ref: 14

WASHER(6.5X16X1.2)

€ 1.50
