CARBURETOR (FRONT)

VS700GLEP INTRUDER 1987 (H) USA (E03)

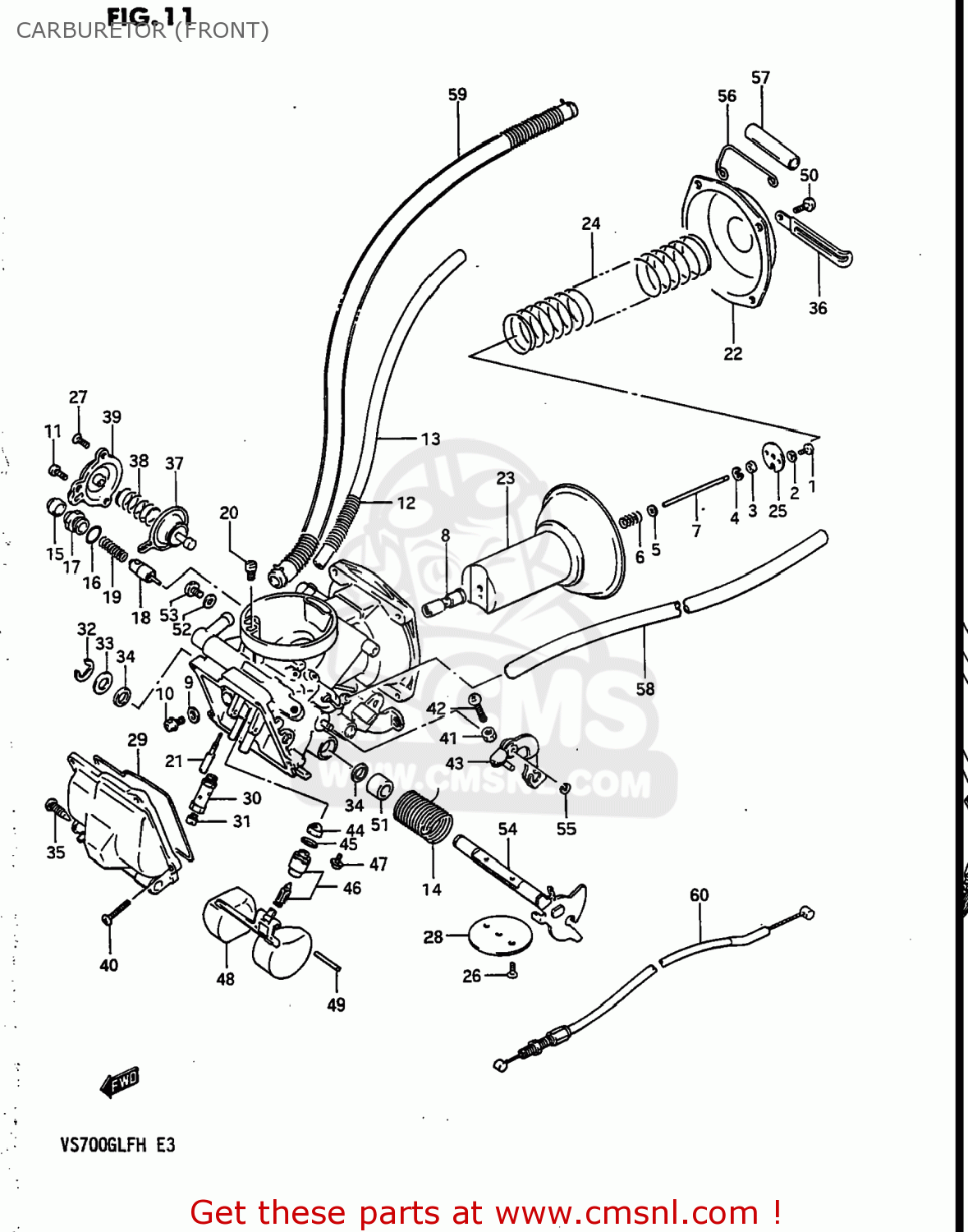

Carburetor (front) diagram VS700GLEP INTRUDER 1987 (H) USA (E03)

CARBURETOR (FRONT) VS700GLEP INTRUDER 1987 (H) USA (E03)
CARBURETOR (FRONT) VS700GLEP INTRUDER 1987 (H) USA (E03)
CARBURETOR (FRONT) VS700GLEP INTRUDER 1987 (H) USA (E03)
prices are in EUR
ref
part #
description
quantity

1321038A00
ref:
13210-39A00
CARBURETOR ASSEMBLY
€ 278.50

1321038A00
ref:
13210-39A00
CARBURETOR ASSEMBLY
€ 278.50

1321038A40
ref:
13210-39A00
CARBURETOR ASSEMBLY
€ 278.50

1321038A40
ref:
13210-39A00
CARBURETOR ASSEMBLY
€ 278.50

1321038A10
ref:
13210-39A10
CARBURETOR ASSEMBLY
€ 276.00

1321038A70
ref:
13210-39A10
CARBURETOR ASSEMBLY
€ 276.00
1
0211203066
ref: 1
02112-0306B
SCREW
€ 2.00
2
0832121036
ref: 2
08321-2103B
LOCK WASHER
0832121036
€ 1.50
3
1338747010
ref: 3
RING
1338747010
€ 7.50
4
1341547070
ref: 4
13394-10010
CAP,LEVER
1341547070
€ 4.50
5
1338244030
ref: 5
WASHER
1338244030
€ 3.50
6
1338844030
ref: 6
SPRING
1338844030
€ 6.00
7
1338338A00
ref: 7
NEEDLE JET
€ 10.00
8
0949400501
ref: 8
JET,NEEDLE
0949400501
€ 28.50
9
1333244080
ref: 9
13382-03110
WASHER,NEEDLE NOZZLE
€ 2.50
10
1360505A10
ref: 10
SCREW
1360505A10
€ 8.50
11
0211204106
ref: 11
02112-0410A
SCREWM4X0.7X10
€ 1.00
12
1368938A00
ref: 12
SPRING
1368938A00
€ 8.50
13
1368438A20
ref: 13
44420-44AR0
HOSE
€ 13.00
14-1
1357338A00
ref: 14-1
SPRING
€ 0.00
14-2
1357338A01
ref: 14-2
SPRING,SHAFT RETURN
€ 0.00
15
1368104010
ref: 15
CAP
1368104010
€ 3.00
16
1327847090
ref: 16
O RING
1327847090
€ 2.00
17
1341838A00
ref: 17
HOLDER,GUIDE
1341838A00
€ 11.50
18
1341138400
ref: 18
13411-01400
PLUNGER
€ 11.50
19
1341708210
ref: 19
SPRING
1341708210
€ 4.50
20
0949270002
ref: 20
09492-70004
JET
€ 9.50
21
0949232004
ref: 21
JET,PILOT(32.5)
0949232004
€ 13.50
22
1350238A00
ref: 22
COVER,DIAPHRAGM
1350238A00
€ 34.00
23
1350005A10
ref: 23
DIAPHRAGM,CARBURETOR
1350005A10
€ 178.00
24
1350305A10
ref: 24
SPRING,DIAPHRAGM
1350305A10
€ 12.00
25
1338937400
ref: 25
PLATE
1338937400
€ 5.50
26
1360444080
ref: 26
SCREW
1360444080
€ 3.50
27
1360338A00
ref: 27
02122-0410A
SCREW
€ 2.50
28
1355138A00
ref: 28
VALVE,THROTTLE
€ 54.00
29
1325105A10
ref: 29
13251-38A00
GASKET,FLOAT CHAMBER
€ 6.50
30-1
1338505A10
ref: 30-1
13385-05A11
HOLDER,MAIN JET
€ 14.00
30-2
1338505A11
ref: 30-2
HOLDER,MAIN JET
1338505A11
€ 14.00
31
0949126013
ref: 31
09491-26019
JET,MAIN (132.5)
0949126013
€ 18.50
32
1361744080
ref: 32
E RING
1361744080
€ 3.50
33
1355747070
ref: 33
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
34
1355605A10
ref: 34
SEAL,THROTTLE SHAFT
1355605A10
€ 3.50
35
1324713A00
ref: 35
13247-02340
SCREW,DRAIN
1324713A00
€ 5.50
36
0940406401
ref: 36
09404-06432
CLAMP L:35
0940406401
€ 2.50
37
1348005A10
ref: 37
DIAPHRAGM ASSY
1348005A10
€ 54.50
38
1348105A10
ref: 38
13481-45C10
SPRING
€ 5.50
39
1348438A00
ref: 39
COVER
1348438A00
€ 20.50
40
1360104148
ref: 40
SCREW
1360104148
€ 2.50
41
1360705A10
ref: 41
08310-00047
NUT
€ 2.00
42
0211204306
ref: 42
02112-0430B
SCREW
€ 2.00
43-1
1355438A00
ref: 43-1
LEVER,ASSY
€ 15.00
43-2
1355438A01
ref: 43-2
13554-45C20
LEVER,ASSEMBLY
€ 38.50
44
1337665010
ref: 44
13376-19F00
FILTER
€ 6.50
45
1337444080
ref: 45
13374-35C00
O-RING,NEEDLE VALVE
1337444080
€ 6.00
46
1337001401
ref: 46
VALVE ASSY,NEEDLE
1337001401
€ 57.50
47
1360205A10
ref: 47
SCREW
1360205A10
€ 4.00
48
1325005A10
ref: 48
FLOAT
1325005A10
€ 34.00
49
1325420010
ref: 49
PIN,FLOAT
1325420010
€ 3.00
50
0211205126
ref: 50
02112-0512A
SCREW 5X12
€ 1.50
51
1357401400
ref: 51
RING,THROTTLE VALVE
€ 0.00
52
1353138A00
ref: 52
09168-05010
WASHER
€ 2.00
53
1360573000
ref: 53
SCREW
1360573000
€ 10.50
54
1355038A00
ref: 54
SHAFT ASSEMBLY,THROTTLE
€ 0.00
55
1329849000
ref: 55
13415-38300
E-RING
€ 2.00
56
1367138A00
ref: 56
CLIP
1367138A00
€ 10.50
57
1368438A00
ref: 57
09352-60103-600
HOSE
€ 18.00
58
1368038A10
ref: 58
13683-38B01
HOSE
€ 19.50
59-1
1368338A10
ref: 59-1
13683-38A21
HOSE
€ 70.00
59-2
1368338A20
ref: 59-2
13683-38A21
HOSE ASSEMBLY
1368338A20
€ 70.00
60
1364138A00
ref: 60
13641-38A01
CABLE,IDLE SYNCRO
1364138A00
€ 16.50
