SECONDARY DRIVE GEAR (MODEL G/H/J/K/L/M)

VS750GLP 1990 (L) (E01 E02 E04 E16 E17 E18 E21 E22 E25 E39)

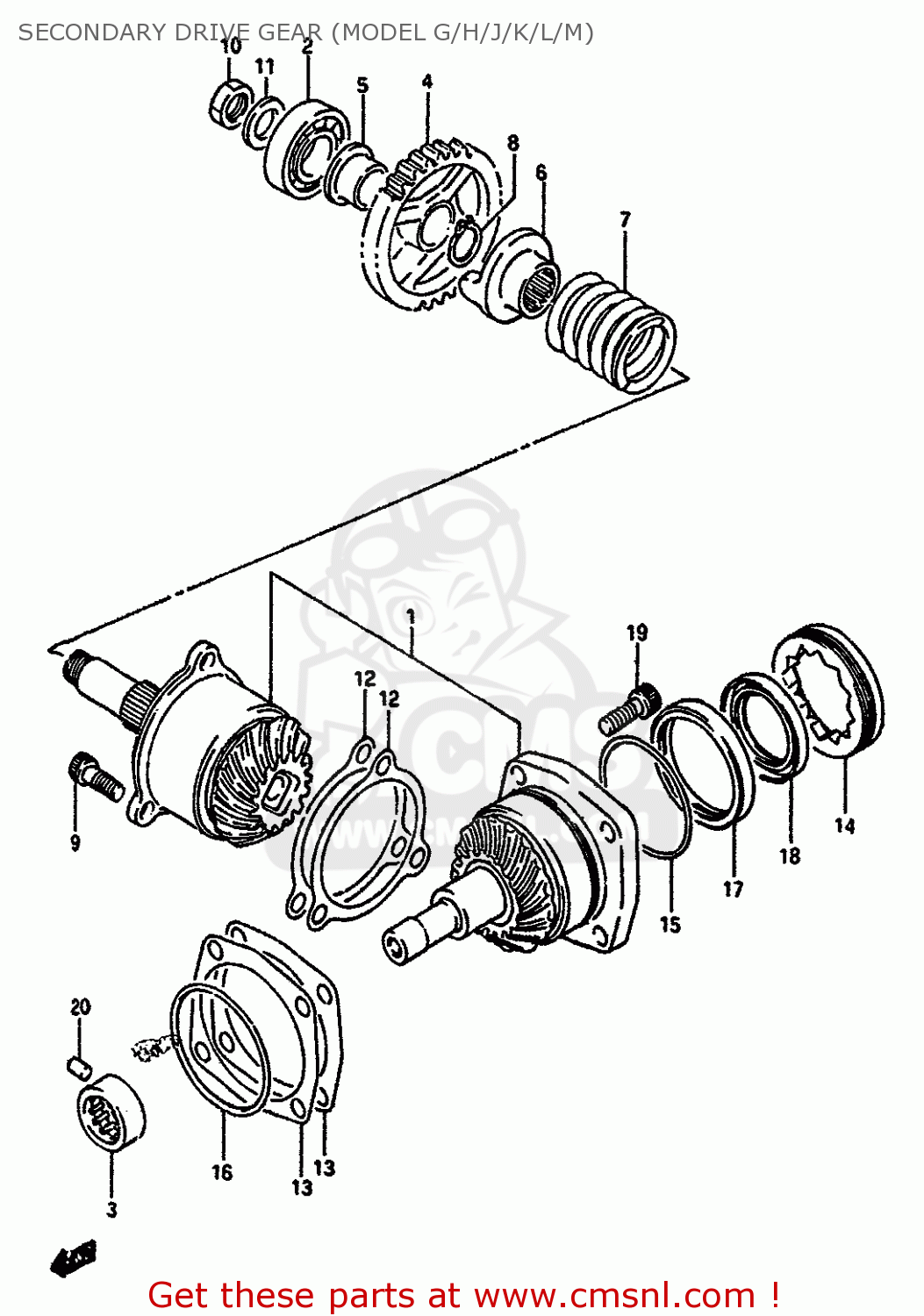

Secondary drive gear (model g/h/j/k/l/m) diagram VS750GLP 1990 (L) (E01 E02 E04 E16 E17 E18 E21 E22 E25 E39)

SECONDARY DRIVE GEAR (MODEL G/H/J/K/L/M) VS750GLP 1990 (L) (E01 E02 E04 E16 E17 E18 E21 E22 E25 E39)

SECONDARY DRIVE GEAR (MODEL G/H/J/K/L/M) VS750GLP 1990 (L) (E01 E02 E04 E16 E17 E18 E21 E22 E25 E39)

prices are in EUR

ref

part #

description

quantity

1

2490038821
ref: 1

GEAR & HOUSING SET,SECONDARY

€ 1,238.50

2

0926220073
ref: 2

BEARING(20X52X15)

€ 19.00

3

0926320038
ref: 3

BEARING(20X34X16)

€ 30.50

4

2463138A00
ref: 4

GEAR,REDUCTION DRIVEN(NT:30)

€ 95.50

5

2463238A00
ref: 5

BUSH,REDUCTION DRIVEN GEAR

€ 13.00

6

2492238A00
ref: 6

DOG,OUTPUT CAM

€ 42.00

7

0944044002
ref: 7

SPRING

€ 15.50

8

0833131218
ref: 8

CIRCLIP,21MM

€ 2.00

9

0711008256
ref: 9

BOLT

€ 3.50

10

0914016014
ref: 10

NUT

€ 4.50

11

0916016029
ref: 11

WASHER(16X29X4)

€ 6.00

12-1

2493538A01030
ref: 12-1

SHIM,SECONDARY DRIVE

€ 4.00

12-2

2493538A01035
ref: 12-2

SHIM,SECONDARY DRIVE

€ 4.00

12-3

2493538A01040
ref: 12-3

SHIM,SECONDARY DRIVE

€ 4.00

12-4

2493538A01050
ref: 12-4

SHIM,SECONDARY DRIVE

€ 4.00

12-5

2493538A01060
ref: 12-5

SHIM,SECONDARY DRIVE GEAR

€ 4.00

13-1

2494505A000A0
ref: 13-1

SHIM,SECONDARY DRIVEN HOUSING

€ 4.00

13-2

2494505A000B0
ref: 13-2

SHIM,SECONDARY DRIVEN HOUSING

€ 4.00

13-4

2494505A000D0
ref: 13-4

SHIM,SECONDARY DRIVEN HOUSING

€ 4.00

13-5

2494505A000E0
ref: 13-5

SHIM,SECONDARY DRIVEN HOUSING

€ 4.00

14

2494238A50
ref: 14

STOPPER,SEC DRIVEN BEARING

€ 34.50

15

0928060003
ref: 15

O RING(D:1.2,ID:59.6)

€ 2.00

16

0928067004
ref: 16

O RING(D:2.1,ID:66.2)

€ 2.50

17

2494338A50
ref: 17

HOUSING,OIL SEAL

€ 54.50

18

0928338016
ref: 18

SEAL,OIL(38X54X8.5)

€ 12.00

19

0711008256
ref: 19

BOLT

€ 3.50

20

0422107129
ref: 20

PIN

€ 1.50
