FRAME (MODEL V)

VS800GL 1994 (R) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

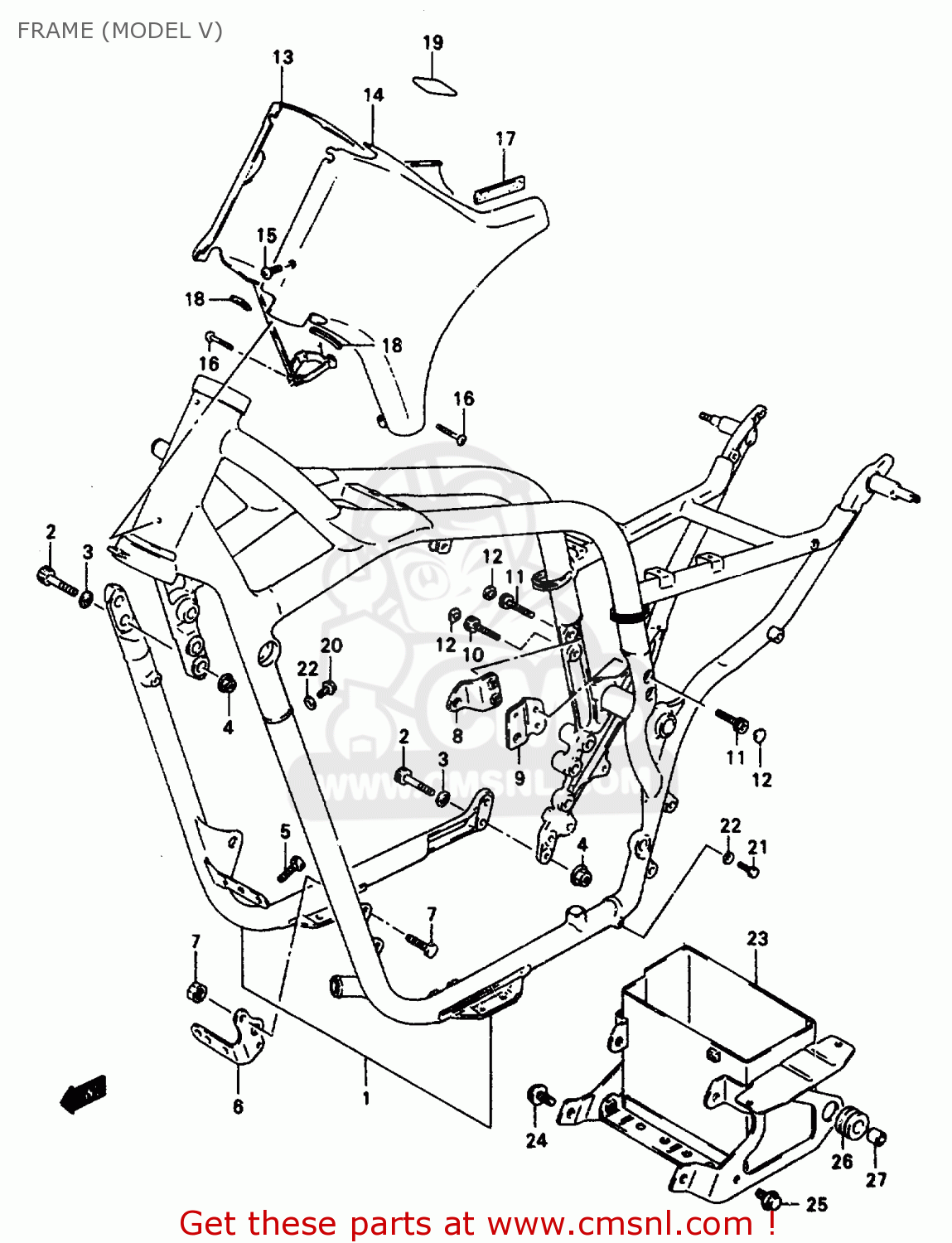

Frame (model v) diagram VS800GL 1994 (R) (E02 E04 E17 E18 E21 E22 E25 E34 E53)

FRAME (MODEL V) VS800GL 1994 (R) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
FRAME (MODEL V) VS800GL 1994 (R) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
FRAME (MODEL V) VS800GL 1994 (R) (E02 E04 E17 E18 E21 E22 E25 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
4110139813Y0N
ref: 1-1
FRAME SET
€ 940.50
1-2
411013981319A
ref: 1-2
FRAME SET(RED)
€ 959.00
1-3
411013981333J
ref: 1-3
FRAME SET(BLACK)
€ 940.50
1-4
4110139823Y0N
ref: 1-4
E18
FRAME SET (BLUE)
€ 1,906.50
1-5
411013982319A
ref: 1-5
E18
FRAME SET (RED)
€ 2.00
1-6
411013982333J
ref: 1-6
E18
FRAME SET (BLACK)
411013982333J
€ 1,906.50
2
0910610019
ref: 2
BOLT(10X33)
0910610019
€ 4.00
3
0916410010
ref: 3
WASHER
0916410010
€ 6.50
4
0831931105
ref: 4
NUT 10MM
€ 3.00
5
0155008203
ref: 5
BOLT
0155008203
€ 3.00
6
4192038A00019
ref: 6
PLATE,ENGINE MOUNT NO.1,L
4192038A00019
€ 11.00
7
0157008163
ref: 7
BOLT, UPPER
€ 2.00
8
4195038A11019
ref: 8
PLATE,ENGINE MOUNT NO.3,R
4195038A11019
€ 32.50
9
4196038A10019
ref: 9
PLATE,ENGINE MOUNT NO.3,L
4196038A10019
€ 26.50
10
0713008303
ref: 10
BOLT
0713008303
€ 3.00
11
0910608070
ref: 11
BOLT(8X30)
0910608070
€ 5.50
12
0925006004
ref: 12
CAP(OD:14.5)
0925006004
€ 1.50
13-1
4735038A0119A
ref: 13-1
COVER,FRAME HEAD,RIGHT
€ 269.00
13-2
4735038A01Y0N
ref: 13-2
COVER COMP,FRAME HEAD
4735038A01Y0N
€ 269.00
13-3
4735038A0133J
ref: 13-3
COVER,FRAME HEAD,R(BLACK)
€ 269.00
14-1
4736038A0119A
ref: 14-1
COVER,FRAME HEAD,LEFT
€ 267.00
14-2
4736038A01Y0N
ref: 14-2
COVER COMP,FRAME HEAD
€ 267.00
14-3
4736038A0133J
ref: 14-3
COVER,FRAME HEAD,LEFT
4736038A0133J
€ 267.00
15
0214206103
ref: 15
SCREW 6X10
0214206103
€ 2.00
16
0211204253
ref: 16
SCREW
0211204253
€ 2.00
17
3365207D00
ref: 17
PROTECTOR(80X80X2)
3365207D00
€ 4.50
18
6824104X50300
ref: 18
MOLDING
6824104X50300
€ 6.00
19
4735838A00
ref: 19
TAPE,FRAME HEAD COVER
4735838A00
€ 7.00
20
0936006015
ref: 20
UNION
0936006015
€ 3.00
21
0155006103
ref: 21
BOLT
0155006103
€ 2.50
22
0916806004
ref: 22
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
23
4154038A12
ref: 23
HOLDER,BATTERY
4154038A12
€ 103.50
24
0155010163
ref: 24
BOLT
€ 2.50
25
0155006163
ref: 25
BOLT
0155006163
€ 2.50
26
0932012031
ref: 26
CUSHION
0932012031
€ 3.00
27
0930108009
ref: 27
BUSH
0930108009
€ 6.50
10-1
4196038A1003F
ref: 10-1
MODEL N
PLATE COMP,ENGINE MOUNTING
€ 26.50
10-2
4196038A1019A
ref: 10-2
MODEL P/R
PLATE,ENGINE MOUNTING NO
€ 26.50
10-3
4196038A100CG
ref: 10-3
MODEL P
PLATE,ENGINE MOUNTING NO
€ 26.50
10-4
4196038A1033J
ref: 10-4
MODEL R/S
PLATE,MOUNTING NO.3,LEFT (BLACK)
€ 26.50
10-5
4196038A1020F
ref: 10-5
MODEL S
PLATE COMP,ENGINE MOUNTING
€ 26.50
10-6
4196038A10019
ref: 10-6
MODEL T
PLATE,ENGINE MOUNT NO.3,L
4196038A10019
€ 26.50
11-1
0910608063
ref: 11-1
MODEL N/P/R
BOLT 8X30
€ 3.00
11-2
0713008303
ref: 11-2
MODEL S/T
BOLT
0713008303
€ 3.00
12
0910608070
ref: 12
BOLT(8X30)
0910608070
€ 5.50
13
0925006004
ref: 13
CAP(OD:14.5)
0925006004
€ 1.50
14-1
4735038A0003F
ref: 14-1
MODEL N
COVER,FRAME HEAD,RIGHT
€ 269.00
14-2
4735038A0019A
ref: 14-2
MODEL N/P
COVER,FRAME HEAD,RIGHT
€ 269.00
14-3
4735038A0119A
ref: 14-3
MODEL R
COVER,FRAME HEAD,RIGHT
€ 269.00
14-4
4735038A000CG
ref: 14-4
MODEL P
COVER,FRAME HEAD,RIGHT
€ 269.00
14-5
4735038A0133J
ref: 14-5
MODEL R/S
COVER,FRAME HEAD,R(BLACK)
€ 269.00
14-6
4735038A0120F
ref: 14-6
MODEL S/T
COVER COMP,FRAME HEAD
4735038A0120F
€ 134.00
14-7
4735038A011ZV
ref: 14-7
MODEL T
COVER,FRAME HEAD,R(GREEN)
4735038A011ZV
€ 118.50
15-1
4736038A0003F
ref: 15-1
MODEL N
COVER COMP,FRAME HEAD
€ 267.00
15-2
4736038A0019A
ref: 15-2
MODEL N/P
COVER,FRAME HEAD,LEFT
€ 267.00
15-3
4736038A0119A
ref: 15-3
MODEL R
COVER,FRAME HEAD,LEFT
€ 267.00
15-4
4736038A000CG
ref: 15-4
MODEL P
COVER,FRAME HEAD,LEFT
€ 267.00
15-5
4736038A0133J
ref: 15-5
MODEL R/S
COVER,FRAME HEAD,LEFT
4736038A0133J
€ 267.00
15-6
4736038A0120F
ref: 15-6
MODEL S/T
COVER COMP,FRAME HEAD
4736038A0120F
€ 121.00
15-7
4736038A011ZV
ref: 15-7
MODEL T
COVER COMP,FRAME HEAD
€ 150.00
16-1
0214205104
ref: 16-1
MODEL N/P
SCREW 5X10
0214205104
€ 2.50
16-2
0214206103
ref: 16-2
MODEL R/S/T
SCREW 6X10
0214206103
€ 2.00
17-1
0211204254
ref: 17-1
MODEL N/P
SCREW
€ 2.00
17-2
0211204253
ref: 17-2
MODEL R/S/T
SCREW
0211204253
€ 2.00
18-1
3365238A10
ref: 18-1
MODEL N/P/R
PROTECTOR(20X90)X2
€ 4.50
18-2
3365207D00
ref: 18-2
MODEL S/T
PROTECTOR(80X80X2)
3365207D00
€ 4.50
19-1
6824138A10
ref: 19-1
MODEL N/P/R/S
MOLDING,FUEL TANK
6824138A10
€ 6.00
19-2
6824138A10
ref: 19-2
MODEL T
MOLDING,FUEL TANK
6824138A10
€ 6.00
20
4735838A00
ref: 20
TAPE,FRAME HEAD COVER
4735838A00
€ 7.00
21
0936006015
ref: 21
UNION
0936006015
€ 3.00
22-1
0151706105
ref: 22-1
MODEL N/P/R/S
BOLT
€ 2.50
22-2
0155006103
ref: 22-2
MODEL T
BOLT
0155006103
€ 2.50
23
0916806004
ref: 23
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
24
4154038A11
ref: 24
HOLDER,BATTERY
€ 103.50
25-1
0151710165
ref: 25-1
MODEL N/P
BOLT
0151710165
€ 2.50
25-2
0155010163
ref: 25-2
MODEL R/S/T
BOLT
€ 2.50
26-1
0151706164
ref: 26-1
MODEL N/P
BOLT
€ 2.50
26-2
0155006163
ref: 26-2
MODEL R/S/T
BOLT
0155006163
€ 2.50
27
0932012031
ref: 27
CUSHION
0932012031
€ 3.00
28-1
0918008001
ref: 28-1
MODEL N/P/R/S
SPACER (8.8X12X11)
0918008001
€ 2.00
28-2
0930108009
ref: 28-2
MODEL T
BUSH
0930108009
€ 6.50
