REAR COMBINATION LAMP (MODEL T)
VX800U 1991 (M) (E22)

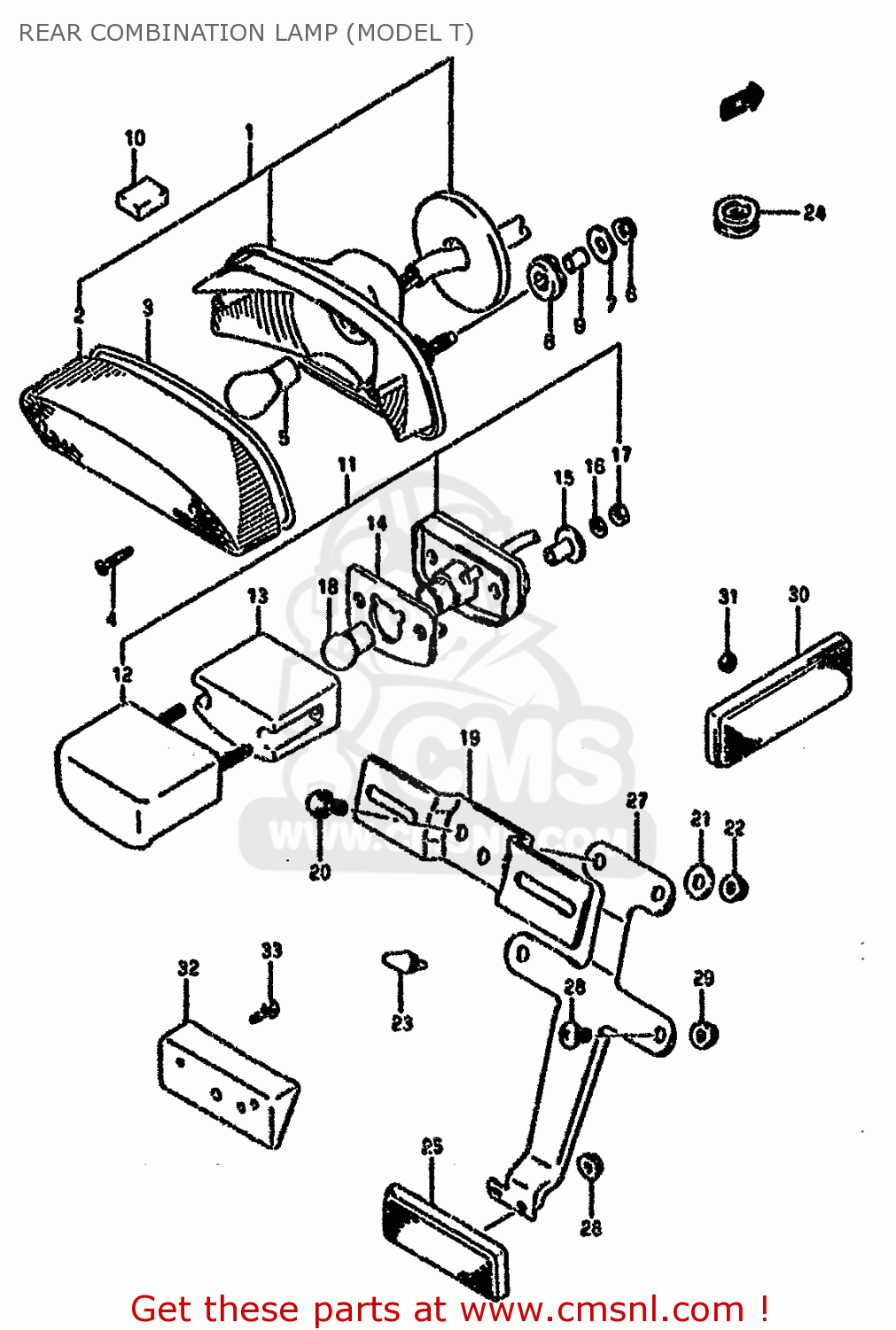

Rear combination lamp (model t) diagram VX800U 1991 (M) (E22)
REAR COMBINATION LAMP (MODEL T) VX800U 1991 (M) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3571045C00
ref: 1
LAMP ASSY,RR COMBINATION
€ 85.00
2
3571238B30
ref: 2
LENS
€ 30.00
3
3571338B30
ref: 3
GASKET (NAS)
€ 6.50
4
3572338B30
ref: 4
SCREW
€ 1.50
5
0947112083
ref: 5
BULB(12V21/5W)
€ 6.00
6
0831620063
ref: 6
NUT
€ 2.00
7
0916006077
ref: 7
WASHER(6.5X20X1.2)
€ 2.00
8
0932009018
ref: 8
CUSHION
€ 2.00
9
0918006114
ref: 9
SPACER (6.1X9X10)
€ 3.00
10
3573345C00
ref: 10
CUSHION,REAR COMBINATION LAMP
€ 4.00
11
3591045C20999
ref: 11
LAMP ASSY,LICENCE
€ 109.00
12
3591738A20
ref: 12
COVER,LICENSE LAMP
€ 121.50
13
3591238A20
ref: 13
LENS
€ 13.00
14
3591338A30
ref: 14
GASKET,LICENSE LAMP (NAS)
€ 2.00
15
3576624B30
ref: 15
SPACER
€ 2.00
16
0832101043
ref: 16
WASHER,LOCK
€ 2.00
17
0831000047
ref: 17
NUT
€ 2.00
18
0947112140
ref: 18
BULB(12V5W,BF150-40160A)
€ 4.00
19
3592717C00
ref: 19
BRACKET,LICENSE PLATE
€ 10.00
20
0155006163
ref: 20
BOLT
€ 2.50
21
0916006088
ref: 21
WASHER(6.5X20X1.6)
€ 2.00
22
0831620063
ref: 22
NUT
€ 2.00
23
0932106031
ref: 23
CUSHION
€ 4.00
24
0930807013
ref: 24
GROMMET
€ 3.50
25
3597000A21
ref: 25
E4,E18,E22
REFLECTOR ASSEMBLY,REAR
€ 22.00
26
0831610053
ref: 26
E18,E22,E25
NUT
€ 2.50
27
3597445C00
ref: 27
BRACKET,RR RR
€ 17.00
28
0214206123
ref: 28
SCREW 6X12
€ 2.00
29
0831620063
ref: 29
NUT
€ 2.00
30
3595043431
ref: 30
E18
REFLEX REFLECTOR,FR SIDE
€ 12.00
31
0831000053
ref: 31
E18
NUT
€ 2.50
32
3597712C00
ref: 32
E18,E22,E25
SPACER,RR RR
€ 8.00
33
0354104123
ref: 33
E18,E22,E25
SCREW
€ 1.50
30
3595043431
ref: 30
E18
REFLEX REFLECTOR,FR SIDE
€ 12.00
31-1
0831022055
ref: 31-1
MODEL P E18
NUT 5MM
€ 2.00
31-2
0831000053
ref: 31-2
MODEL R E18
NUT
€ 2.50
32
3597712C00
ref: 32
SPACER,RR RR
€ 8.00
33-1
0354104125
ref: 33-1
MODEL P
SCREW
€ 1.50
33-2
0354104123
ref: 33-2
MODEL R
SCREW
€ 1.50
34
0832221045
ref: 34
MODEL P
WASHER
€ 5.00
33
0354104123
ref: 33
E2,E15,E16,E17,E18,E
SCREW
€ 1.50
34
0832221045
ref: 34
E2,E15,E16,E17,E18,E
WASHER
€ 5.00
