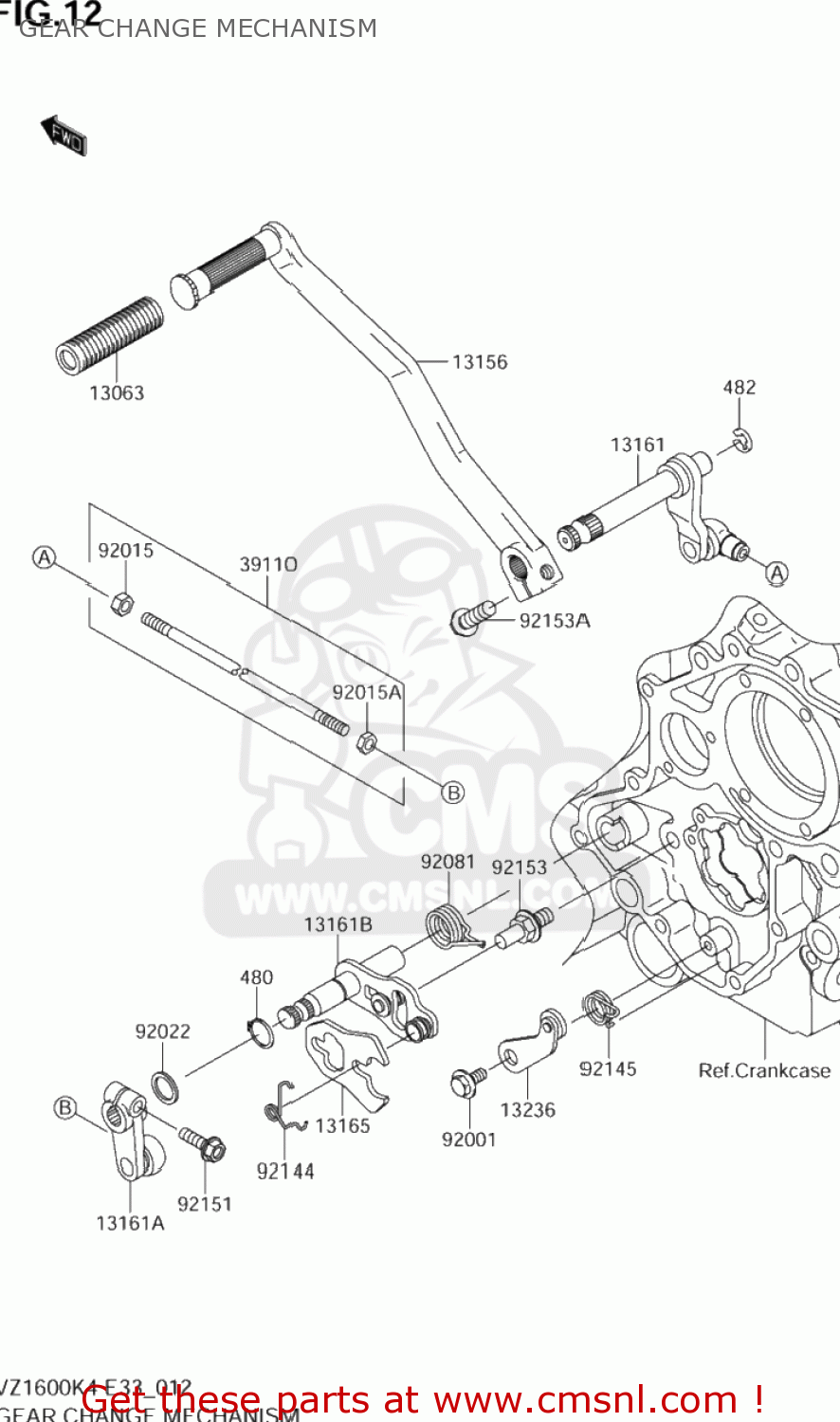

GEAR CHANGE MECHANISM

ref

part #

description

quantity

480

KK480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 1.50

482

KK482L0100
ref: 482

CIRCLIP-TYPE-E,10MM

€ 3.50

13063

KK13063002
ref: 13063

DAMPER,PEDAL

€ 4.50

13156

K131560013
ref: 13156

LEVER-CHANGE

€ 79.50

13161

K131610006
ref: 13161

LEVER-COMP-CHANGE SHAFT

€ 45.00

13161A

K131611253
ref: 13161A

LEVER-COMP-CHA

€ 51.00

13161B

K131611254
ref: 13161B

LEVER-COMP-CHA

€ 50.50

13165

K131651120
ref: 13165

PAWL

€ 8.00

13236

K132361126
ref: 13236

LEVER-COMP,POSITION

€ 7.00

39110

K391101119
ref: 39110

ROD-ASSY-TIE

€ 11.00

92001

K920011715
ref: 92001

BOLT,GEAR CHANGE LEVER

€ 7.00

92015

K920151443
ref: 92015

NUT,LH,THREAD

€ 2.50

92015A

K920151444
ref: 92015A

NUT,RH,THREAD

€ 2.50

92022

K920221224
ref: 92022

WASHER,13.2X20X0.5

€ 3.00

92081

K920811869
ref: 92081

SPRING,CHANGE PEDAL RETURN

€ 7.50

92144

K921441029
ref: 92144

SPRING

€ 5.50

92145

K921450008
ref: 92145

SPRING,RETURN

€ 4.50

92151

K921511226
ref: 92151

BOLT,6X20

€ 2.00

92153

K921531076
ref: 92153

BOLT

€ 5.50

92153A

K921531268
ref: 92153A

BOLT,8X25

€ 2.00

all assemblies
