FRAME COVER

DR-Z125 2004 (K4) USA (E03) DRZ125 DR Z125

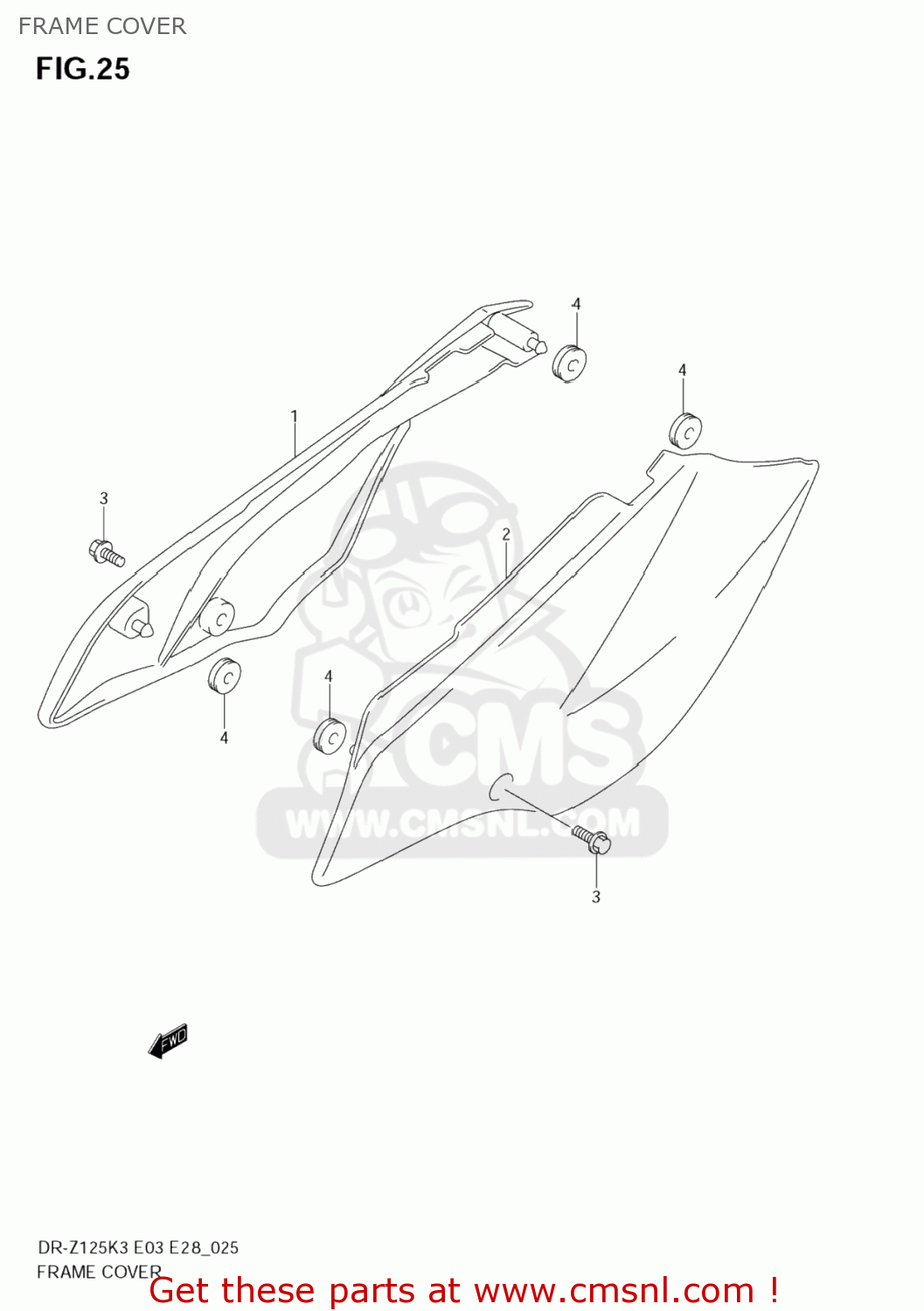

Frame cover diagram DR-Z125 2004 (K4) USA (E03) DRZ125 DR Z125

FRAME COVER DR-Z125 2004 (K4) USA (E03) DRZ125 DR Z125

FRAME COVER DR-Z125 2004 (K4) USA (E03) DRZ125 DR Z125

prices are in EUR

ref

part #

description

quantity

1-1

4711108G00YU1
ref: 1-1

COVER,FRAME,R(YELLOW)

€ 0.00

1-2

4711108G0030H
ref: 1-2

COVER, FRAME RH (WHITE)

€ 40.50

1-3

4711108GA030H
ref: 1-3

COVER,FRAME,R(WHITE)

€ 40.50

2-1

4721108G00YU1
ref: 2-1

COVER,FRAME,L(YELLOW)

€ 43.00

2-2

4721108G0030H
ref: 2-2

COVER, FRAME LH (WHITE)

€ 40.50

2-3

4721108GA030H
ref: 2-3

COVER,FRAME,L(WHITE)

€ 40.50

3

6316143E00
ref: 3

BOLT

€ 3.00

4

0932008028
ref: 4

CUSHION

€ 2.50
