SEAT (MODEL K3/K4)

DR-Z125 2005 (K5) USA (E03) DRZ125 DR Z125

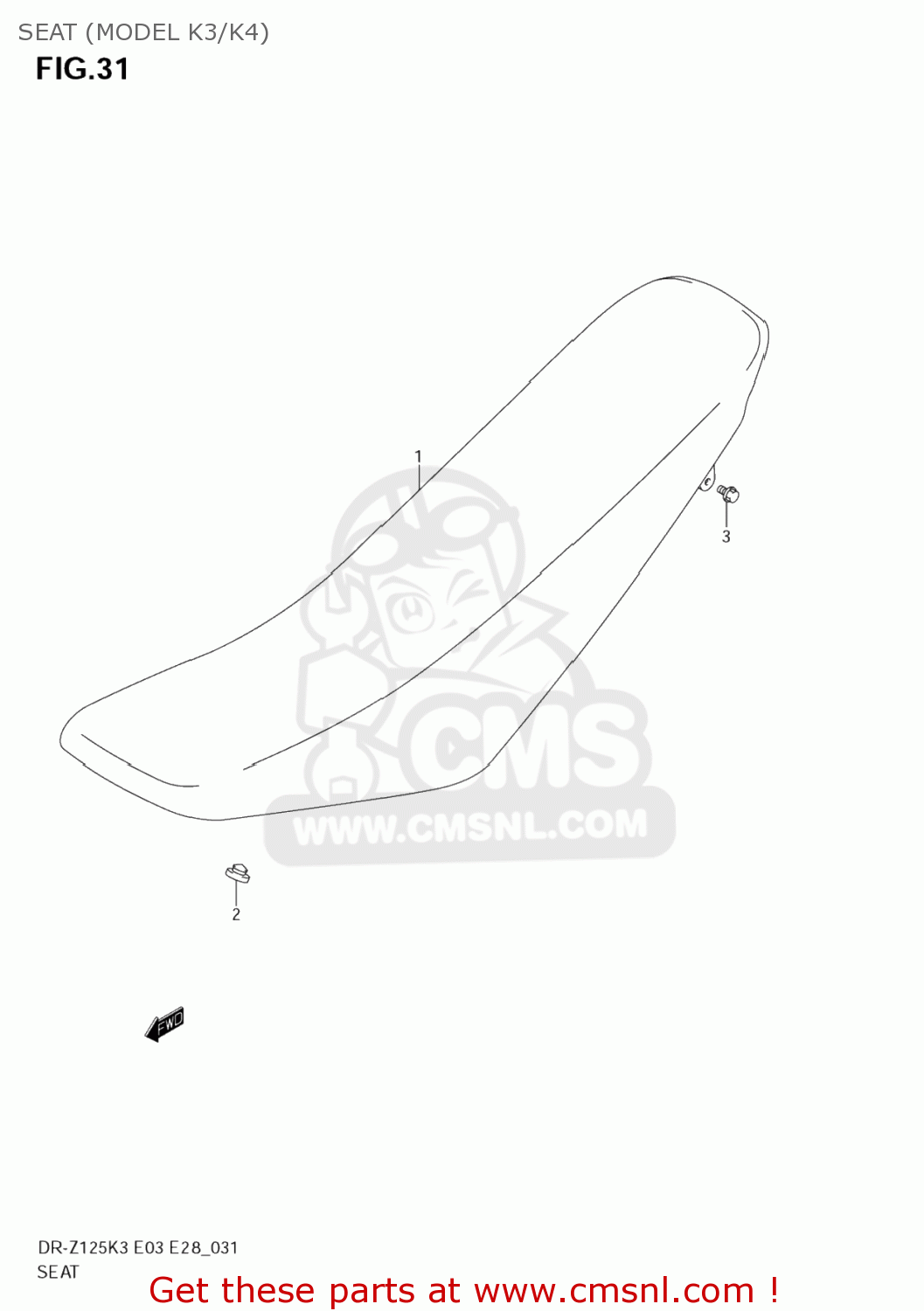

Seat (model k3/k4) diagram DR-Z125 2005 (K5) USA (E03) DRZ125 DR Z125

SEAT (MODEL K3/K4) DR-Z125 2005 (K5) USA (E03) DRZ125 DR Z125

SEAT (MODEL K3/K4) DR-Z125 2005 (K5) USA (E03) DRZ125 DR Z125

prices are in EUR

ref

part #

description

quantity

1

4510008G006BY
ref: 1

SEAT ASSY

€ 217.50

2

0932910001
ref: 2

CUSHION

€ 2.50

3

0155006103
ref: 3
01550-0610A

BOLT

€ 2.50
