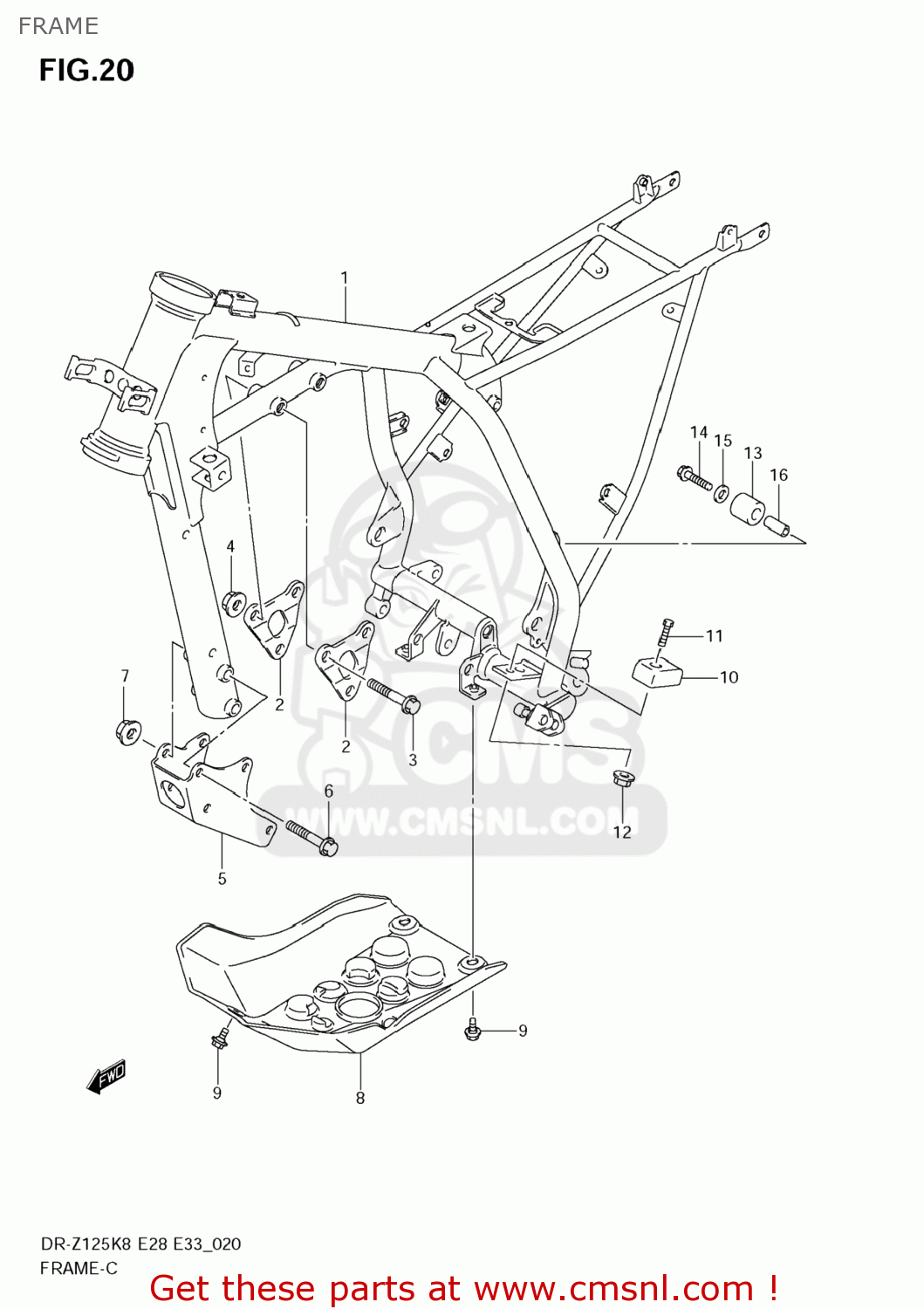

FRAME

ref

part #

description

quantity

1-1

4110008G10YU8
ref: 1-1

FRAME(GRAY)

€ 1,080.50

1-2

4110008G10YPT
ref: 1-2

FRAME

€ 1,080.50

2

4199108G00
ref: 2

PLATE,ENG MTG UPR

€ 6.00

3

0910308332
ref: 3

BOLT(8X53)

€ 3.50

4

083193108A
ref: 4

NUT

€ 2.50

5-1

4199208G00YU8
ref: 5-1

PLATE,ENG MTG LWR

€ 22.50

5-2

4199208G00YPT
ref: 5-2

PLATE,ENG MTG LWR

€ 19.00

6

0910308354
ref: 6

BOLT(8X65)

€ 4.00

7

083193108A
ref: 7

NUT

€ 2.50

8

4251108G00
ref: 8

PROTECTOR,ENGINE

€ 30.50

9

6316143E00
ref: 9

BOLT

€ 3.00

10

4391242A00
ref: 10

GUIDE,CH LENGTH CONTROL LWR

€ 13.50

11

0912806088
ref: 11

BOLT(6X16)

€ 2.50

12

083193106B
ref: 12

NUT

€ 2.50

13

4391113E10
ref: 13

ROLLER,CHAIN CONTROL UPR

€ 17.00

14

0910308178
ref: 14

BOLT(8X38)

€ 5.00

15

0821108201
ref: 15

WASHER

€ 2.00

16

0918008215
ref: 16

SPACER(8.6X12.2X26.5)

€ 4.00
