REAR CUSHION LEVER

DR-Z125L 2003 (K3) USA (E03) DRZ125L DR Z125L

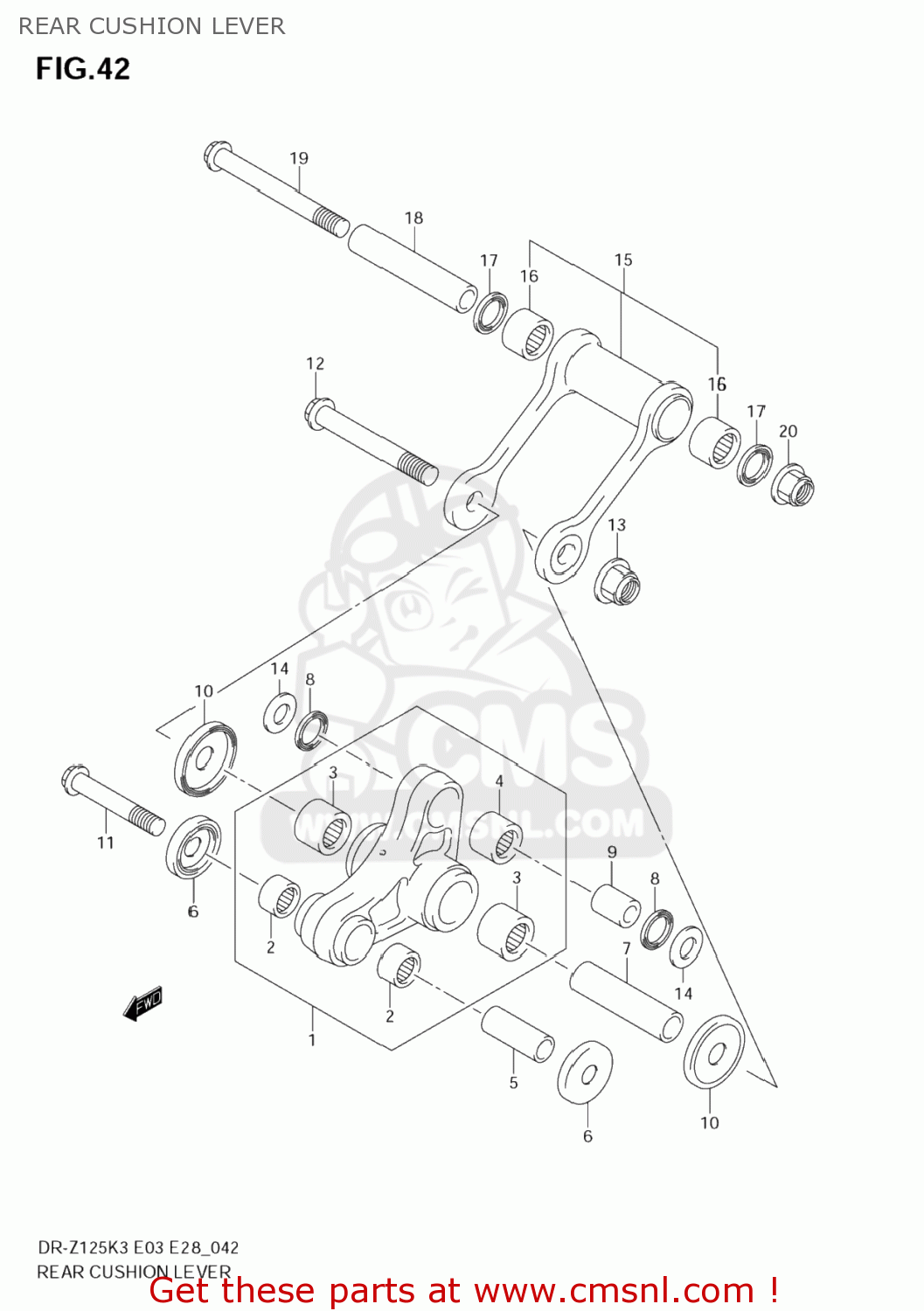

Rear cushion lever diagram DR-Z125L 2003 (K3) USA (E03) DRZ125L DR Z125L

REAR CUSHION LEVER DR-Z125L 2003 (K3) USA (E03) DRZ125L DR Z125L
REAR CUSHION LEVER DR-Z125L 2003 (K3) USA (E03) DRZ125L DR Z125L
REAR CUSHION LEVER DR-Z125L 2003 (K3) USA (E03) DRZ125L DR Z125L
prices are in EUR
ref
part #
description
quantity
1
6260008820
ref: 1
LEVER SET,RR CUSHION
€ 212.00
2
0926314027
ref: 2
BEARING(14X20X12)
0926314027
€ 11.00
3
0926317027
ref: 3
BEARING(17X24X20)
0926317027
€ 13.50
4
0926316033
ref: 4
BEARING(16X22X12)
0926316033
€ 19.00
5
6231702B40
ref: 5
SPACER,RR CUSHION LEVER FR
6231702B40
€ 8.50
6
6216203B00
ref: 6
SEAL,RR CUSHION LEVER FR DUST
6216203B00
€ 6.50
7
0918012121
ref: 7
SPACER(12X17X60)
0918012121
€ 12.00
8
0928416005
ref: 8
SEAL,OIL(16X22X2.5)
0928416005
€ 5.50
9
6268436E10
ref: 9
SPACER,RR CUSHION LEVER RR
6268436E10
€ 7.50
10
6216228E00
ref: 10
SEAL,RR CUSHION LEVER FR DUST
6216228E00
€ 6.50
11
6265802B40
ref: 11
BOLT,RR CUSHION LEVER FR
6265802B40
€ 4.50
12
6262108G00
ref: 12
BOLT,RR CUSHION LEVER CTR
6262108G00
€ 6.50
13
0831931128
ref: 13
08319-3112A
NUT 12MM
0831931128
€ 4.00
14
6268537E00
ref: 14
WASHER,THRUST LVR CUSHION RR
6268537E00
€ 3.00
15
6260008830
ref: 15
ROD SET,RR CUSHION
€ 96.50
16
0926317027
ref: 16
BEARING(17X24X20)
0926317027
€ 13.50
17
0928517001
ref: 17
SEAL,OIL(17X24X3)
0928517001
€ 3.50
18
6264608G00
ref: 18
SPACER,RR CUSHION ROD
6264608G00
€ 23.50
19
6264808G00
ref: 19
BOLT,RR CUSHION ROD
€ 9.00
20
0831931128
ref: 20
08319-3112A
NUT 12MM
0831931128
€ 4.00
