FRONT WHEEL (DR-Z125LK3/LK4/LK5/LK6/LK7)

DR-Z125L 2006 (K6) USA (E03) DRZ125L DR Z125L

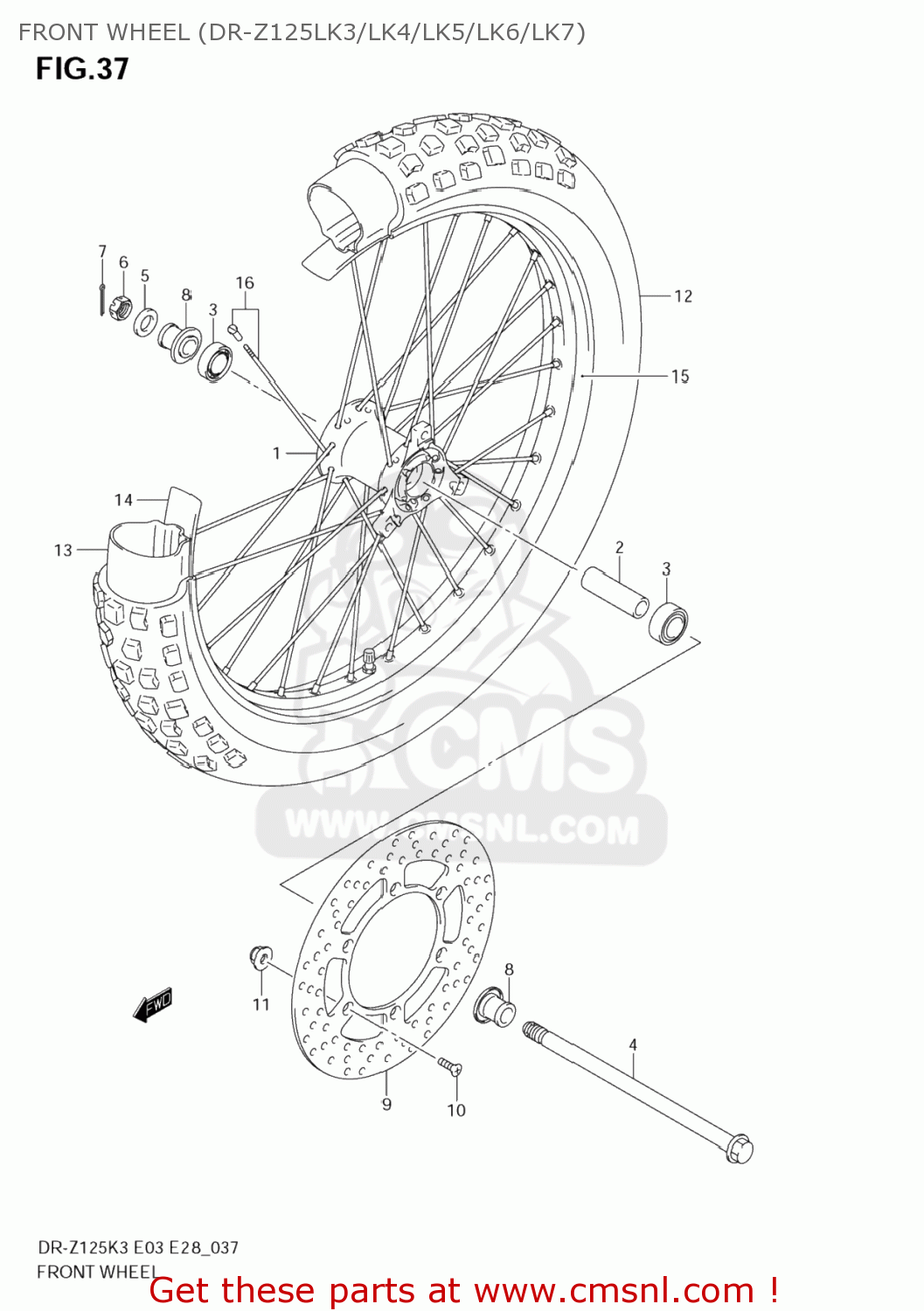

Front wheel (dr-z125lk3/lk4/lk5/lk6/lk7) diagram DR-Z125L 2006 (K6) USA (E03) DRZ125L DR Z125L

prices are in EUR

ref

part #

description

quantity

5411102B42
ref: 1

HUB,FR WHEEL

€ 151.00

5473102B40
ref: 2

SPACER,FR HUB BEARING

€ 7.00

0813362017
ref: 3

BEARING (12X32X10)

€ 15.00

5471102B40
ref: 4

AXLE,FR

€ 32.50

0916012082
ref: 5

WASHER(12.5X24X3.2)

€ 2.50

0831440123
ref: 6
08314-4012A

NUT,M12X1.25X1

€ 2.50

0411120208
ref: 7
04111-2020A

PIN 20X20

€ 1.50

5474002B40
ref: 8

SPACER,FR AXLE

€ 9.50

5922108G00
ref: 9

DISC,FR BRAKE

€ 132.50

0912606009
ref: 10

SCREW(6X22)

€ 2.00

0831931067
ref: 11

NUT

€ 2.50

5511008G10
ref: 12

TIRE,FR

€ 56.00

5520008G10
ref: 13

TUBE ASSY,WHEEL INNER

€ 21.00

5526108G10
ref: 14

PROTECTOR,WHL INR TUBE

€ 4.50

15-1

5531108G10
ref: 15-1

RIM,FR WHEEL(19X1.40)

€ 0.00

15-2

5531108G30
ref: 15-2

RIM,FR WHEEL(19X1.40)

€ 164.00

16-1

5532008G10
ref: 16-1

SPOKE SET,FR WHEEL

€ 0.00

16-2

5532008G30
ref: 16-2

SPOKE SET,FR WHEEL

€ 30.00
