CRANKCASE

DR-Z125L 2009 (K9) USA (E03) DRZ125L DR Z125L

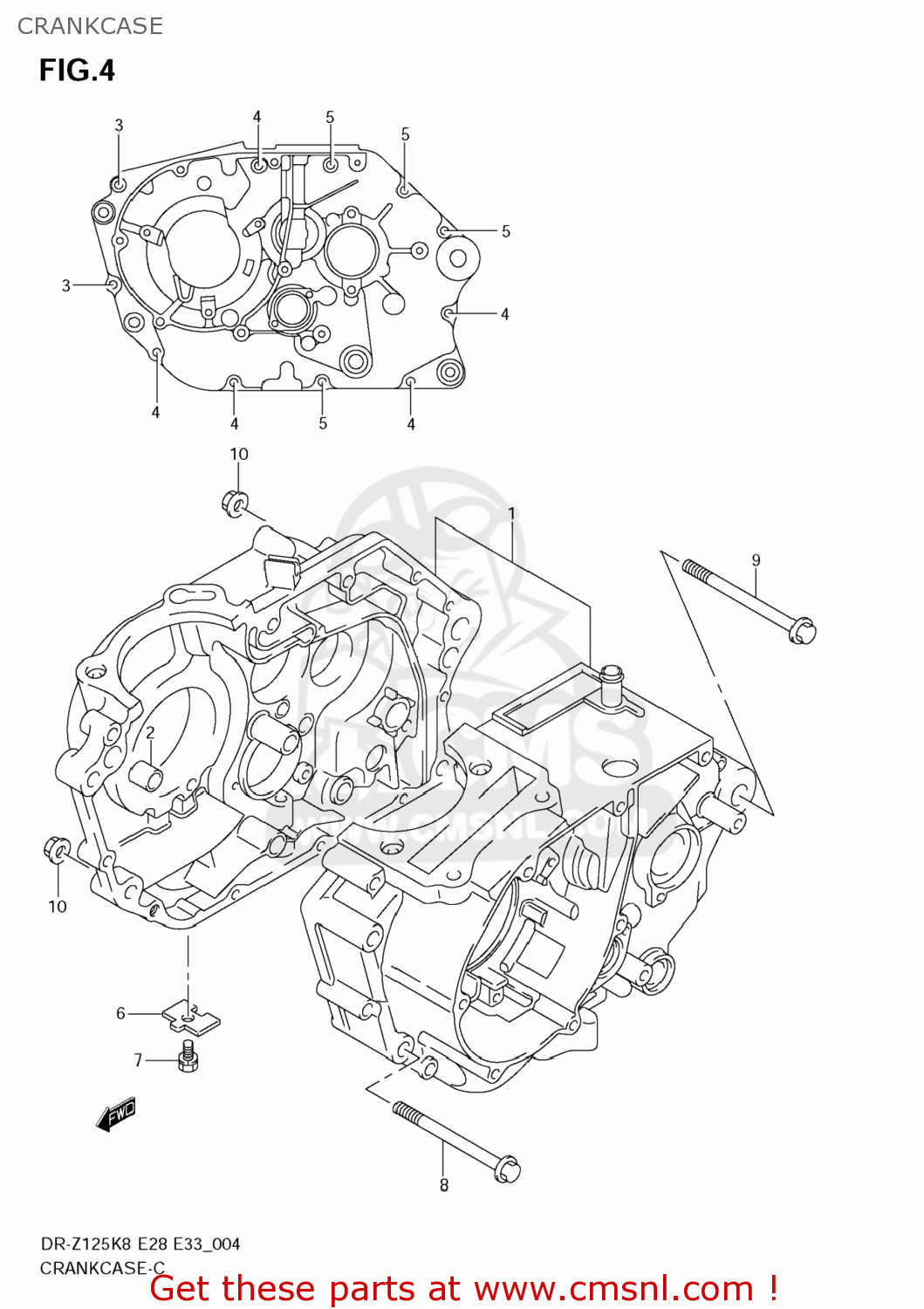

Crankcase diagram DR-Z125L 2009 (K9) USA (E03) DRZ125L DR Z125L

CRANKCASE DR-Z125L 2009 (K9) USA (E03) DRZ125L DR Z125L

CRANKCASE DR-Z125L 2009 (K9) USA (E03) DRZ125L DR Z125L

prices are in EUR

ref

part #

description

quantity

1

1130008G20
ref: 1

CRANKCASE ASSY

€ 461.50

2

0421113189
ref: 2

PIN

€ 2.50

3

015470645A
ref: 3

BOLT

€ 2.50

4

015470660A
ref: 4

BOLT

€ 2.50

5

015470675A
ref: 5

BOLT

€ 2.00

6

1131905200
ref: 6

PLATE,OIL GALLERY PLUG

€ 2.50

7

015000610A
ref: 7

BOLT

€ 2.00

8

0910308016
ref: 8

BOLT(8X80)

€ 8.00

9

0910308010
ref: 9

BOLT(8X88)

€ 55.50

10

083193108A
ref: 10

NUT

€ 2.50
