FRONT FORK DAMPER (DR-Z125L4 E28)

DR-Z125L 2014 (L4) USA (E03) DRZ125L DR Z125L

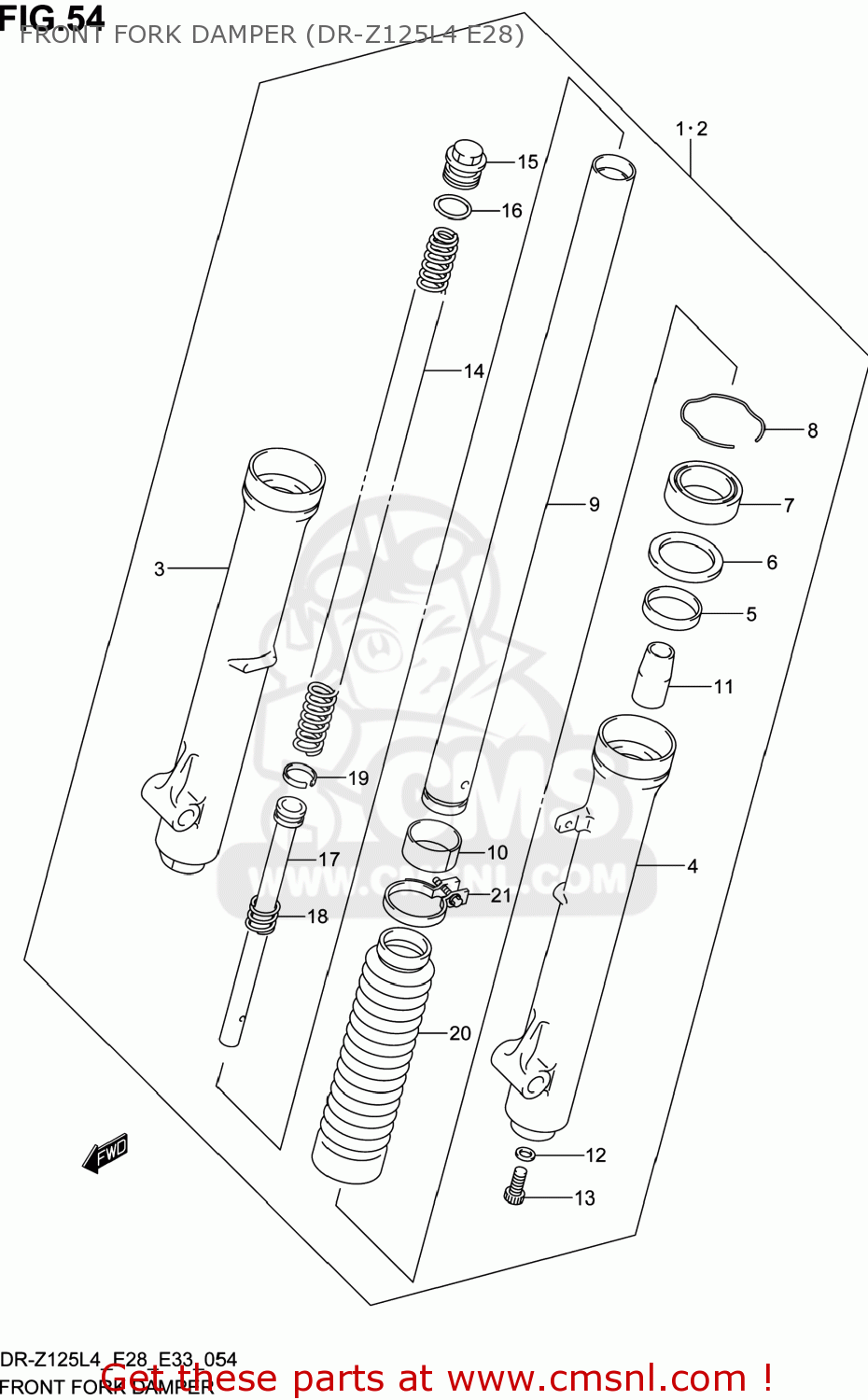

Front fork damper (dr-z125l4 e28) diagram DR-Z125L 2014 (L4) USA (E03) DRZ125L DR Z125L

FRONT FORK DAMPER (DR-Z125L4 E28) DR-Z125L 2014 (L4) USA (E03) DRZ125L DR Z125L
FRONT FORK DAMPER (DR-Z125L4 E28) DR-Z125L 2014 (L4) USA (E03) DRZ125L DR Z125L
FRONT FORK DAMPER (DR-Z125L4 E28) DR-Z125L 2014 (L4) USA (E03) DRZ125L DR Z125L
prices are in EUR
ref
part #
description
quantity
1
5110308G40
ref: 1
DAMPER ASSY,FR FORK,R
€ 351.50
2
5110408G40
ref: 2
DAMPER ASSY,FR FORK,L
€ 351.50
3
5113008G00
ref: 3
TUBE,OUTER,R
€ 180.00
4
5114008G00
ref: 4
TUBE,OUTER,L
€ 180.00
5
5115243EC0
ref: 5
BUSH,GUIDE
€ 9.50
6
5116843EC0
ref: 6
SPACER,SEAL
€ 6.50
7
5115348420
ref: 7
SEAL,OIL
5115348420
€ 11.00
8
5115648730
ref: 8
SEAL,OIL STOPPER RING
5115648730
€ 2.50
9
5111008G00
ref: 9
TUBE,INNER
€ 151.00
10
5112108G00
ref: 10
BUSH,SLIDE
€ 13.00
11
5119548000
ref: 11
PIECE,OIL LOCK
5119548000
€ 8.50
12
5114836011
ref: 12
GASKET (NAS)
5114836011
€ 4.00
13
5114748130
ref: 13
BOLT(8X27)
5114748130
€ 3.50
14
5117108G00
ref: 14
SPRING,FR
€ 31.00
15
5135148000
ref: 15
BOLT
5135148000
€ 12.00
16
5118125030
ref: 16
O RING
5118125030
€ 3.00
17
5114608G00
ref: 17
CYLINDER
€ 28.50
18
5117708G00
ref: 18
SPRING,REBOUND
€ 6.00
19
5119648000
ref: 19
RING
€ 5.50
20
5157108G40
ref: 20
BOOT
€ 27.50
21
5157508G00
ref: 21
BAND
€ 5.50
