LH HANDLE LEVER

DR-Z250 2002 (K2) USA (E03) DRZ250 DR Z250

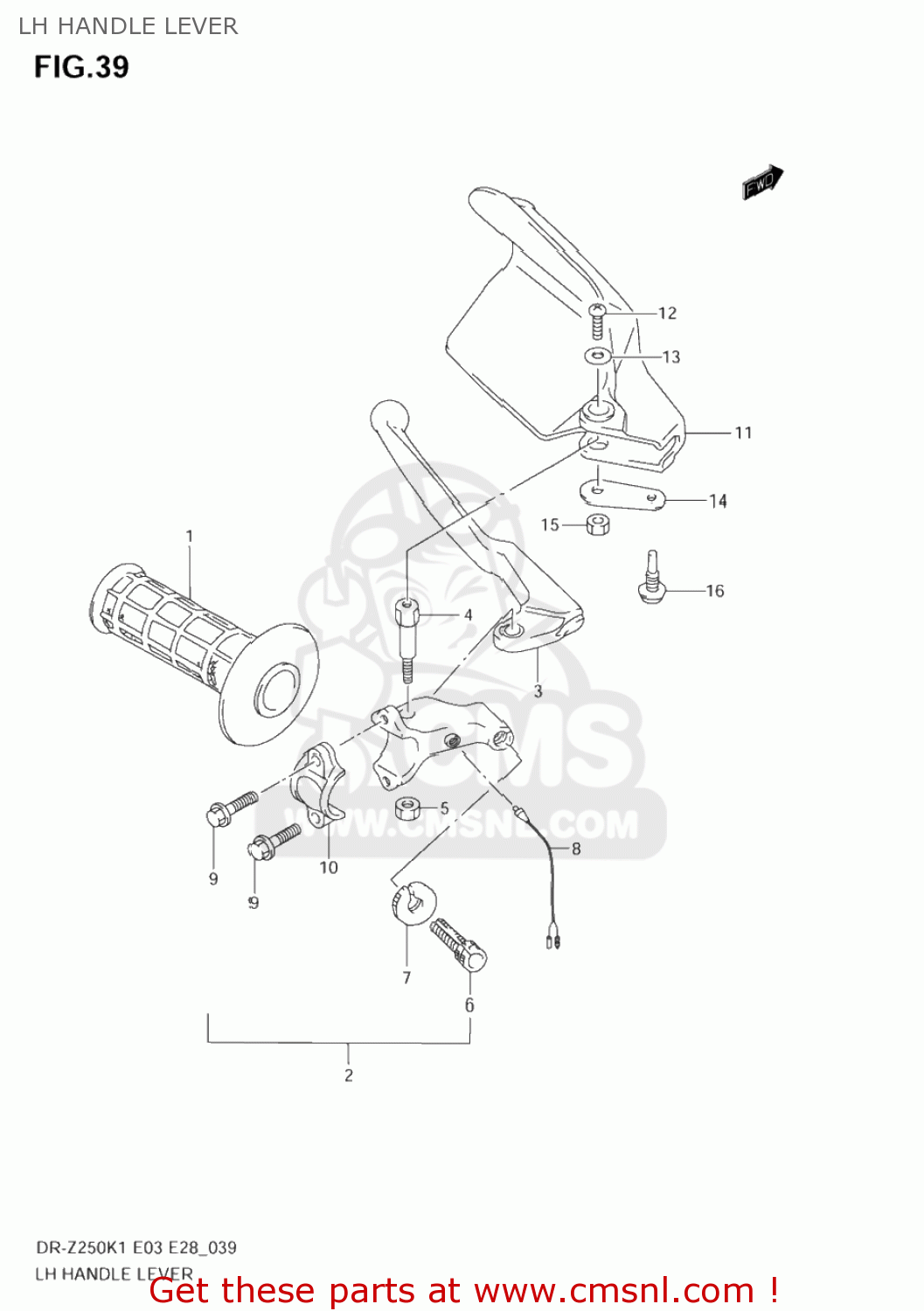

Lh handle lever diagram DR-Z250 2002 (K2) USA (E03) DRZ250 DR Z250

prices are in EUR

ref

part #

description

quantity

5721127C00
ref: 1

GRIP,L

€ 11.00

5750013EC0
ref: 2
57500-13EC2

LEVER ASSY, CLUTCH

€ 30.50

5762113E00
ref: 3

LEVER,CLUTCH

€ 17.00

5743113E00
ref: 4

BOLT,LEVER PIVOT

€ 12.00

0831921068
ref: 5
08319-2106A

NUT 6MM

€ 2.00

5744145C00
ref: 6

ADJUSTER,WIRE

€ 8.50

5744245C00
ref: 7

NUT,LOCK

€ 7.50

5756013E00
ref: 8
57560-13E02

SWITCH ASSEMBLY,CLUTCH

€ 15.00

5751329F10
ref: 9

BOLT,BRACKET

€ 4.50

5751228C00
ref: 10

BRACKET,CLUTCH LEVER HOLDER

€ 13.00

11-1

5754105D01019
ref: 11-1

COVER,KNUCKLE,L

€ 29.50

11-2

5754105D01YU1
ref: 11-2

COVER,KNUCKLE,L(YELLOW)

€ 23.00

0214205107
ref: 12

SCREW

€ 2.50

0916005043
ref: 13

WASHER(5.5X16X1.2)

€ 2.50

5754205D00
ref: 14

PLATE,KNUCKLE COVER,L LWR

€ 3.50

0831921068
ref: 15
08319-2106A

NUT 6MM

€ 2.00

0912506091
ref: 16

SCREW(6X35)

€ 2.50
