GASKET SET

DR-Z400SM 2005 (K5) USA (E03) DRZ400SM DR Z400SM

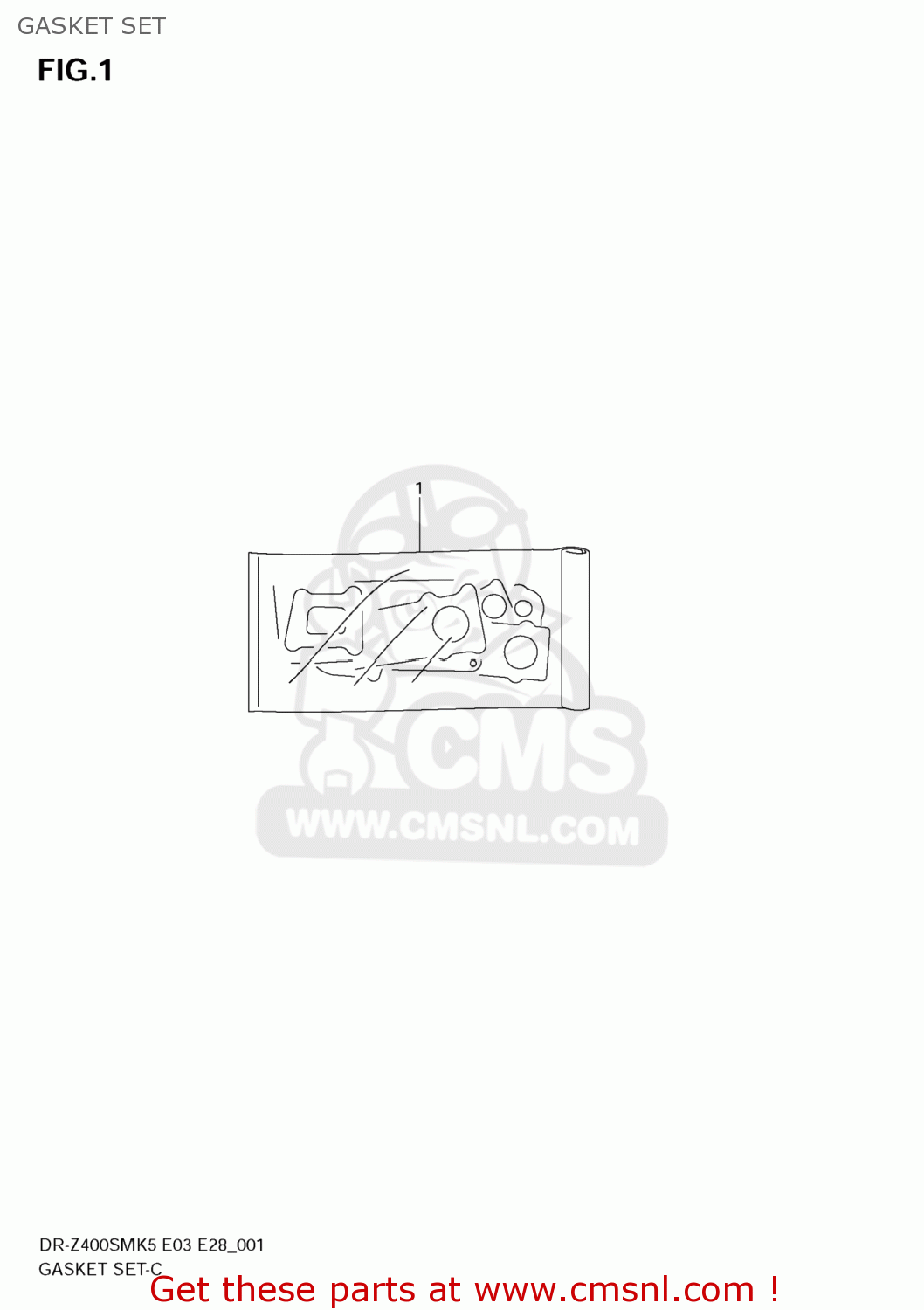

Gasket set diagram DR-Z400SM 2005 (K5) USA (E03) DRZ400SM DR Z400SM

prices are in EUR

ref

part #

description

quantity

1140129882
ref: 1

GASKET SET (NAS)

€ 114.50

1114129F01
ref: 2

GASKET,CYLINDER HEAD (NAS)

€ 34.00

1117329F00
ref: 3

GASKET,CYL HEAD COVER (NAS)

€ 24.00

1124129F11
ref: 4

GASKET,CYLINDER (NAS)

€ 19.00

1148229F00
ref: 5

GASKET,CLUTCH COVER (NAS)

€ 17.50

1148329F00
ref: 6

GASKET,MAGNETO COVER (NAS)

€ 11.00

1148429F00
ref: 7

O RING,CLUTCH COVER OUTER

€ 17.50

1283724A10
ref: 8

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

1418129E02
ref: 9

GASKET,EXHAUST PIPE

€ 14.00

0916111008
ref: 10

WASHER(10.6X25.5X2.3)

€ 4.50

0928011005
ref: 11

O RING(D:2.4,ID:11)

€ 4.50

0928013004
ref: 12

O RING(D:1.9,ID:13)

€ 2.50

0928017003
ref: 13

O RING(D:3.1,ID:16.8)

€ 2.00

0928033004
ref: 14

O RING(D:3.1,ID:32.7)

€ 2.50

0928054001
ref: 15

O RING(D:2.4,ID:52.6)

€ 4.00

0928071004
ref: 16

O RING(D:2.6,ID:69.6)

€ 19.00

GASKET SET

all assemblies
