STEERING STEM (MODEL K7)

RM-Z250 2009 (K9) USA (E03) RMZ250 RM Z250

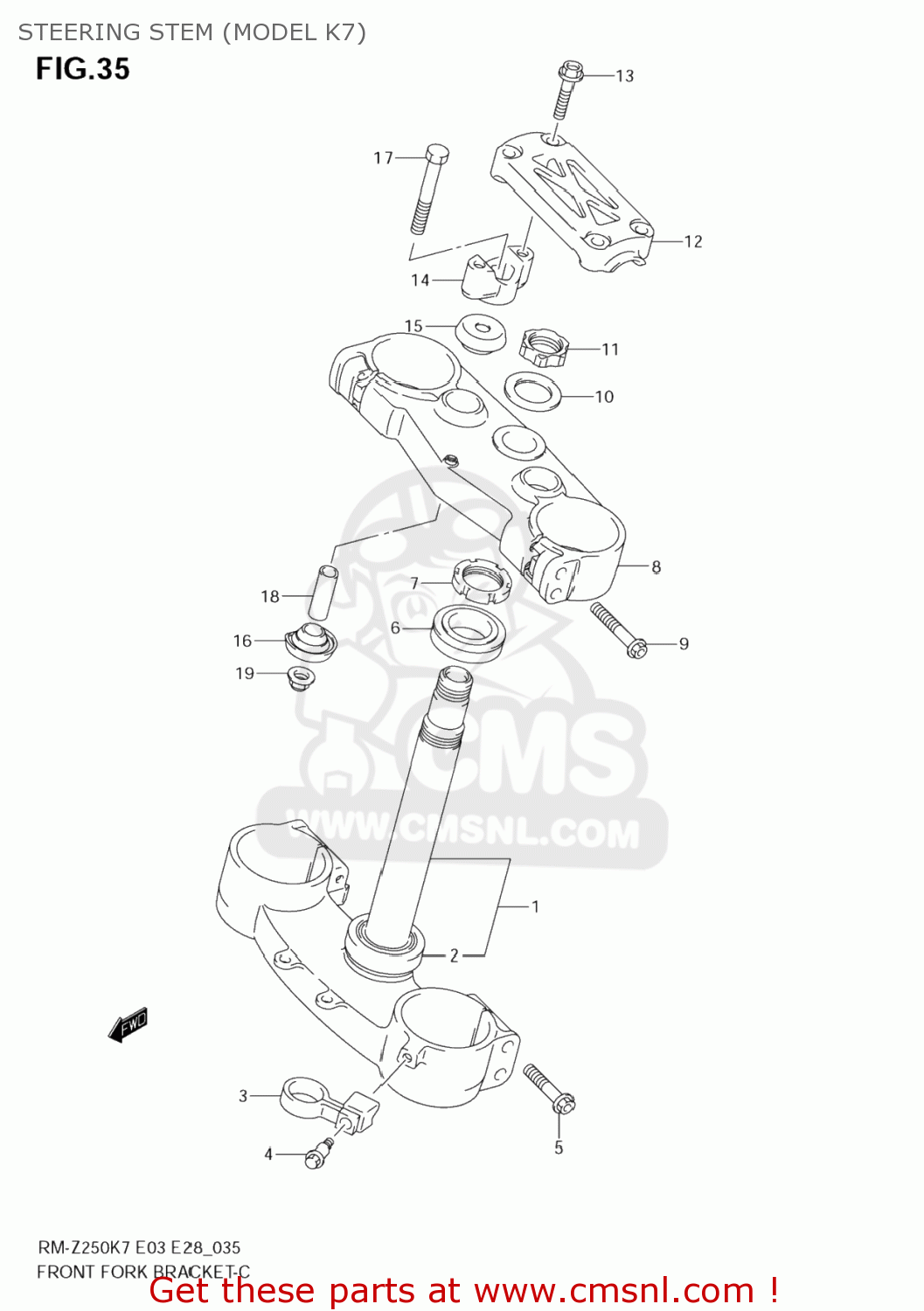

Steering stem (model k7) diagram RM-Z250 2009 (K9) USA (E03) RMZ250 RM Z250

prices are in EUR

ref

part #

description

quantity

5141010H00
ref: 1

STEM,STEERING

€ 520.00

0926530014
ref: 2

BEARING(30X52X16)

€ 49.50

5862137F80
ref: 3

GUIDE,FR BRAKE HOSE

€ 10.50

0911106087
ref: 4

BOLT(6X20.5)

€ 2.50

5132837F80
ref: 5

BOLT

€ 5.00

0926530014
ref: 6

BEARING(30X52X16)

€ 49.50

5163137F00
ref: 7

NUT,STEERING

€ 18.50

5131010H00
ref: 8

HEAD,STEERING STEM

€ 239.00

5132837F80
ref: 9

BOLT

€ 5.00

5135629E00
ref: 10

WASHER,STEM HEAD

€ 8.00

5135337F70
ref: 11

NUT,STEM HEAD

€ 14.50

5621135G00
ref: 12

HOLDER,HANDLE

€ 26.00

5132137F90
ref: 13

BOLT

€ 4.00

5622135G00
ref: 14

HOLDER,HANDLE LWR

€ 28.50

5624142AE0
ref: 15

CUSHION,RUBBER

€ 20.00

5624228C60
ref: 16

CUSHION,RUBBER UNDER

€ 22.50

5632135G00
ref: 17

BOLT

€ 3.50

5624342A00
ref: 18

SPACER

€ 6.00

0831931107
ref: 19

NUT

€ 3.00

STEERING STEM (MODEL K7)
