REAR CALIPER

RM-Z250 2011 (L1) USA (E03) RMZ250 RM Z250

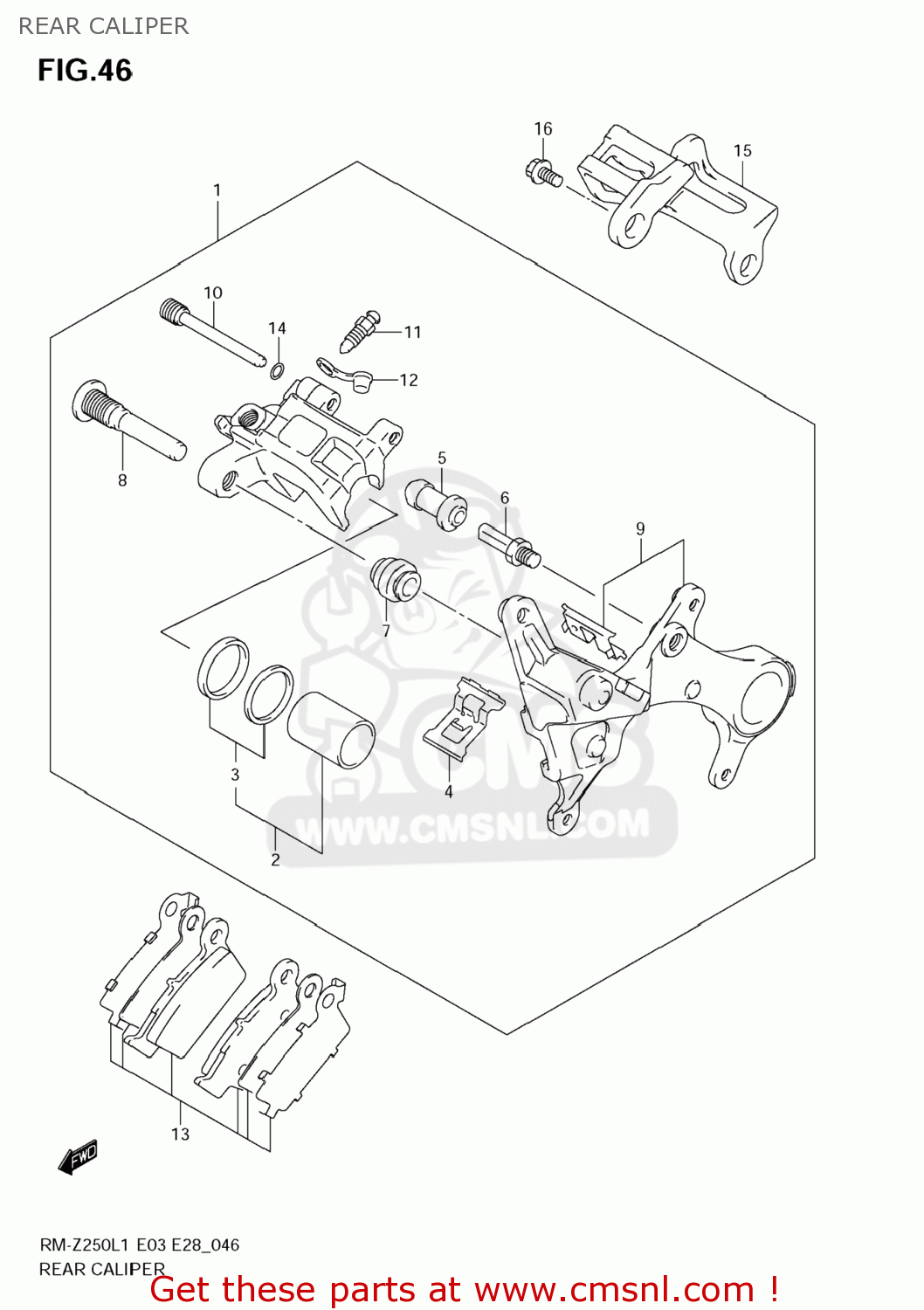

Rear caliper diagram RM-Z250 2011 (L1) USA (E03) RMZ250 RM Z250

prices are in EUR

ref

part #

description

quantity

6910028H01999
ref: 1

CALIPER ASSY,RR

€ 223.50

6910014820
ref: 2

PISTON SET

€ 39.50

6910021840
ref: 3

SEAL SET,PISTON

€ 14.50

6931535G00
ref: 4

SPRING,PAD

€ 6.50

5938613A00
ref: 5

BOOT

€ 6.50

5938214500
ref: 6

PIN,BOLT

€ 7.50

5930314500
ref: 7

BOOT

€ 5.50

5930536E00
ref: 8

PIN,BOLT

€ 12.50

6935028H00
ref: 9

BRACKET,RR CALIPER

€ 88.00

6934537F00
ref: 10

PIN,HANGER

€ 13.50

5912101A00
ref: 11

BLEEDER

€ 8.50

5912201A00
ref: 12

CAP,BLEEDER

€ 4.50

6910028820
ref: 13

PAD & SHIM SET (NAS)

€ 54.00

5914537F00
ref: 14

RING,STOPPER

€ 3.50

6972537F01
ref: 15

GUARD,RR CALIPER

€ 18.50

0911606197
ref: 16

BOLT(6X12)

€ 2.50

REAR CALIPER

all assemblies
