CYLINDER

RM-Z250 2013 (L3) USA (E03) RMZ250 RM Z250

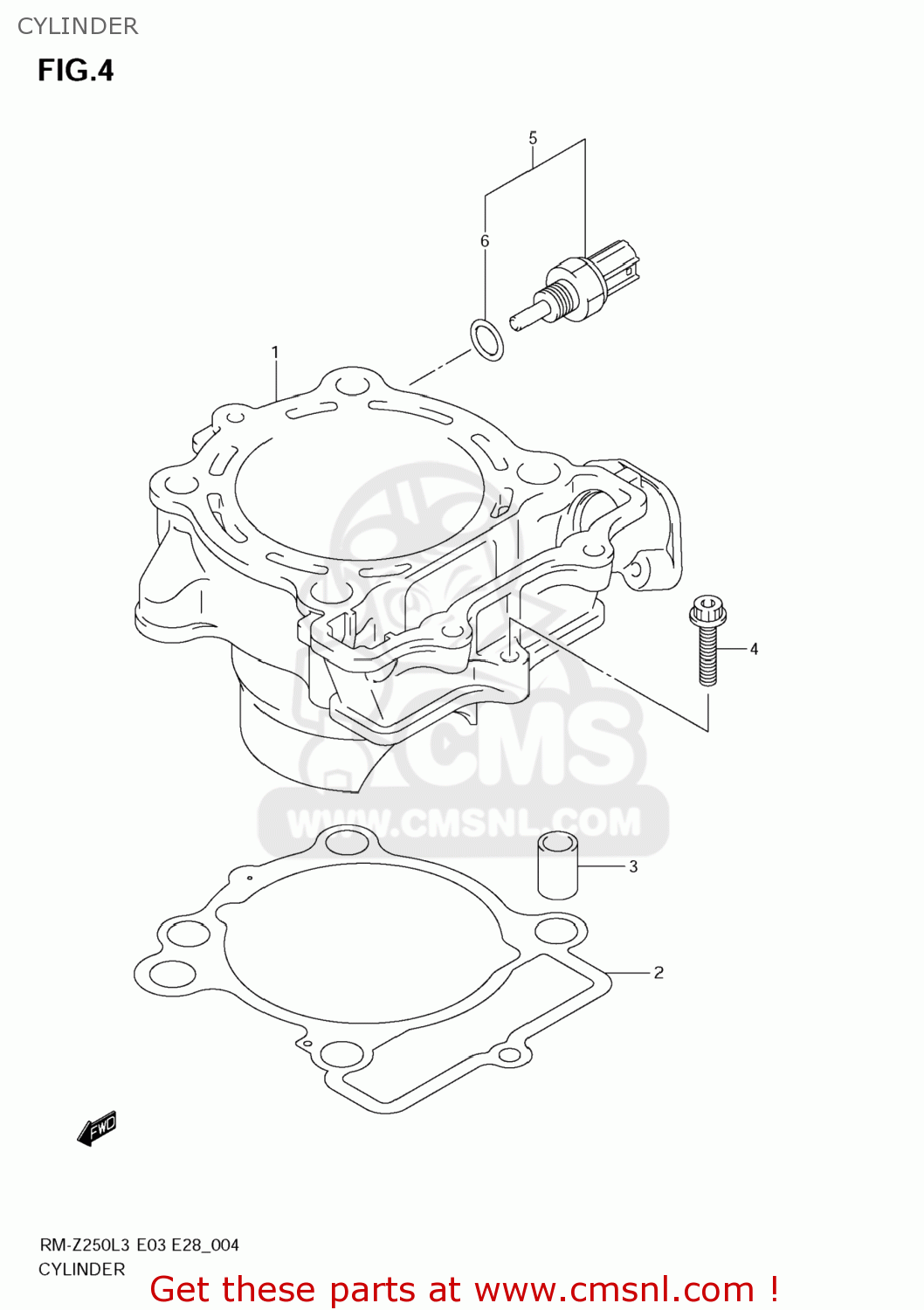

Cylinder diagram RM-Z250 2013 (L3) USA (E03) RMZ250 RM Z250

CYLINDER RM-Z250 2013 (L3) USA (E03) RMZ250 RM Z250

CYLINDER RM-Z250 2013 (L3) USA (E03) RMZ250 RM Z250

prices are in EUR

ref

part #

description

quantity

1

1121149H100F0
ref: 1

CYLINDER

€ 678.00

2

1124149H20
ref: 2

GASKET,CYLINDER (NAS)

€ 11.50

3

0421113189
ref: 3

PIN

€ 2.50

4

071200625A
ref: 4

BOLT

€ 2.50

5

1365014G00
ref: 5

SENSOR,WATER TEMP

€ 34.50

6

1365514G00
ref: 6

O RING

€ 6.00
